Quality High-Volume Automatic Spray Coating Line for Wood Door Manufacturing - Precision Finish Solution factory

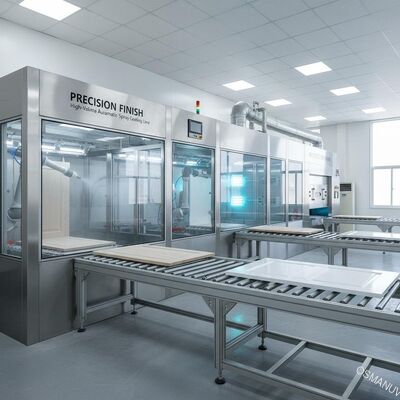

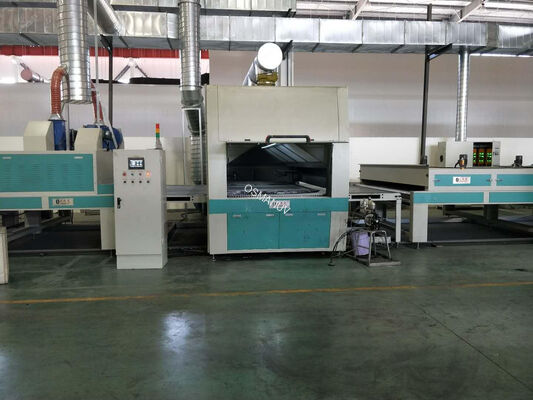

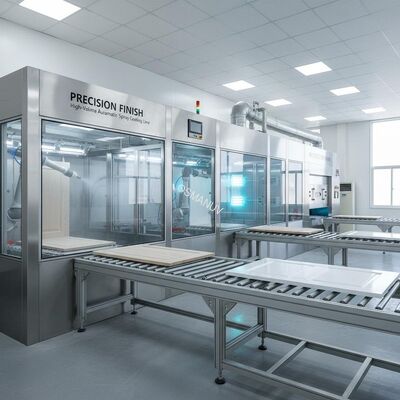

High-Volume Automatic Spray Coating Line for Wood Door Manufacturing - Precision Finish Solution

Name: High-Volume Automatic Spray Coating Line for Wood Door Manufacturing - Precision Finish Solution
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-PT-1320
Price: 4,500.00 USD
Availability: InStock

High-Volume Automatic Spray Coating Line for Wood Door Manufacturing - Precision Finish Solution This fully automatic spray coating line is designed for high-volume production of wood doors, ensuring uniform surface finishing with precise paint application and efficient curing. Keywords: wood door ...

Place of Origin:China

Brand Name:Osmanuv

Certification:ISO9001

Model Number:OSM-PT-1320

Minimum Order Quantity:1 set

Price:Negotiation

Product Custom Attributes

Highlight

automatic spray coating machine for wood doors

high-volume spray coating line

precision finish spray coating machine

Electric Box:

Independent Electric Box

Coating Qty:

10~16g/sqm

Burner:

Original Riello Burner; 2 Sets

Feature:

Efficient

Slitting Speed:

50-350m/min

Material:

Natural Rubber,PVC

Delivery Pile Height:

1100 Mm

Dry Way:

UV Lamp

Product Description

High-Volume Automatic Spray Coating Line for Wood Door Manufacturing - Precision Finish Solution

This fully automatic spray coating line is designed for high-volume production of wood doors, ensuring uniform surface finishing with precise paint application and efficient curing.

Keywords: wood door spray coating line, automatic painting system, furniture door finishing, customizable spray equipment

Production Line Composition

Automatic loading system
Conveyor belt
Pre-treatment cleaning station

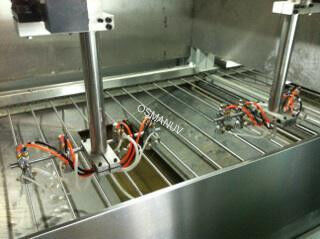

Robotic spray guns
UV curing tunnel
Drying oven
Quality inspection zone
Unloading system

Technical Parameters

Parameter	Specification
Max. Door Size	1200mm x 2500mm (customizable)
Line Speed	2-8 m/min (adjustable)
Spray Method	Electrostatic/Robotic (customizable)
Drying System	UV/IR Hybrid (customizable)
Power Supply	380V/50Hz/3Phase (configurable)
Control System	PLC + Touchscreen HMI
Paint Usage Efficiency	>95% (with electrostatic)

Application

Surface coating for interior/exterior wood doors, cabinet doors, and architectural woodwork.

Customization

Fully customizable for door dimensions, paint type, drying method, and automation level.

Features

Robotic path programming for complex designs
Paint recycling system reducing waste
Energy-efficient drying technology
Real-time thickness monitoring

Support and Services

Installation supervision, operator training, 24/7 technical support, annual maintenance contracts.

Packing and Shipping

Modular design for easy shipping, weather-proof packaging, FOB/CIF terms available.

Frequently Asked Questions

Q: Can it handle different door styles?

A: Yes, the system is customizable for panel doors, flush doors, and carved designs.
