Quality Spraying Coating Line with Instant Drying for Laminate Panel Finishing factory

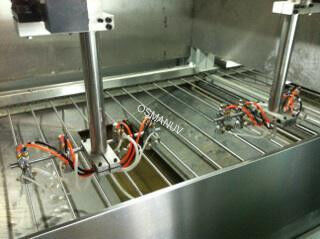

Spraying Coating Line with Instant Drying for Laminate Panel Finishing

Name: Spraying Coating Line with Instant Drying for Laminate Panel Finishing
Brand: Dongguan Osmanuv Machinery Equipment Co., Ltd
SKU: OSM-PT-1320
Price: 4,500.00 USD
Availability: InStock

Spraying Coating Line with Instant Drying for Laminate Panel Finishing Production Line Overview This advanced UV spray coating line is engineered for ultra-high productivity and superior hardened finish. It combines airless spray application efficiency with instant UV light curing technology, ...

Place of Origin:CHINA

Brand Name:OSMANUV

Certification:ISO9001

Model Number:OSM-PT-1320

Minimum Order Quantity:1 set

Price:Negotiation

Product Custom Attributes

Highlight

UV paint spraying machine for laminate panels

instant cure coating machine for MDF

spray coating machine with UV curing

Floor Space:

118 Square Meters

Power(w):

95KW

Condition:

New

Warranty:

1 Year

Dimension(l*w*h):

40000*2950*2300mm

Single Class Capacity:

1.5 Piece/min

Processing Thickness:

3-200mm

Minimum Processing Length:

1000mm

Product Description

Spraying Coating Line with Instant Drying for Laminate Panel Finishing

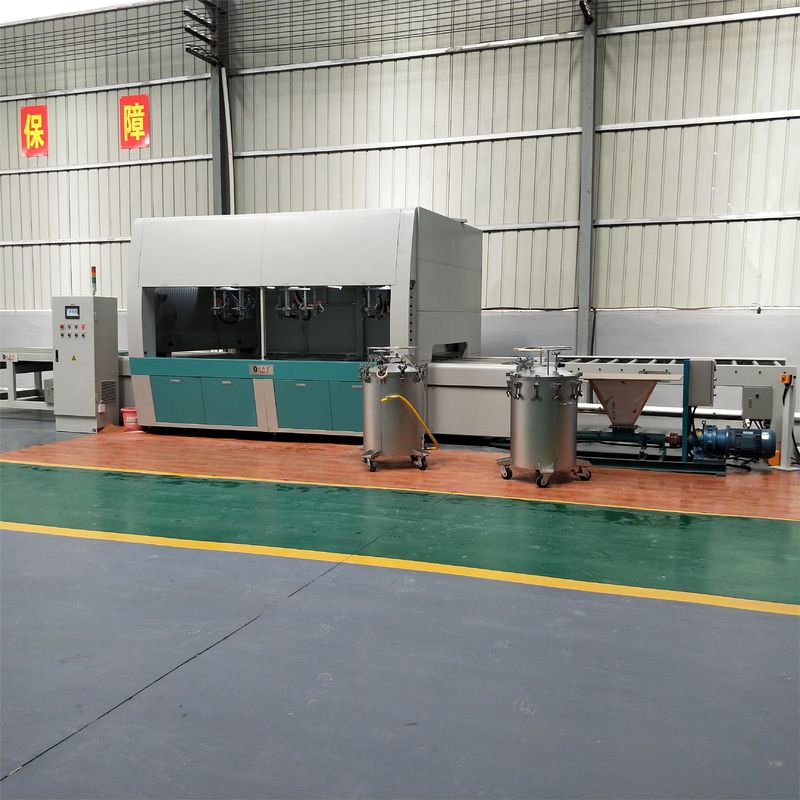

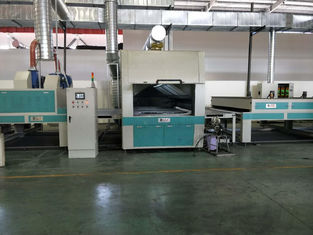

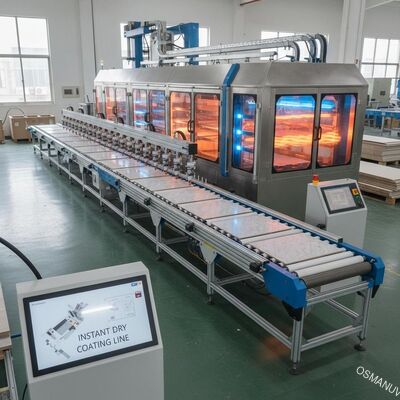

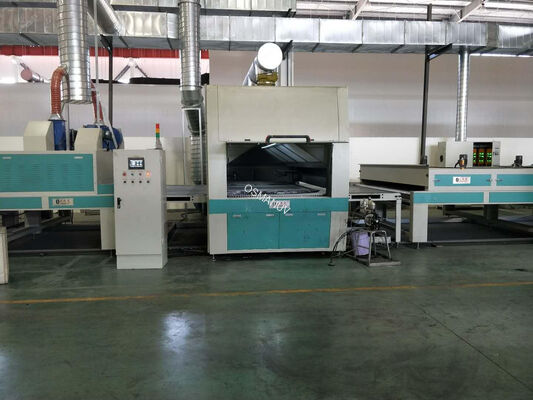

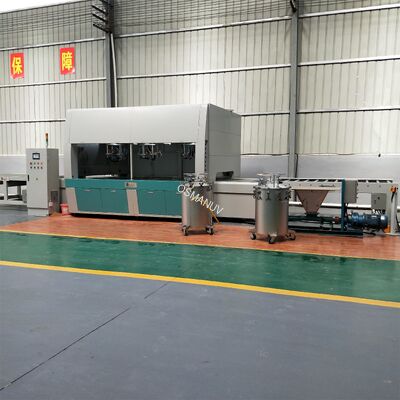

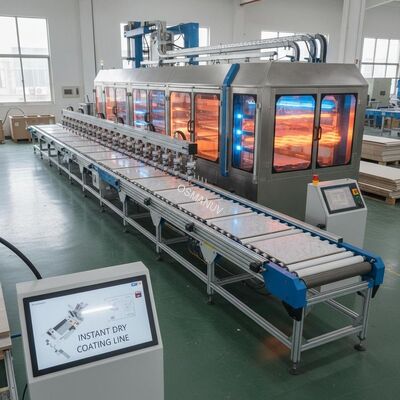

Production Line Overview

This advanced UV spray coating line is engineered for ultra-high productivity and superior hardened finish. It combines airless spray application efficiency with instant UV light curing technology, enabling immediate handling and stacking after curing while reducing floor space requirements.

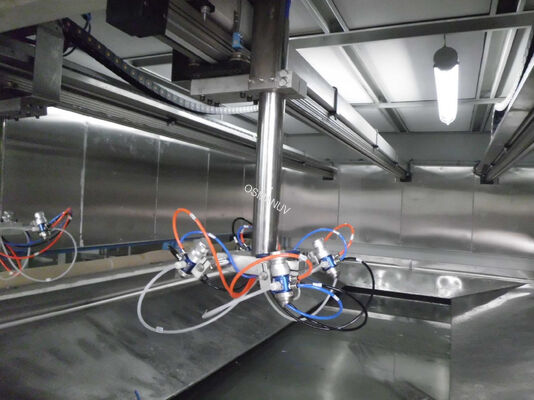

Production Line Composition: Automatic feeder, airless spray guns, flatting machine, topcoat spray station, drying machine, and unloading system.

Technical Specifications

Parameter Category	Details & Specifications
Model	OSM-PT-1320
Suitable Substrate	MDF, HDF, Pre-laminated Panels
Max. Panel Width	2800 mm (Customizable)
Number of Stations	Primer & Topcoat (Standard, Customizable)
UV Curing Power	1200 mJ/cm² (Standard, Customizable)
Line Speed	1-15 m/min
Control System	PLC with integrated energy management

Applications

Office furniture, kitchen cabinets, laminate flooring, and any product requiring an ultra-durable, high-gloss finish.

Customization Options

We offer customization of the UV lamp array (power and length), the number of spray stations, and integration of a flatting machine for perfectly smooth base coat application.

Key Features

Instant curing eliminates drying tunnels, saving valuable floor space
Superior hardness and scratch resistance for durable finishes
High-speed production capability for maximum throughput
Environmentally friendly operation with 100% solids coatings (no VOCs)

Support & Services

Specialized support from UV coating experts, assistance with coating material selection, and optimized curing parameter setup for optimal performance.

Packing & Shipping

UV lamps are packed separately with special cushioning protection. The complete production line is shipped in modular sections to facilitate easy installation and setup.

Frequently Asked Questions

Q: Are there any safety concerns with UV curing?

A: The UV curing oven is fully enclosed with interlock safety systems that automatically shut off the UV lamps when opened, ensuring complete operator safety. Proper PPE is recommended for maintenance procedures.
