Heavy Duty 28m Natural Gas Industrial Dryer Drying Line 24kw For Pulp Molding Package
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-LRHG-1320T |
| Document: | Natural Gas Drying Machine.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden package |
| Delivery Time: | 30 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Exterior Dimensions: | 700mm X 700mm X 800mm | Weight: | 2000kg |
|---|---|---|---|
| Voltage: | 380V 50HZ | Product Named: | Natural Gas Drying Machine |
| Temperature Range: | Ambient +5℃ ~ 200℃ | Temperature Control: | PLC |
| Temperature Display: | LED Display | Color: | Computer White / Green |
| Highlight: | 24kw Industrial Dryer,Heavy Duty Industrial Dryer,Pulp Molding Package Industrial Dryer |
||
Product Description

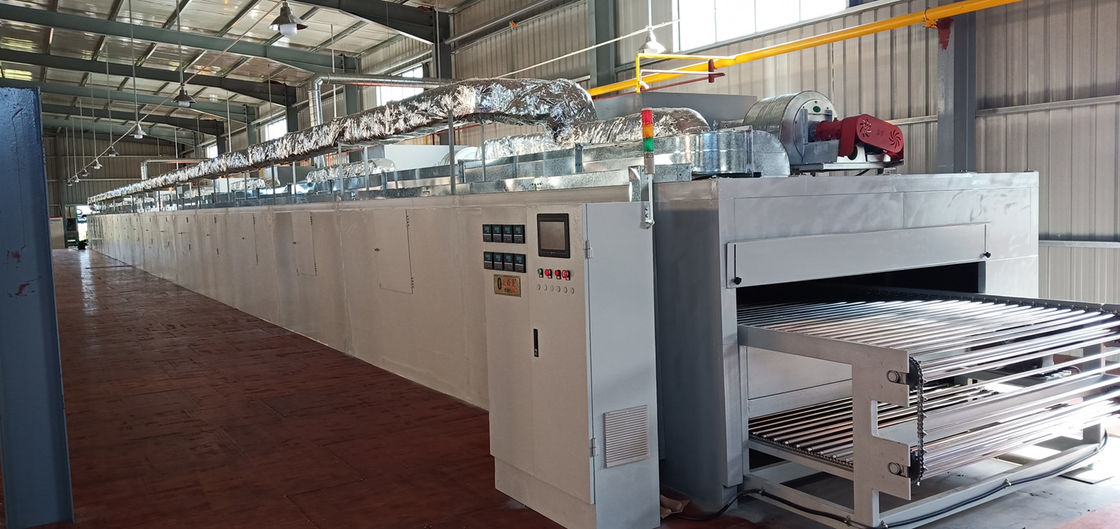

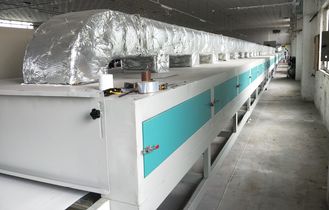

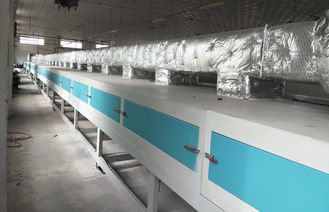

Heavy-duty 28m Natural Gas Drying Line 24kw For Pulp Molding Package
Product Description:
The OSM-LRHG-1320T 28M Natural Gas Drying Line combines durability with precision, featuring a robust 2.0T cold-rolled steel shell and 1.0T stainless steel interior. Its segmented 6m×4 drying zones ensure consistent heat distribution, while the Delta inverter allows flexible speed adjustments (0.5-8 m/min). Perfect for heavy-duty industrial use.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Heating Area | 24m (6m×4 segments) |
| Conveyor Material | SUS 304 stainless steel rod-type |

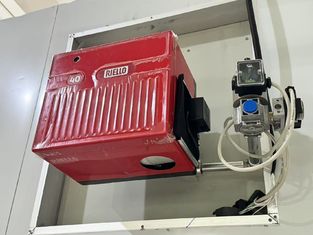

| Burners | 4× Riello (200,000 kcal/h) |
| Circulating Fans | 8 hot air fans |
| Exhaust Fans | 3× Kyushu fans |
| Safety Systems | Overheat prevention, motor overload protection, emergency stop |
| Working Height | 950-1050mm |
Application:
-
Automotive parts drying
-
Ceramic and glass processing
-
Chemical product drying
Customization:
-
Custom conveyor widths available
-
Additional insulation for high-temperature applications
Feature:
-
Triple-layer insulation (steel, stainless steel, rock wool)
-
Japanese switches and CHNT contactors for safety
-
Low maintenance design
Support and Services:
-
Free remote troubleshooting
-
Extended warranty options
Packing and Shipping:
-
Waterproof and shockproof packaging
-
FOB or CIF terms available
FAQ:
-
Q: What is the power consumption?
A: 24KW under full load. -
Q: Are spare parts included?
A: Basic spare parts are provided; others can be ordered separately.
