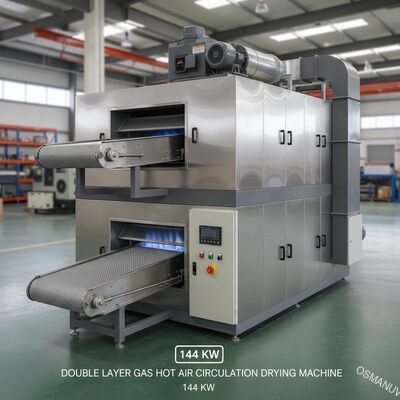

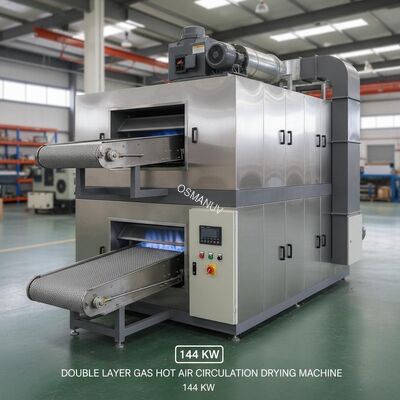

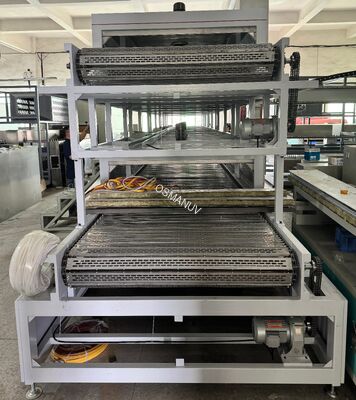

Double Layer Gas Hot Air Circulation Drying Machine For 1320 Conveyor 144 Kw
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-LRHG-1320T |
| Document: | Double Layer Natural Gas Dr...ne.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden package |
| Delivery Time: | 35 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Layer: | Two Layers | Power: | 144 Kw |
|---|---|---|---|
| Dry Automation: | High Automation | Conveying Speed: | 0.3-2 M/min |
| Belt Qty: | 2 | Main Machine: | Drying Machine |
| Automatic Grade: | Full-automatic | Max Product Width: | 1300mm |
| Condition: | New | Voltage: | 380V 50HZ |
| Dry Method: | Natural Gas | ||
| Highlight: | Hot Air Circulation Drying Machine,Double Layer Industrial Drying Machine,Gas Industrial Drying Machine |
||
Product Description
Hot Air Circulation Drying Double Layer Gas Drying Machine For 1320 Conveyor 144 Kw
Product Description
The Double Layer Natural Gas Drying Machine (Model: OSM-LRHG-1320T) is a state-of-the-art drying solution tailored for high-efficiency industrial coating applications. This intelligent drying line with hot air circulation and stainless steel heating tubes offers outstanding drying uniformity and speed. Designed with precision engineering, this machine delivers consistent performance in demanding environments.
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Name | Double Layer Natural Gas Drying Machine |
| Model | OSM-LRHG-1320T |
| Dimensions | 13500mm (L) × 1620mm (W) × 3670mm (H) |
| Conveyor Width | 1320mm |

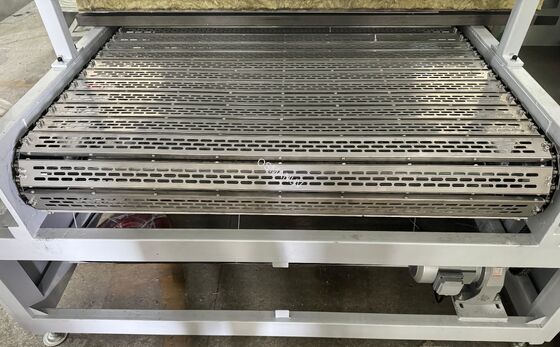

| Conveyor Material | 45# carbon steel + stainless steel chain + Teflon belt |
| Line Speed | 0.3–2 m/min (adjustable via frequency converter) |
| Heating Method | Hot air circulation + stainless steel finned heating tubes |
| Drying Area | 11,000mm |
| Loading / Unloading | 1000mm loading & 1500mm unloading with adjustable baffles |
| Air Inlet / Exhaust | Adjustable with filter requirement |
| Capacity (Single Layer) | 1800 pcs/hour |
| Housing Material | Painted cold-rolled steel (outer) + stainless steel (inner) |
| Insulation Layer | 100mm aluminum silicate board |
| Electric Control | Independent electric box, Inovance inverters, Omron thermostats |
| Temperature Range | Room temperature – 150°C (±5°C uniformity) |
| Total Power | 144KW, 380V, 50Hz |
| Warranty | 1 year |
Application
This drying equipment is ideal for:
- Industrial coating lines
- Metal surface treatment
- Wood veneer finishing
- PCB drying and curing
- Automotive parts finishing
Customization
We offer tailored solutions based on your production needs:
- Conveyor speed and width customization
- Heating zones adjustment
- PLC programming and interconnectivity via EtherCAT
- Color and logo branding
Features
- Dual-layer drying system for increased throughput
- Precision temperature control with ±5℃ deviation
- High-efficiency air circulation with frequency-controlled fans
- Durable materials for long-term industrial operation
- Easy maintenance side door design
Support and Services
- 24/7 technical consultation
- Online installation guide and video support
- One-year warranty with spare parts included
- Remote troubleshooting via EtherCAT protocol
Packing and Shipping
- Export-standard wooden packaging
- Anti-rust treatment for metal parts
- Delivered within 30 working days after order confirmation
- Supports FOB, CIF, and DDP terms
FAQ
-
Q: What is the drying time for coated products?
A: Typically 20 minutes at 100°C, depending on the coating formula. -
Q: Can the machine be integrated into an existing production line?
A: Yes, we provide integration support through EtherCAT-compatible modules. -
Q: What safety features are included?
A: Over-temperature protection, motor overload protection, emergency stop, and fuse protection. -
Q: Do you provide installation services overseas?
A: Yes, we offer online installation support and can dispatch engineers on request. -
Q: Is the machine energy efficient?
A: Yes, it uses high-efficiency blowers and frequency inverters to reduce energy consumption.
