Intelligent Fully Automatic Hot Air Drying Machine Line For Industrial Drying Systems

Intelligent Fully Automatic Hot Air Drying Machine Line For Industrial Drying Systems
Intelligent Fully Automatic Hot Air Drying Machine Line For Industrial Drying Systems Upgrade your industrial drying process with our 13.5m Double Layer Hot Air Drying Line - an intelligent, energy-efficient, and customizable solution ideal for coating, painting, and surface treatment industries. ...
Place of Origin:China
Brand Name:OSMANUV
Certification:ISO9001
Model Number:OSM-LRHG-1320T
Minimum Order Quantity:1 Set
Price:Negotiation
Product Custom Attributes
Highlight

Industrial Hot Air Drying Line

,

Automatic Hot Air Drying Line

,

Intelligent Hot Air Drying Line

Layer:
Two Layers
Power:
144 Kw
Dry Automation:
High Automation
Conveying Speed:
0.3-2 M/min
Belt Qty:
2
Main Machine:
Drying Machine
Automatic Grade:
Full-automatic
Max Product Width:
1300mm
Condition:
New
Voltage:
380V 50HZ
Dry Method:
Natural Gas
Product Description
Intelligent Fully Automatic Hot Air Drying Machine Line For Industrial Drying Systems

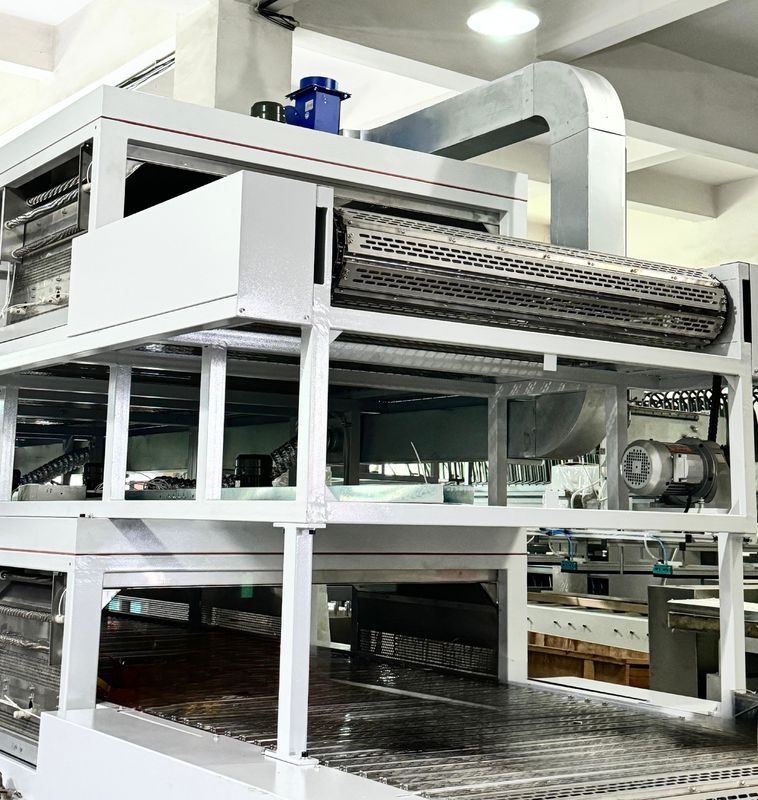

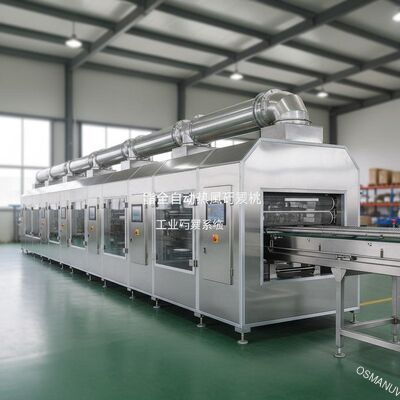

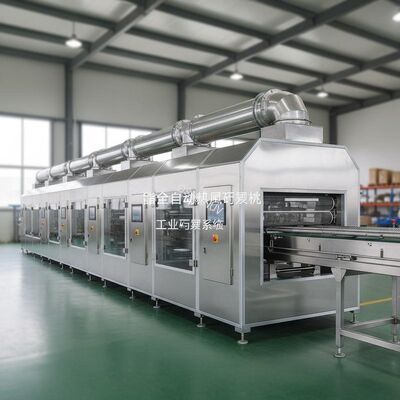

Upgrade your industrial drying process with our 13.5m Double Layer Hot Air Drying Line - an intelligent, energy-efficient, and customizable solution ideal for coating, painting, and surface treatment industries. Built with premium materials and international-grade components, this machine ensures fast, uniform, and reliable drying performance.
Technical Parameters
Specification Detail
Product Type Intelligent Coating Drying Line
Model Number OSM-LRHG-1320T
Total Length 13.5 meters
Conveyor Width 1320mm
Speed Range 0.3-2 m/min (Variable Frequency Control)
Heating System Hot Air Circulation + Stainless Steel Heating Tubes
Temperature Range Ambient to 150℃ (±5℃ accuracy)
Material Structure Cold-rolled steel (outer) + stainless steel (inner wall)
Drying Sections Loading: 1000mm, Drying: 11000mm, Unloading: 1500mm
Output Capacity 1800 pcs/hour (single layer)
Fans 16 hot air fans (0.37kw) + 2 dehumidifier fans (1.1kw)
Electrical System Inovance inverters, Omron thermostats, EtherCAT support
Power Supply 144KW, 380V, 50Hz
Safety Systems International standard safety protection
Control Box Independent control cabinet
Warranty 12 months
Application
  • Powder coating lines
  • Printed circuit board (PCB) drying
  • Furniture and wood panel processing
  • Automotive and metal part finishing
  • Waterborne or solvent-based coating drying
Customization Options
  • Conveyor system materials and size
  • Multi-zone temperature control
  • Color and branding customization
  • Integration into smart factory systems
Machine Features
  • Smart drying technology with fast heat-up and uniform temperature
  • Double-layer design for space-saving and higher output
  • Modular structure for fast installation and maintenance
  • Noise-reduced operation using top-grade motors and insulation
  • Eco-friendly insulation materials with excellent heat retention
Support and Services
  • Global shipping and trade support
  • Technical training and operation manuals
  • Spare parts availability for 5+ years
  • OEM/ODM cooperation welcomed
  • Remote support via smart control system
Packing and Shipping
  • Secure wooden box packaging
  • Protective film for sensitive components
  • Custom labeling as per client requirement
  • Shipping by sea, air, or rail - globally available
Frequently Asked Questions
Q: How long does it take to manufacture the machine?
A: Standard production time is 25-30 working days.
Q: Can I request changes to the drying length or fan power?
A: Yes. All elements can be customized based on your production needs.
Q: What certifications do you provide?
A: CE, ISO9001, and electrical components comply with international standards.
Q: Does the machine support automated line integration?
A: Absolutely. It supports EtherCAT for seamless smart factory integration.
Q: What kind of maintenance is required?
A: Regular filter cleaning, fan lubrication, and electrical inspection. We provide a maintenance checklist.
