Double Layer Natural Gas Industrial Drying Machine Stainless Steel Punching Chain Plate Belt For Pulp Mold Bottle Tableware High End Industrial Package
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-LRHG-1320T |
| Document: | Double Layer Natural Gas Dr...ne.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden package |
| Delivery Time: | 35 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Layer: | Two Layers | Power: | 144 Kw |
|---|---|---|---|
| Dry Automation: | High Automation | Conveying Speed: | 0.3-2 M/min |
| Belt Qty: | 2 | Main Machine: | Drying Machine |
| Automatic Grade: | Full-automatic | Max Product Width: | 1300mm |
| Condition: | New | Voltage: | 380V 50HZ |
| Dry Method: | Natural Gas | ||
| Highlight: | Stainless Pulp Mold Drying Machine,Double Layer Pulp Mold Dryer,Two Layer Industrial Drying Machine |
||
Product Description

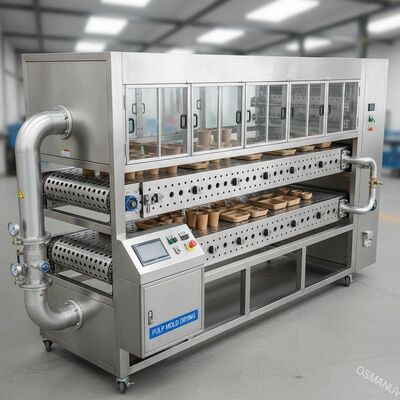

Double Layer Natural Gas Drying Machine Stainless Steel Punching Chain Plate Belt For Pulp Mold Bottle Tableware High-end Industrial Package
Product Description:

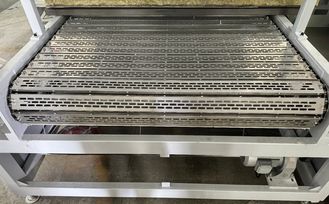

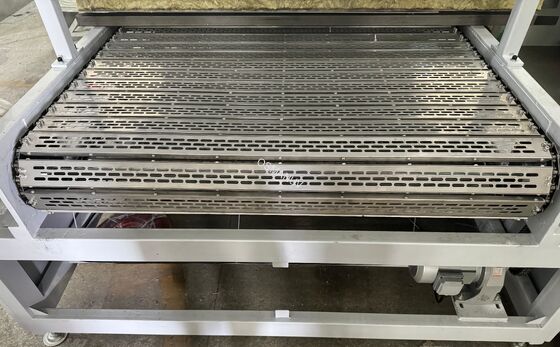

Our OSM-LRHG-1320T Double-Layer Drying Line is engineered for high-capacity, uniform drying in industrial settings. With a robust 45# carbon steel chain and stainless steel perforated conveyor, it ensures durability and precision. Ideal for food processing, pharmaceuticals, and coatings, this dryer features advanced heat circulation and customizable speed (0.3–2 m/min) to optimize productivity.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Model | OSM-LRHG-1320T |
| Dimensions (L×W×H) | 13500×1620×3670 mm |
| Conveyor Width | 1320 mm |
| Heating Method | Hot air circulation + stainless steel finned heating tubes |
| Temperature Range | Ambient to 150°C (±5°C uniformity) |
| Capacity | 1800 pcs/hour (single layer) |
| Total Power | 144 KW, 380V 50Hz |
| Key Components | 16× 0.37KW Dingfeng blowers, 2× 1.1KW Kyushu exhaust fans, Omron temperature controllers |
Application:
-
Food dehydration (e.g., fruits, vegetables)
-
Drying coated metal/plastic parts
-
Pharmaceutical tablet drying
Customization:
Tailor the conveyor speed, temperature zones, and shell color (client-specified RAL code). Optional PLC integration for recipe management.
Feature Highlights:
-
Energy-Efficient: 100mm silica-aluminum insulation reduces heat loss.
-
Safety: Overheat protection, emergency stop, and CE-compliant electrical systems.
-
Easy Maintenance: Side-access doors for quick servicing.
Support and Services:
1-year warranty, 24/7 technical support, and on-site installation guidance.
Packing and Shipping:
Fully disassembled, wrapped in anti-rust film, and shipped in wooden crates (FOB terms).
FAQ:
-
Q: What’s the drying time for coatings at 100°C?
A: 20 minutes -
Q: Can the line handle moisture-sensitive materials?
A: Yes, with adjustable exhaust fans and humidity control. -
Q: Is the conveyor belt FDA-approved?
A: The stainless steel chain plate is food-grade; specify if certification is needed. -
Q: How to reduce energy consumption?
A: Use (frequency converters) to optimize fan speeds. -
Q: What’s the lead time for customization?
A: 30–45 days post-design confirmation.
