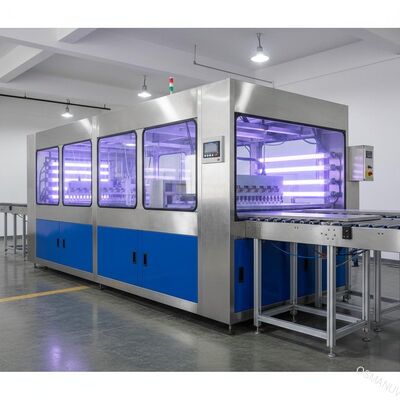

90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard

90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-ZH-1320H.

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: 90 Degree Steering Conveyor Dimensions: 2800mm Long × 2800mm Wide × 900mm High. (Subject To Actual Size)
Power Supply Voltage: 380V, 50HZ, Three-phase Five-wire System Running Speed: 5-20M/min Adjustable
Conveying Direction: From Left To Right Rotating Device: Using 90º Rotating Electric
Feature: Energy Saving
High Light:

90 Degree Rotating UV Coating Machine


Cement UV Coating Machine


multifunctional coating machine

Product Description

UV Coating Machine Automatic Coating Machine For Wall Or Floor 90deg Rotating Electric For Cement Fiberboard
The advantage of the roller double-sided coater is that it is simple in structure and can be coated on both sides at the same time. As an in-machine coater, it has a suitable coating speed and is not easy to produce coating streaks.
It is suitable for 90º steering and conveying of various calcium silicate boards, glass magnesium boards, cement fiber boards, panel furniture, door panels, MDF, particleboard and other workpieces in assembly line operations.

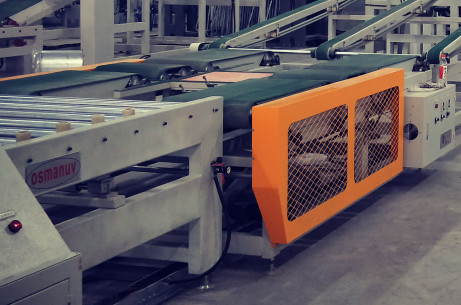

 1Product name:90 degree jacking rotary plate machine.
 3 Features:suitable for all kinds of calcium silicate board, glass magnesium board, cement fiberboard, board furniture, door panels, MDF board, particleboard and other flow work of the workpiece 90 ° to transport.
 4Mechanical dimension:2800mm long × 2800mm wide × 1800mm high. (Subject to the actual size).
 5Power supply voltage:380V, 50HZ, three-phase five-wire system.
 6 Power:1.5KW.
Main frame:
The main steel frame is made of 3mm thick cold-rolled steel plate made of Q235, the legs are welded with 80*40mm carbon steel square tubes, and the distance between the rollers is less than 10cm.
 8Side plate:It is made of 3mm steel plate bending, the surface is sprayed with powder, and the line end is equipped with a photoelectric switch and a start-stop switch.
 9Power part:The power part adopts Taiwanese city state gear reducer and motor, tapered roller chain drive, the distance between the rollers is less than 10cm. There is an anti-pinch steel plate between the transmission chain and the roller for bending treatment to ensure the safety of the equipment, and the turning plate is completed The rear is equipped with a centering device, and the airtaker brand is used for the centering cylinder. The chain wheel and the chain are connected by a key connection.
 10Control electrical parts:Control electrical appliances use Chint electrical components, travel switches and photoelectric switches use Omron brand; control Yaskawa PLC and Delta inverters. The control lines are neat, and the incoming and outgoing lines without towing lines are marked with numbers and correspond to the wiring diagram correctly. All electrical parts should be in the control box.
 11Running speed:5-20M/min can be adjusted, the movement rate is 4.0 boards per minute, and the equipment transmission speed is uniform and stable.
 12Conveying method:The drum is Φ75 cold drawn steel pipe, and the surface is galvanized. The bottom side of the drum surface is 20mm.
 13 The driving device adopts the Taiwan city state reducer motor, the power is 1500w, 1 set, the linear speed of the drum is 20 meters/minute.
 14 The conveyor moving in and out has automatic identification, which is automatically carried out by electric control. Electric realizes translation, pneumatic realizes rotation.
 15Rotating device:using 90º rotating motor.

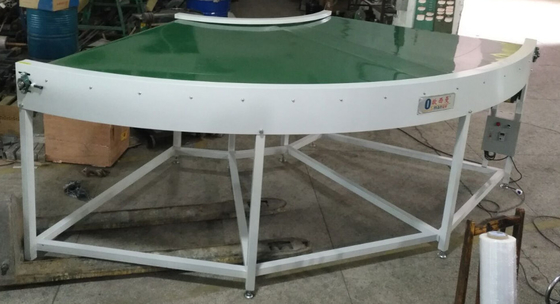

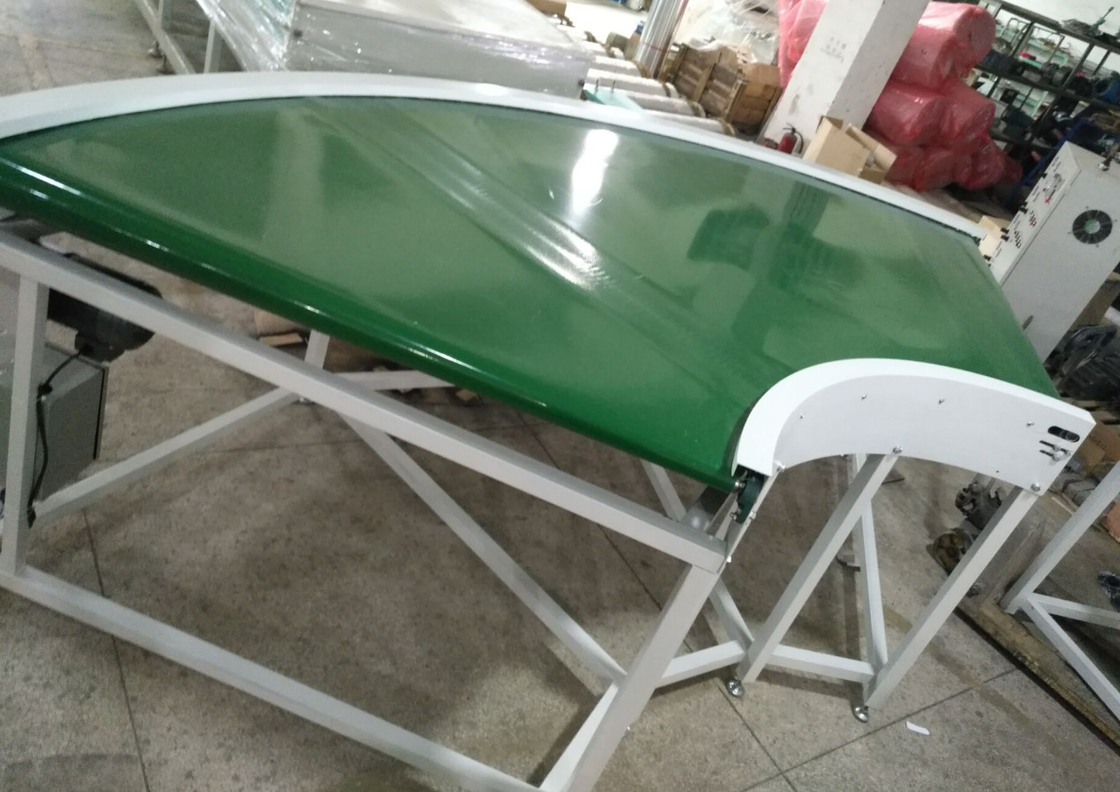

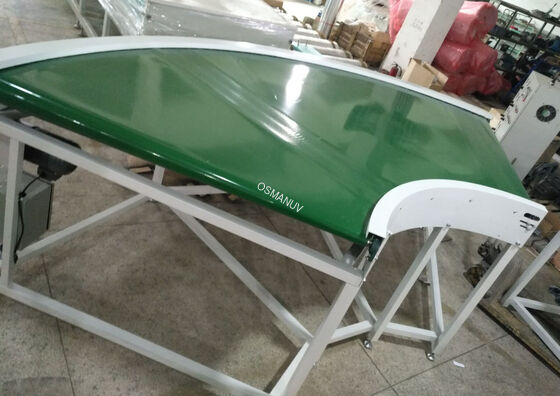

90 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard 090 Degree Rotating Automatic UV Coating Machine For Cement Fiberboard 1

Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
