MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case

MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case
MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case
MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case

Large Image :  MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-GS-620 type
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case

Description
Features: Energy Saving Product Name: Double Roll Coating Machine
Color: Computer White / Green / Blue Effecive Width: 620mm
Coating Roll: Silicone Rollet Power: 10 KW
Weight: 1500KG
Highlight:

MDF Spray Coating Machine

,

Spray Coating Machine 10KW

,

10KW Spray Coating Equipment

MDF Spray Coating Machine 10KW For Car Frame / Mobile Phone Case
Product Overview

Semi-automatic or fully automatic coating equipment designed to replace manual spray guns by dispersing paint into a fine mist and applying it evenly to surfaces. Widely used for primer and topcoat applications on flat wood, MDF, aluminum, panel furniture, and PVC panels.

Technical Specifications
Specification Details
Product Name Color Changing Machine
Model OSM-GS-620 Type
Mechanical Size 2000mm long × 1500mm wide × 1520mm high
Effective Working Size Width: 620mm, Thickness: 2-80mm, Minimum Length: 300mm
Conveying Speed 5-20m/min
Construction & Materials
  • Shell: 1.5mm cold-rolled plates, bent and welded with liquid paint surface treatment
  • Frame: 100×50mm channel steel
  • Supporting wall: 20cm A3 steel plate
Coating System
  • Two sets of lifting roller coating systems
  • First group: Steel rollers and rubber rollers
  • Second group: Laser rollers
  • Lifting system: Mechanical and pneumatic control for precise head movement
  • Coating roller: 205mm diameter, 720mm length, Japanese polyurethane construction
  • Measurement wheel: 130mm diameter, 720mm length, 45# seamless steel pipe
  • Laser roller: 150mm diameter, 720mm length, 45# structure with laser engraving
Power & Control Systems
  • Power: Each roller driven by independent hollow deceleration motor
  • Control: 4 sets of Taiwan Delta frequency converters for speed control
  • Electrical components: OMRON relays, CHNT contactors, CKC delays, Japan Izumi switches
  • All components comply with CE standards
Safety Features
  • Leakage circuit breaker
  • Motor overload protection
  • Emergency stop switch
  • Control circuit fuses
  • International safety standard compliance

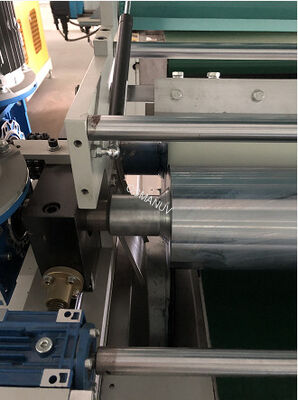

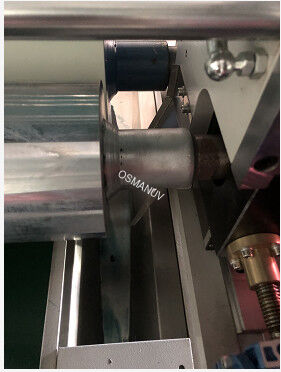

MDF Spray Coating Machine technical diagram showing roller systems and components

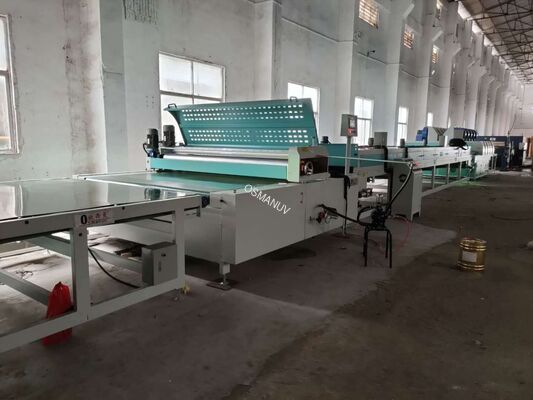

MDF Spray Coating Machine in operational environment showing complete assembly
Frequently Asked Questions
Are you a trading company or manufacturer?

We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

How can I know your machine has good quality?

We provide sample testing with video documentation, factory visits, and our products are widely used in China, Southeast Asia, South America, and Europe.

What certifications do you have?

Fully compliant with GMP & ISO standards and CE certified for export.

What is your Quality Warranty?

One year warranty with lifelong maintenance and technical support.
