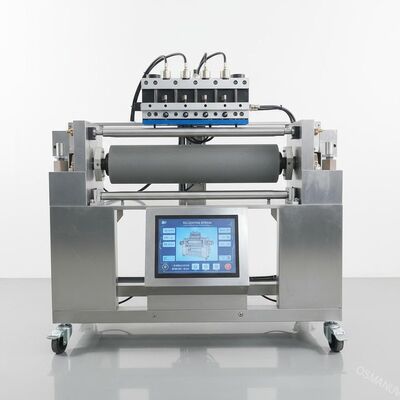

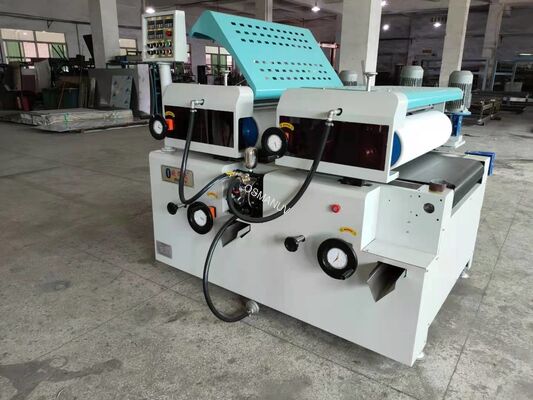

PLC Control Roller Coating Equipment With Multifunctional Coating Head

PLC Control Roller Coating Equipment With Multifunctional Coating Head

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-GTJ-1230I

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 WORK DAYS
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Double Roll Coating Machine Color: Computer White / Green / Blue
Effecive Width: 1320mm Coating Roll: Silicone Rollet
Power: 10KW Weight: 1500KG
High Light:

PLC Control Roller Coating Equipment


Multifunctional Roller Coating Equipment


Multifunctional Coating Head Roller Coater

Product Description

Roller Coating Equipment Measuring Wheel Factory For Film or paper



It adopts a special multifunctional coating head, which can realize various forms of surface coating. The winding and unwinding of the coating machine are equipped with a full-speed automatic film splicing mechanism, and PLC program tension closed loop automatic control.




This machine can be used for different kinds of wood, plastic and metal products. It can
ensure the surtace of the paint to be smooth with good plumpness, and with no chromatic


The electrooptic roller and rubber roller are controlled independently by transducer and
reactor, which can guarantee precision.


The doctor of this machine is imported PU doctor which can be antil-abrasive and resistant
to all solvent.


This machine can coat all-kinds of paint, such as PU VU NC and so on. And the paint can
be reclaimed wihtout wastage.

  5 The work piece coating can be controlled between 5-10g/m.




Effective working width 1320 mm
Effective processing thickness 2-50 mm
Minimum machining length 300 mm
Transmission speed

2-15 m/min

Cots roller diameter

¢300 mm

Measuring wheel diameter

¢180 mm

Diameter of anti-grain wheel


Pressure wheel diameter

¢70 mm

Cots length

1450 ±0.1mm

Measuring wheel length

1450 ±0.1mm

Anti-grain wheel length

1450 ±0.1mm

Length of pressure wheel

1220 mm

Machine inner width 1650 mm
Machine length: 4000 mm
Machine height

conveyor belt is 850±30mm above the ground


PLC Control Roller Coating Equipment With Multifunctional Coating Head 0PLC Control Roller Coating Equipment With Multifunctional Coating Head 1



Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
