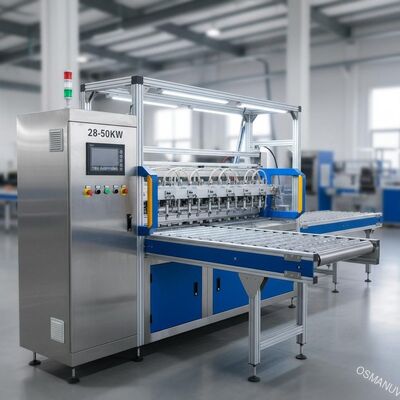

28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System

28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System
28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System
28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System 28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System 28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System 28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System 28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System 28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System

Large Image :  28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-ZDPT-1320PT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

28 - 50KW Tec Lighting Spray Coating Machine With Conveyor System

Description
Weight: 3000kg Voltage: 380v Three Phase 50-60HZ
Power(w): 28-50kw Warranty: One Year
Color: Computer White + Grass Green ,As You Like Working Speed: 50-100m/min
Highlight:

Tec Lighting Spray Coating Machine

,

50KW Spray Coating Machine

,

28KW Spray Coater

28-50KW Tec Lighting Spray Coating Machine With Conveyor System
Spray Coating Machine With Conveyor System Tec Lighting For Board, Wall or Floor
The amount of water vapor in compressed air is determined by its temperature. While maintaining consistent compressed air pressure, lowering the temperature reduces water vapor content, causing excess moisture to condense into liquid. The freeze dryer utilizes this principle with refrigeration technology to effectively dry compressed air.
Key Features
Feature Description
1 Suitable for coatings on calcium silicate board, cement fiber board, steel plate, and new building materials surface spraying real stone paint, water-in-water nano-color glaze, etc.
2 Japanese Mitsubishi PLC man-machine interface, Mitsubishi servo motor, inverter and other imported electrical components ensure mechanical stability
3 Spray system uses American Graco pumps and Graco large-caliber spray guns for precise spray metering control
4 Slider module system: Taiwan high-speed module system with stable performance and durability
5 Electrical components include Schneider contactor, Mitsubishi servo, Japan Hequan switch for reliable mechanical performance
6 Effective spraying width: 1300mm
Conveyor System
Feature Description
1 Acid and alkali resistant PU belt for product transportation with paint recovery and cleaning devices to prevent paint residue, ensuring plate backs remain clean and reducing paint waste
2 Conveying speed: 1-5 m/min

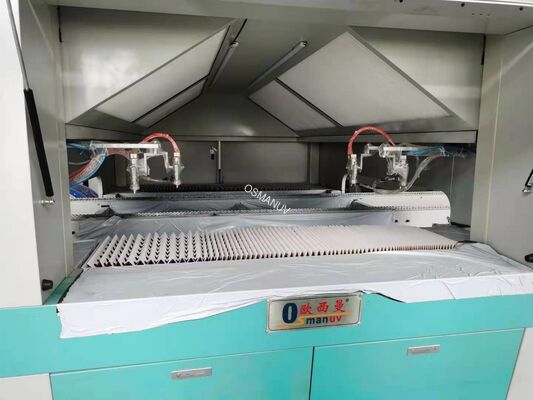

Painting System
Feature Description
1 4 American GRACO automatic spray guns (spray gun caliber: 1.1mm)
2 Taiwan Polaroid pressure regulating and oil supply system ensures perfect spraying quality
3 Two groups of spraying tracks with 2 GRACO automatic spray guns each, spraying at different angles; controlled by OMRON infrared photoelectric induction
4 Maximum spray gun stroke: 3400mm reciprocating
Adjustable distance between spray gun and product controlled by OMRON electric eye, allowing any path movement within maximum stroke range with gun opening/stopping capability for uniform paint application and significant paint savings.
Spray Booth Air Filtration System
Feature Description
1 High-efficiency air filter above automatic spraying machine effectively filters airborne dust, maintaining clean spraying environment
2 High-efficiency air filter above automatic spraying machine effectively filters airborne dust, maintaining clean spraying environment
Mechanical Configuration
Feature Description
1 Front glass window for easy observation of sprayer working conditions
2 Two high-efficiency fans for exhaust and supplementary air; intake fan brings fresh air through filter system to spray booth
3 Housing material: 1.5 cold-rolled bent and welded plates with computer color painting; inner wall made of 304# stainless steel mirror panel
4 Electrical components: Japan OMRON relay, CKC delay, Schneider contactor, Taiwan motor Chint leakage circuit breaker
5 Safety devices: leakage circuit breakers, control circuit fuses, emergency switches complying with international safety standards
Machine Control Method
Component Specification
Man-machine Interface Weilun
Control System Delta PLC control
Sliding Rail Drive Mitsubishi servo motor
Warranty
Coverage Details
1 Whole machine guaranteed for one year; electrical parts guaranteed for half year
2 Air filter not covered by warranty; can be blown, wiped, cleaned, or replaced when contaminated

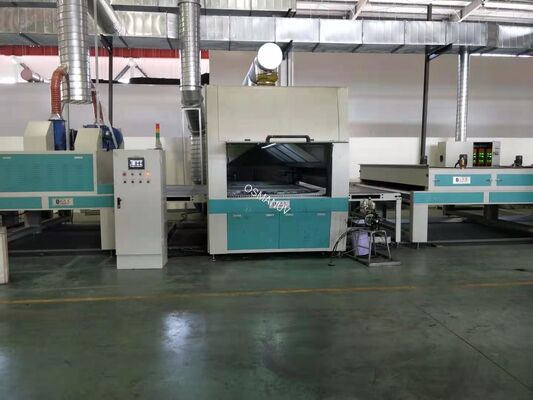

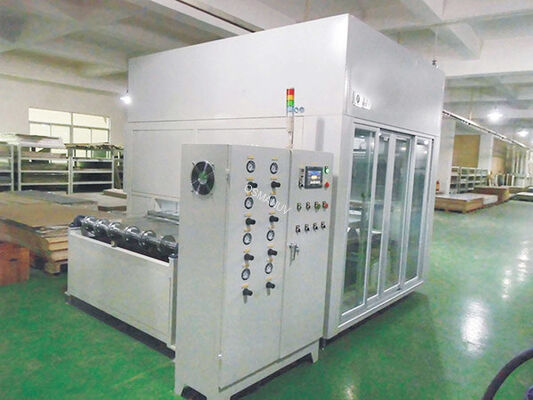

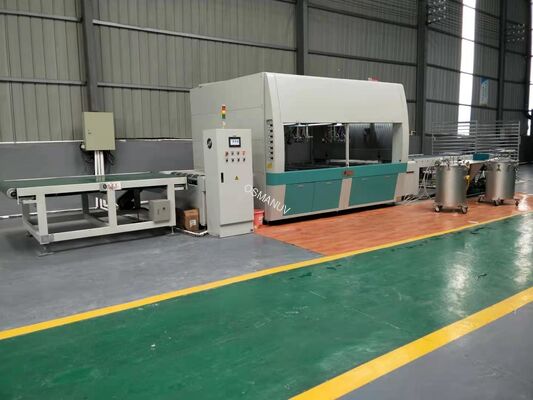

Tec Lighting Spray Coating Machine front view Tec Lighting Spray Coating Machine side view Tec Lighting Spray Coating Machine operational view
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We conduct sample trials on our machines and provide video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our products comply with GMP & ISO standards and have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
