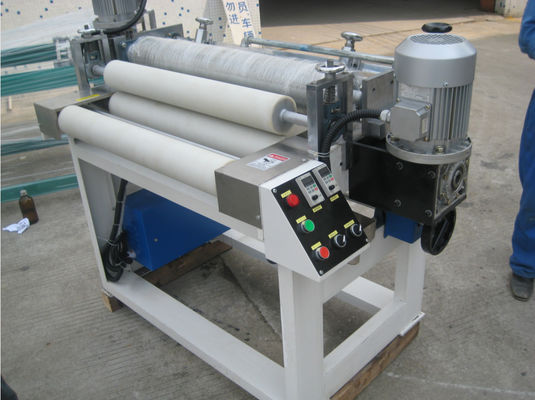

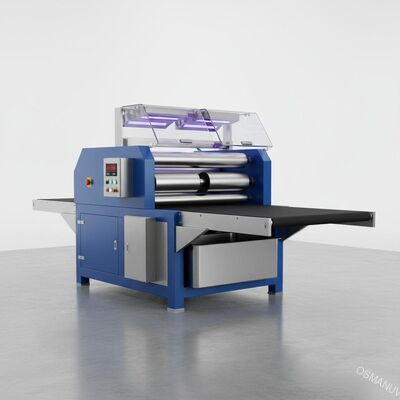

620mm Width Double Roll UV Coating Machine 10KW For Floor
UV Coating Machine 10KW
,620mm Width UV Coating Machine
,620mm Width Double Roll UV Coater
UV Coating Machine Spray Painting Machine Coating systems Company For Floor or Board
The high-clean organic coating equipment has the characteristics of flat plate shape, high appearance quality requirements, smooth and fine coating film, and soft color.
| Specification | Details |
|---|---|
| Product Name | Color changing machine |
| Model | OSM-GS-620 type |
| Mechanical Size | 2000mm long × 1500mm wide × 1520mm high |
| Effective Working Size | Width: 620mm, Thickness: 2-80mm, Minimum Length: 300mm |
| Conveying Speed | 5-20m/min |
- Widely used for primer and topcoat coating of flat wood, MDF, aluminum, panel furniture, PVC panels, etc.
- Produces uniform surface color without ripples or stripes, achieving mirror-like brightness
- Shell constructed from 1.5mm cold-rolled plates with liquid paint surface treatment
- Frame made of 100×50mm channel steel with 20cm A3 steel plate supporting wall
- Dual lifting roller coating systems with mechanical and pneumatic control methods
- High-quality Japanese polyurethane coating rollers with customizable hardness (30-50 degrees)
- Precision measurement wheels with runout less than 0.05mm
- Laser rollers with electroplated hard chrome surface for optimal results
- Independent hollow deceleration motor drive for each roller
- 4 sets of Taiwan Delta frequency converters for independent speed control
- Coating Roller: Diameter: 205mm, Length: 720mm, Japanese polyurethane material
- Measurement Wheel: Diameter: 130mm, Length: 720mm, 45# seamless steel pipe
- Laser Roller: Diameter: 150mm, Length: 720mm, 45# structure with hard chrome plating
- Conveyor Roller: Diameter: 130mm, Length: 620mm, Japanese rubber material
- Scraper: Aluminum alloy holder with Swedish imported stainless steel blade
- Electrical Components: OMRON relays, CHNT contactors, Taiwan Delta frequency converters
- Safety Features: Leakage circuit breaker, motor overload protection, emergency switch, control circuit fuse
-
