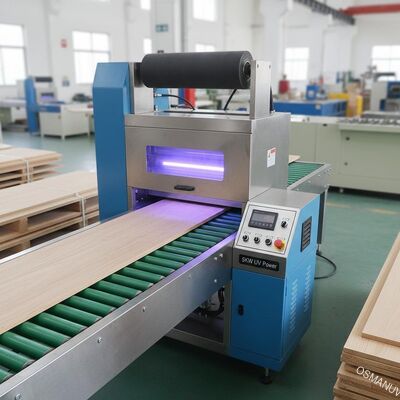

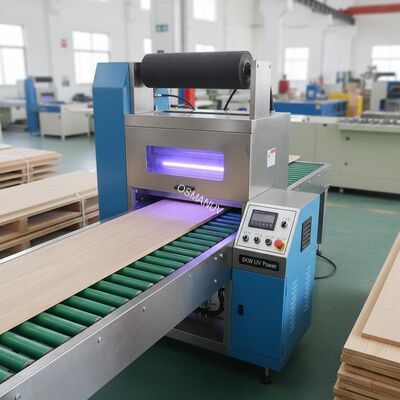

5KW UV Single Roll Coating Machine 5 - 20m/min for wood

5KW UV Single Roll Coating Machine 5 - 20m/min for wood

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-GT-920-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Size: 1000 Mm X 1800 Mm X 1420 Mm Product Name: Single Roll Coating Machine
Color: Computer White / Green Weight: 900KG
Speed: 5-20m/min Total Power: 5KW
High Light:

5KW Single Roll Coating Machine

,

Single Roll Coating Machine 20m/min

,

5m/min UV Roller Coating Machine

Product Description

High precision single roll coating machine glue roller uv roller coating machine



Description​:



It is suitable for all kinds of wood, plastic, metal and other flat coatings. The surface of the paint processed by this machine is smooth, full, and no color difference.



Describe

 1 Effective working size: a effective width: 920mm; b, thickness: 3-80mmc, length (shortest): 300mm.
 2

Material:

The shell is made of 1.5mm steel plate bent and welded, the surface is treated with liquid paint, and the support wall is made of 20cm steel plate (A3 material)

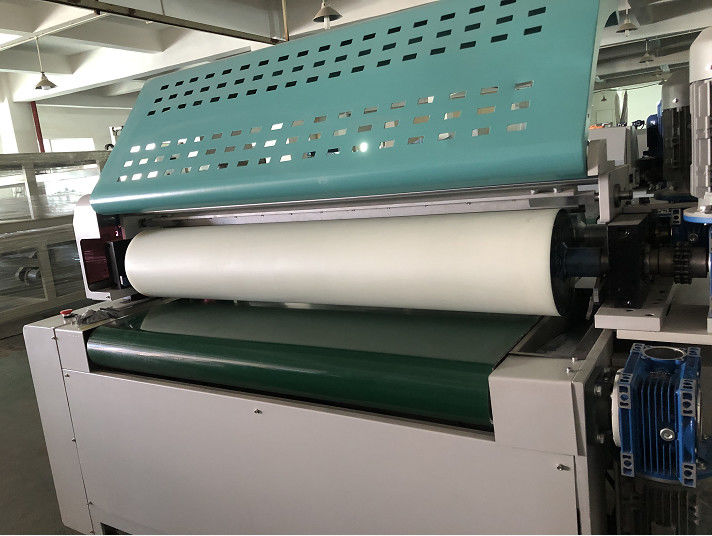

 3 Coating part: A single group of roller coating system is adopted. Each group of systems includes steel rollers and silicone wheels. Each group of roller coating system can be lifted and lowered independently.
 4 Glue roller:

diameter: ¢250mm, length: 1070mm, made of high-quality Japanese silicone, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees -50 degrees), can withstand various solvents. Use high quality Coupling drive, bearing adopts KHV bearing, Taiwan Delta inverter controls glue roller speed.

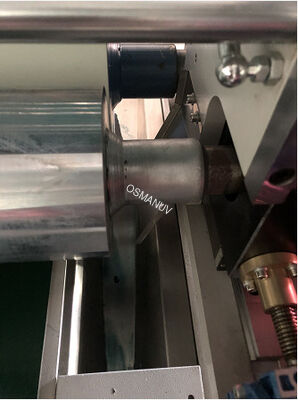

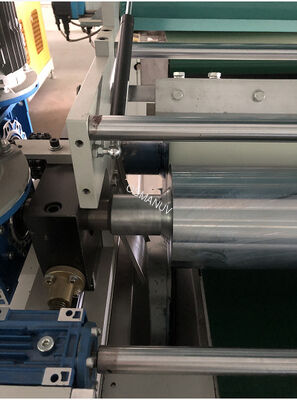

 5 Metering wheel: Diameter: ¢150 mm, length: 1070mm, 45# seamless steel tube is welded by CO², the surface is finely ground, the balance is dynamic, the runout is less than 0.05mm, and the surface is brightened by electroplating hard chrome and polishing. Direct plug-in connection transmission, which can truly achieve the integration with the drive motor.
 6 Conveying roller: power: 1.5KW, diameter: ¢130 mm, length: 920mm. The 45# seamless steel pipe is welded by CO², the surface is finely ground, and the balance is dynamic, the runout is less than 0.05mm, and the surface is brightened by electroplating hard chrome and polishing. The direct plug-in connection transmission can truly achieve the integration with the drive motor.
 7 Conveyor belt: Green PVC flat conveyor belt is adopted, which is stable and has long service life.
 8 Working height: 0~850mm (the height of the belt from the ground), the height of the roller is equipped with a position indicator.

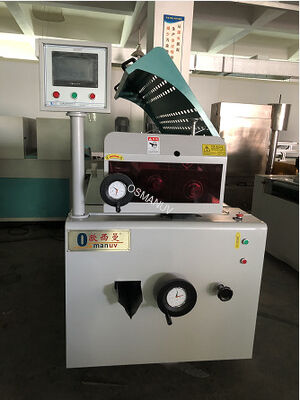

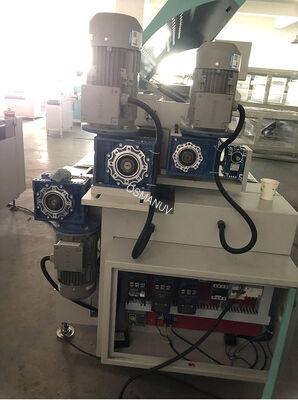

 9 Control system 3 sets of Wanxin speed machine, 3 sets of Delta frequency converter, each roller can be adjusted independently.
 10 Safety device: This machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse, etc. in line with international safety standards



5KW UV Single Roll Coating Machine 5 - 20m/min for wood 05KW UV Single Roll Coating Machine 5 - 20m/min for wood 15KW UV Single Roll Coating Machine 5 - 20m/min for wood 25KW UV Single Roll Coating Machine 5 - 20m/min for wood 3





FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
