Automatic Turning Machine For Calcium Silicate Board 380v 180deg

Automatic Turning Machine For Calcium Silicate Board 380v 180deg

Product Details:

Place of Origin: China
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSM-FB1320MM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Weight: 1500kg Voltage: 380v
Power(w): 5.69KW Warranty: 1 Year
Net Paper Width: 1320mm Origin: Guangdong Dongguan
High Light:

180deg automatic turning machine

,

380v automatic turning machine

,

180deg automatic wood turning lathe machine

Product Description

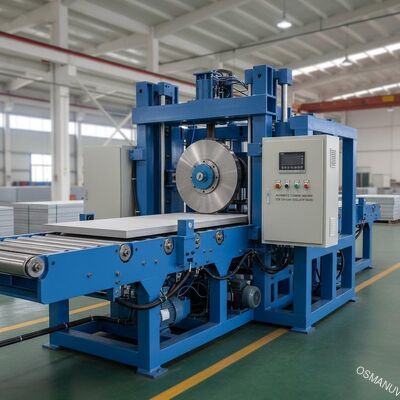

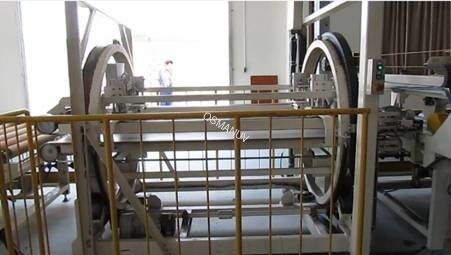

180º Automatic Turning calcium silicate board 1320mm Automatic Turning Machine



Description:

Automatic turning machine

 1 Product name 180º automatic turning machine.
 2 Model OSM-FZ-1320I type.
 3  Features It is suitable for all kinds of calcium silicate board, glass magnesium board, cement fiber board, board furniture, door board, MDF, particle board and other large board turnover requirements, and the board can be automatically turned over 180° safely, smoothly and effectively.
 4 Mechanical size 3400mm×3300mm wide×1520mm high. (Subject to actual size)
 5 Power supply voltage 380V, 50HZ, three-phase five-wire system.
 6 Control electrical appliances

CHINT is used for control electrical appliances, and Taiwan Delta M series models are used for inverters. Travel switch and photoelectric switch adopt Omron brand; Delta inverter and Yaskawa PLC. The wiring of the control part is neat, and the incoming and outgoing lines without towing line are marked with numbers and correspond to the wiring diagram correctly. The electrical parts should all be in the control box. The control box is independent externally.


 7 Running speed 1-5 plates per minute (frequency conversion).
 8 Main frame The frame is made of high-quality carbon structural steel Q235, which has undergone aging treatment and will never change shape. All welded parts are not only guaranteed to be flat and full welded, but also inspected by flaw detection, and all important parts are annealed.
 9 Effective working size a, 1220*2440mm; b, thickness: 3-20mm.
 10 Flip power equipment use Zhujiang motor, strong bead aluminum alloy reducer
 11 Safety device: This machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control circuit fuse, etc. in line with international safety standards.
 12 Conveying direction from left to right





Automatic Turning Machine For Calcium Silicate Board 380v 180deg 0Automatic Turning Machine For Calcium Silicate Board 380v 180deg 1



FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
