620Mm 5m/Min Hair Roller Coating Equipment With Channel Steel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-GS-620 type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Double Roll Coating Machine | Color: | Computer White / Green / Blue |
|---|---|---|---|
| Effecive Width: | 620mm | Coating Roll: | Silicone Rollet |
| Power: | 10 KW | Weight: | 900KG |
| Highlight: | Roller Coating Equipment 620Mm,5m/Min Roller Coating Equipment |
||
Product Description
620Mm 5m/Min Hair Roller Coating Equipment With Channel Steel
Product Overview
This color changing machine is widely used for primer and topcoat coating of flat wood, MDF, aluminum, panel furniture, PVC panels, and more. The surface color after coating is uniform, without ripples or stripes, achieving a mirror-like finish.
| Specification | Details |
|---|---|
| Product Name | Color changing machine |
| Model | OSM-GS-620 type |
| Mechanical Size | 2000mm long × 9800mm wide × 1520mm high |
| Effective Working Size | Width: 620mm, Thickness: 2-80mm, Length (shortest): 300mm |
| Conveying Speed | 5-20m/min |
Construction & Materials
- Shell made from 1.5mm cold-rolled plates, bent and welded
- Surface treated with liquid paint
- Frame constructed from 100×50mm channel steel
- Supporting wall made of 20cm A3 steel plate
Coating System
Two sets of lifting roller coating systems featuring:
- First group: Steel rollers and rubber rollers
- Second group: Laser rollers
- Lifting system combines mechanical and pneumatic controls
- Dual control methods eliminate defects and enhance coating quality
Key Components
- Coating Roller: Diameter: 205mm, Length: 720mm, high-quality Japanese polyurethane, customizable hardness (30-50 degrees), solvent-resistant
- Measurement Wheel: Diameter: 130mm, Length: 720mm, 45# seamless steel pipe, runout less than 0.05mm, electroplated and polished surface
- Laser Roller: Diameter: 150mm, Length: 720mm, 45# structure, laser engraved, hard chrome plated, runout less than 0.05mm
- Conveyor Roller: Diameter: 130mm, Length: 620mm, high-quality Japanese rubber, wear-resistant and flexible
- Scraper: Aluminum alloy holder with Swedish imported stainless steel blade
Power & Control Systems
- Each roller driven by independent hollow deceleration motor
- 4 sets of Taiwan Delta frequency converters for speed control
- Forward and reverse rotation adjustment capability
- 4 sets of hollow worm gear reducers with independent roller adjustment
- Control components: OMRON relays, CHNT contactors, CKC delays, Japan Izumi switches
- All electrical components comply with CE standards
Safety Features
- Leakage circuit breaker
- Motor overload protection
- Emergency stop switch
- Control circuit fuses
- Compliant with international safety standards

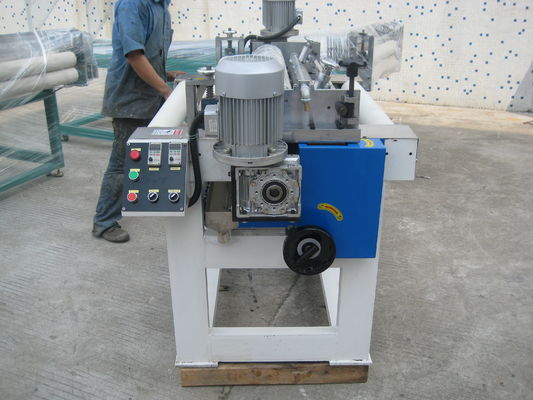

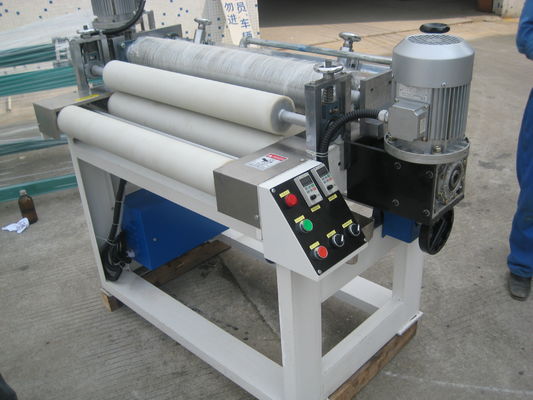

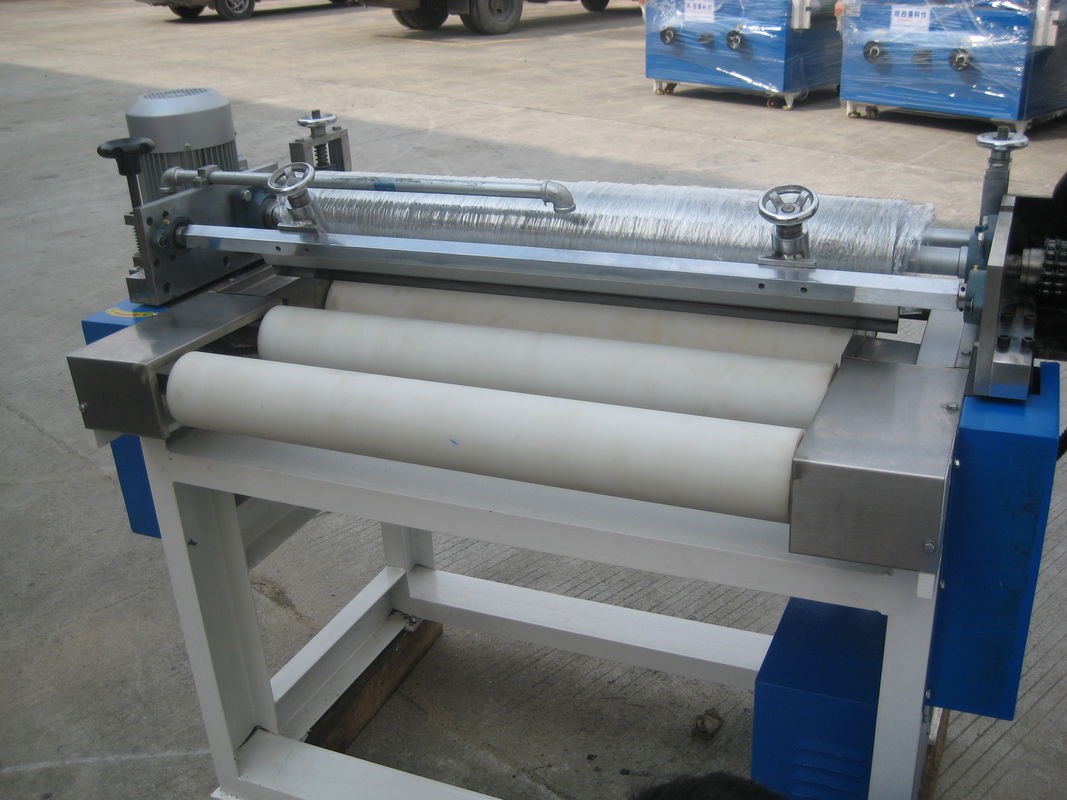

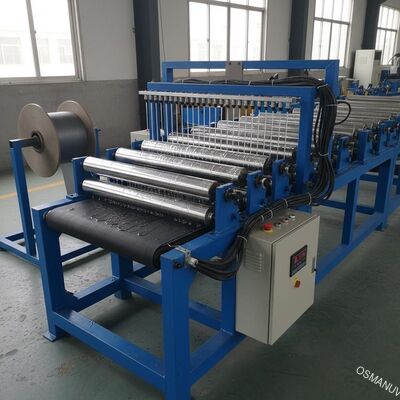

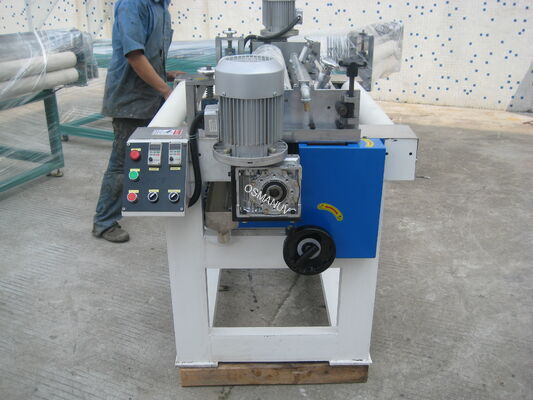

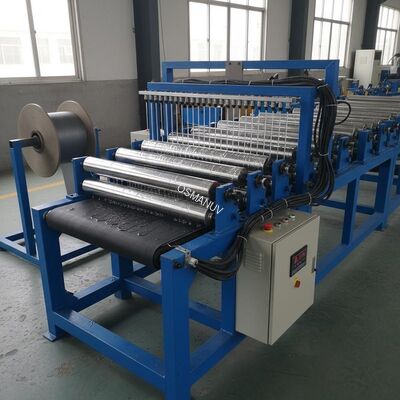

Product Images
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We provide sample testing with video documentation, and factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
