UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing

UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing
UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing
UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing

Large Image :  UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-GS-620 type
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing

Description
Product Name: Double Roll Coating Machine Color: Computer White / Green / Blue
Effecive Width: 620mm Coating Roll: Silicone Rollet
Power: 10 KW Weight: 900KG
Highlight:

620Mm Spray Coating Machine

,

KHV Spray Coating Machine

,

flat wood uv roller coater

UV Roller Spray Coating Machine For PVC Panel Flat Wood 620Mm KHV Bearing
Product Overview
This 620mm KHV Bearing UV Roller Spray Coating Machine is specifically designed for primer and topcoat coating applications on PVC panels, flat wood, MDF, aluminum, and panel furniture. The machine delivers uniform surface coating without ripples or stripes, achieving a mirror-like finish.
Technical Specifications
Product Name Color Changing Machine
Model OSM-GS-620 Type
Mechanical Size 2000mm long × 9800mm wide × 1520mm high
Effective Working Size Width: 620mm, Thickness: 2-80mm, Minimum Length: 300mm
Material Construction Shell: 1.5mm cold-rolled plates (bent and welded), Surface: Liquid paint treatment, Frame: 100×50mm channel steel, Supporting Wall: 20cm A3 steel plate
Conveying Speed 5-20m/min
Key Components & Features
  • Coating System: Two sets of lifting roller coating systems with mechanical and pneumatic control for optimal coating effect
  • Coating Roller: Diameter: 205mm, Length: 720mm, High-quality Japanese polyurethane, KHV bearings, adjustable hardness (30-50 degrees)
  • Measurement Wheel: Diameter: 130mm, Length: 720mm, 45# seamless steel pipe, runout less than 0.05mm, electroplated polished surface
  • Laser Roller: Diameter: 150mm, Length: 720mm, 45# structure, laser engraved, hard chrome electroplated, runout less than 0.05mm
  • Conveyor Roller: Diameter: 130mm, Length: 620mm, Japanese rubber construction, wear-resistant and solvent-resistant
  • Scraper: Aluminum alloy holder with Swedish imported stainless steel blade
  • Power System: Independent hollow deceleration motors for each roller, 4 sets of Taiwan Delta frequency converters
  • Control System: 4 sets of hollow worm gear reducers and frequency converters for independent roller adjustment
  • Electrical Components: OMRON relays, CHNT contactors, Taiwan Delta frequency converters, CKC delays, Izumi switches (CE compliant)
  • Safety Features: Leakage circuit breaker, motor overload protection, emergency switch, control circuit fuses

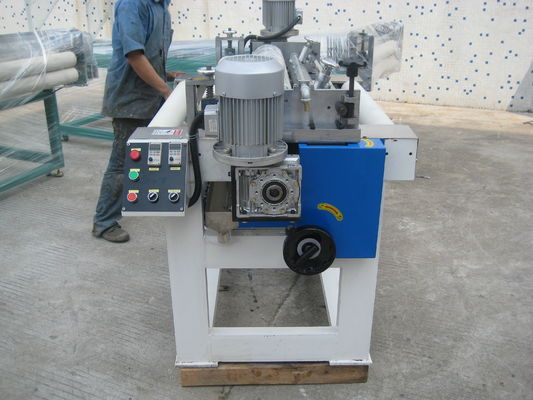

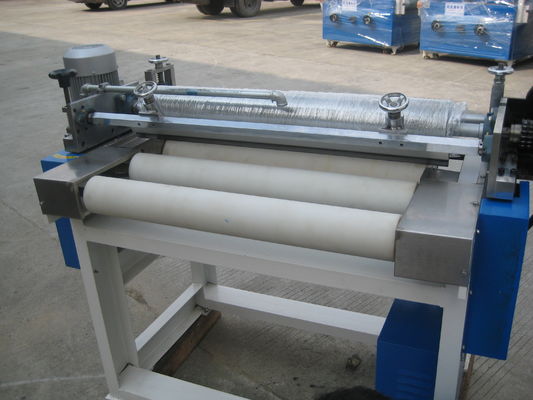

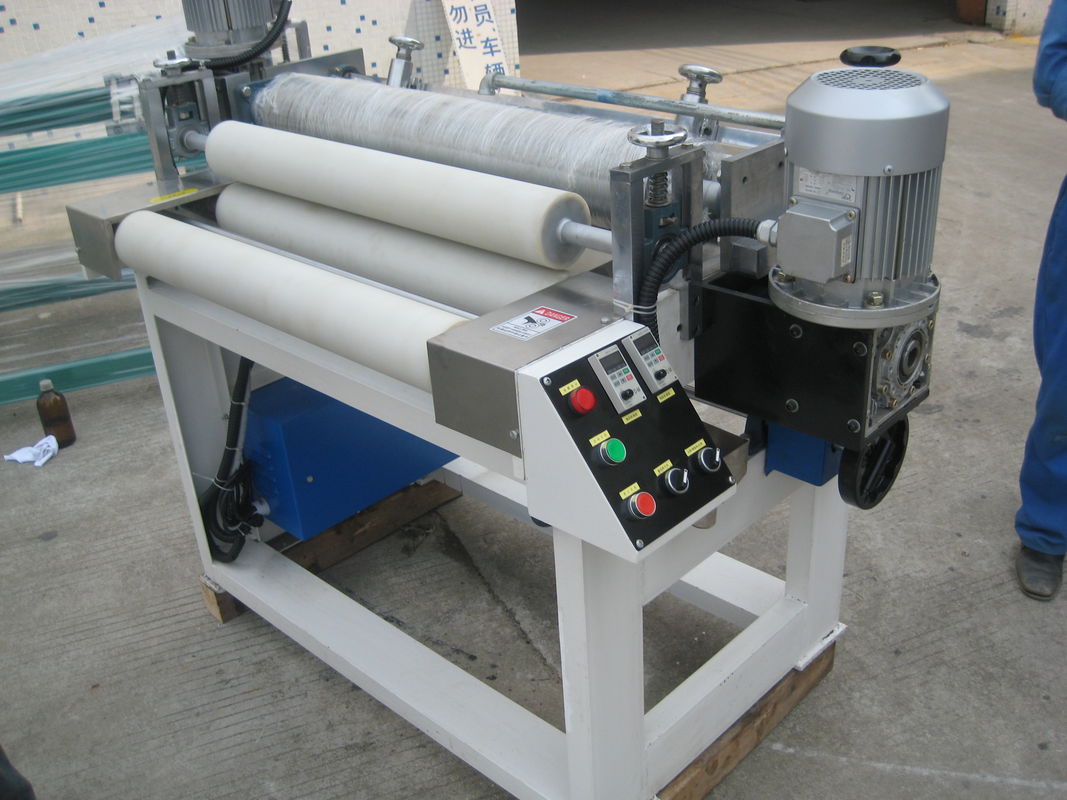

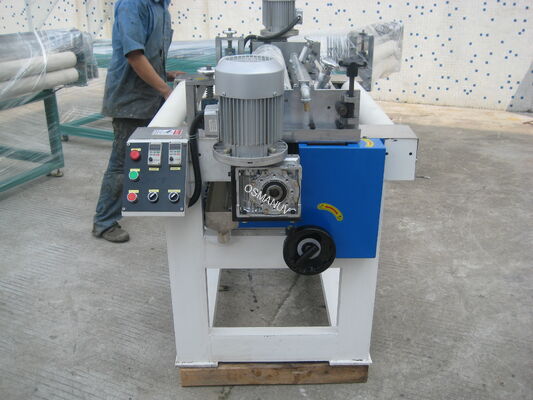

UV Roller Spray Coating Machine front view showing coating system and control panel UV Roller Spray Coating Machine side view displaying conveyor system and rollers
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We provide sample testing with video documentation, factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
