20m/Min Painting Uv Roller Coating Machine 20cm Steel Plate
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-GT-920-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Size: | 1000 Mm X 1800 Mm X 1420 Mm | Product Name: | Single Roll Coating Machine |
|---|---|---|---|
| Color: | Computer White / Green | Weight: | 900KG |
| Speed: | 5-20m/min | Total Power: | 5 KW |
| Highlight: | 20m/Min uv roller coating machine,20cm uv roller coating machine,20m/Min uv painting machine |
||
Product Description
20m/Min Painting Uv Roller Coating Machine 20cm Steel Plate

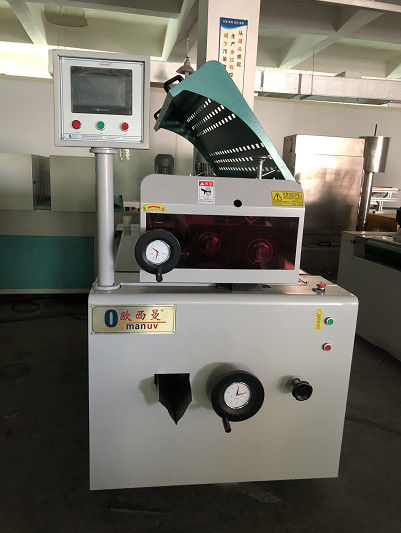

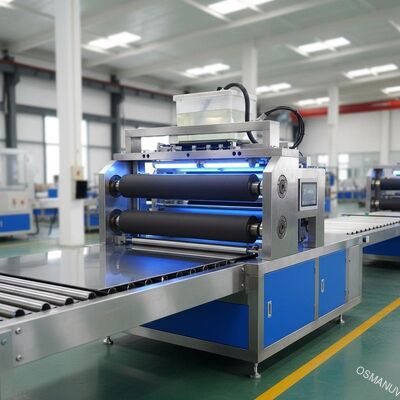

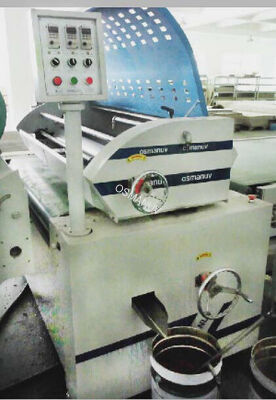

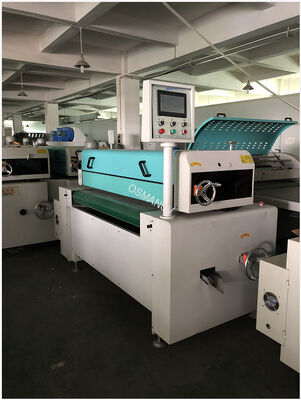

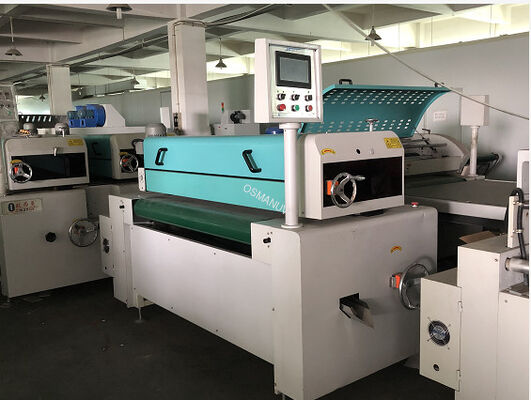

This UV roller coating machine is suitable for all kinds of wood, plastic, metal and other flat coatings. The surface of the paint processed by this machine is smooth, full, and has no color difference.
Technical Specifications
| 1 | Effective Working Size | Effective width: 920mm; Thickness: 3-80mm; Minimum length: 300mm |
| 2 | Material | Shell made of 1.5mm steel plate bent and welded, surface treated with liquid paint, support wall made of 20cm steel plate (A3 material) |
| 3 | Coating System | Single group roller coating system with steel rollers and silicone wheels, each group can be lifted and lowered independently |
| 4 | Glue Roller | Diameter: ￠250mm, length: 1070mm, made of high-quality Japanese silicone, wear-resistant, good elasticity, hardness customizable (30-50 degrees), withstands various solvents. Uses high-quality coupling drive, KHV bearings, Taiwan Delta inverter controls speed |
| 5 | Metering Wheel | Diameter: ￠150mm, length: 1070mm, 45# seamless steel tube welded by CO², surface finely ground, dynamic balance, runout less than 0.05mm, surface brightened by electroplating hard chrome and polishing. Direct plug-in connection transmission |
| 6 | Conveying Roller | Power: 1.5KW, diameter: ￠130mm, length: 920mm, 45# seamless steel pipe welded by CO², surface finely ground, dynamic balance, runout less than 0.05mm, surface brightened by electroplating hard chrome and polishing. Direct plug-in connection transmission |
| 7 | Conveyor Belt | Green PVC flat conveyor belt, stable operation with long service life |
| 8 | Working Height | 0-850mm (belt height from ground), roller height equipped with position indicator |
| 9 | Control System | 3 sets of Wanxin speed machine, 3 sets of Delta frequency converter, each roller can be adjusted independently |
| 10 | Safety Features | Leakage circuit breaker, motor overload protection, emergency switch, control line fuse, compliant with international safety standards |
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We can test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
