5KW Automatic Full Precision Single Roller Coating Equipment W1320mm

5KW Automatic Full Precision Single Roller Coating Equipment W1320mm

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-GT-1320-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Size: 1000 Mm X 2300 Mm X 14520 Mm Product Name: Single Roll Coating Machine
Color: Computer White / Green Weight: 900KG
Speed: 5-20m/min Total Power: 5 KW
High Light:

5KW Roller Coating Equipment

,

Roller Coating Equipment W1320mm

,

5KW reverse roll coater

Product Description

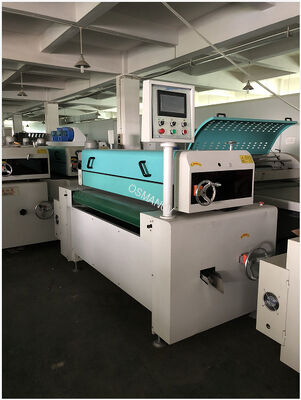

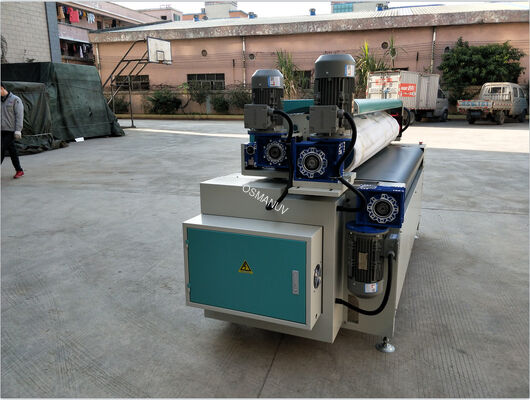

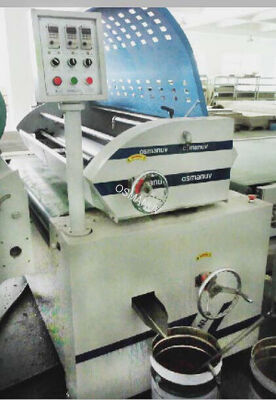

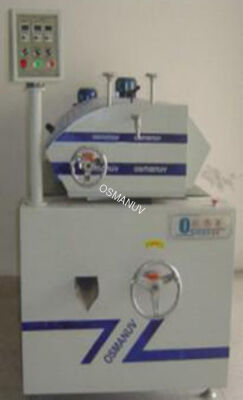

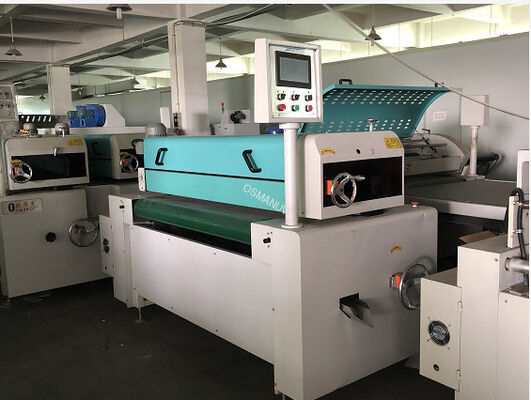

5KW W1320mm Automatic Full Precision Single Roller Coating Equipment



Description:



It is suitable for all kinds of wood, plastic, metal and other flat coatings. The surface of the paint processed by this machine is smooth, full, and no color difference.



Describe

 1 Effective working size a effective width: 1320mm; b, thickness: 3-80mmc, length (shortest): 300mm.
 2 Material:

The shell is made of 1.5mm steel plate bent and welded, the surface is treated with liquid paint, and the support wall is made of 20cm steel plate (A3 material)

 3 Coating part: A single group of roller coating system is adopted. Each group of systems includes steel rollers and silicone wheels. Each group of roller coating system can be lifted and lowered independently.
 4

Glue roller:


diameter: ¢250mm, length: 1470mm, made of high-quality Japanese silicone, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees -50 degrees), can withstand various solvents. Use high quality Coupling drive, bearing adopts KHV bearing, Taiwan Delta inverter controls glue roller speed.
 5 Metering wheel: Diameter: ¢150 mm, length: 1470mm, 45# seamless steel tube is welded by CO², the surface is finely ground, the balance is dynamic, the runout is less than 0.05mm, and the surface is brightened by electroplating hard chrome and polishing. Direct plug-in connection transmission, which can truly achieve the integration with the drive motor.
 6 Conveying roller:

power: 1.5KW, diameter: ¢130 mm, length: 1320mm. The 45# seamless steel pipe is welded by CO², the surface is finely ground, and the balance is dynamic, the runout is less than 0.05mm, and the surface is brightened by electroplating hard chrome and polishing. The direct plug-in connection transmission can truly achieve the integration with the drive motor.

 7 Conveyor belt: Green PVC flat conveyor belt is adopted, which is stable and has long service life.
 8 Working height: 0~850mm (the height of the belt from the ground), the height of the roller is equipped with a position indicator.

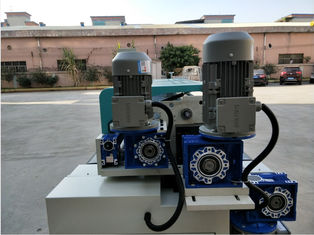

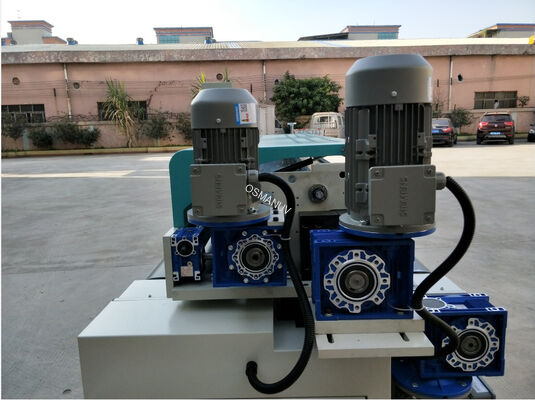

 9 Control system: 3 sets of Wanxin speed machine, 3 sets of Delta frequency converter, each roller can be adjusted independently.
 10 Safety device: This machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse, etc. in line with international safety standards





5KW Automatic Full Precision Single Roller Coating Equipment W1320mm 0

5KW Automatic Full Precision Single Roller Coating Equipment W1320mm 15KW Automatic Full Precision Single Roller Coating Equipment W1320mm 2



FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
