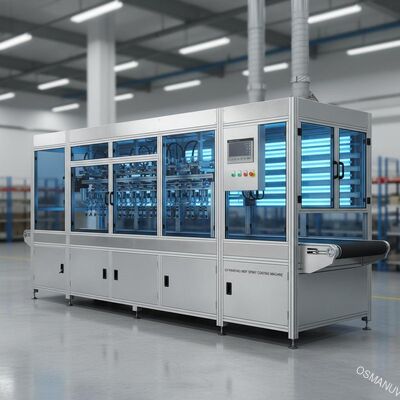

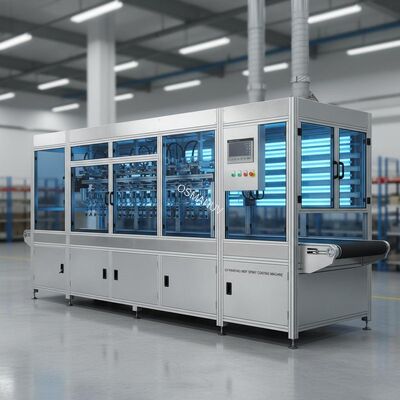

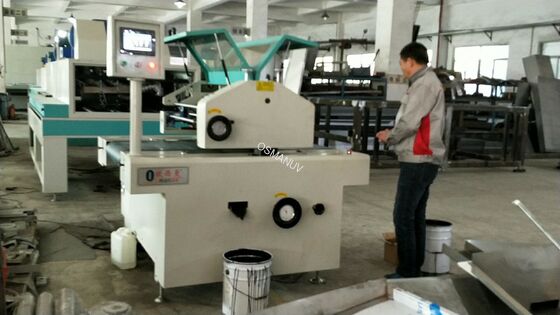

Effecive Width Uv Painting MDF Spray Coating Machine 180m/Min 620mm
Product Details:
Place of Origin: | CHINA |
Brand Name: | Osmanuv |
Certification: | ISO9001 And CE |
Model Number: | OSM-GS-620 type |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Box |
Delivery Time: | 35-45 Working days |
Payment Terms: | T/T, Western Union |
Supply Ability: | According to customer's demand |
Detail Information |
|||
Product Name: | Double Roll Coating Machine | Color: | Computer White / Green / Blue |
---|---|---|---|
Effecive Width: | 620mm | Coating Roll: | Silicone Rollet |
Power: | 10 KW | Weight: | 1500KG |
High Light: | 180m/min Spray Coating Machine,MDF Spray Coating Machine 620mm,MDF uv painting machine |
Product Description
620mm Effecive Width Uv Painting Spray Coating Machine 180m/Min
Description:
1 | Product name | Color changing machine |
2 | Model | OSM-GS-620 type |
3 | Features | This machine is widely used for the primer and topcoat coating of flat wood, MDF, aluminum, panel furniture, PVC panels, etc. The surface color after coating is uniform, without ripples or stripes, and it is as bright as a mirror. |
4 | Mechanical size | 2000mm long * 1500mm wide * 1520mm high |
5 | Effective working size | a effective width: 620mm, b thickness: 2-80mm, c length (shortest): 300mm |
6 | Material | The shell is made by bending and welding 1.5mm cold-rolled plates, the surface is treated with liquid paint, the frame is made of 100*50mm channel steel, and the supporting wall is made of 20cm steel plate (A3 material). |

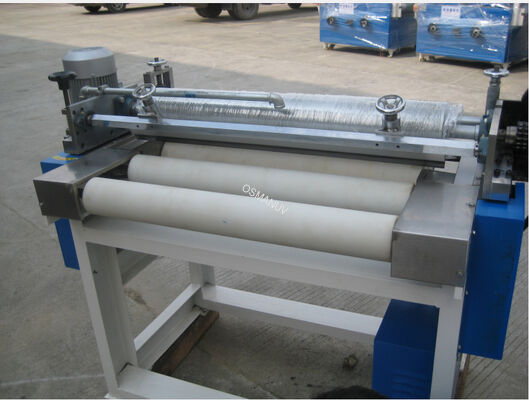

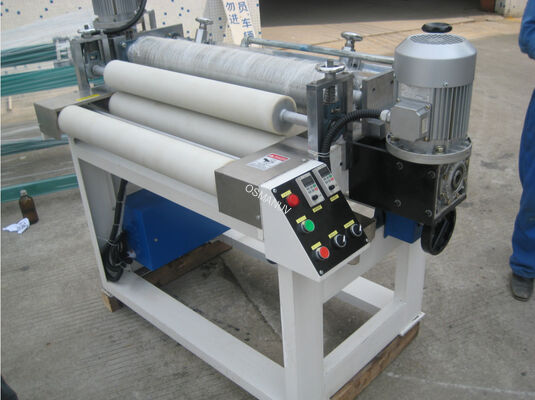

7 | Coating part | Two sets of lifting roller coating systems are adopted, the first group is composed of steel rollers and rubber rollers, the second group is composed of laser rollers, and the lifting system adopts mechanical and pneumatic two methods to control the ascent of the machine head at the same time. Decrease, effectively solve the defects of the mechanical type and the pneumatic type, thereby greatly improving the coating effect |
8 | Coating roller: |
diameter: 205mm, length: 720mm, made of high-quality Japanese polyurethane, wear-resistant, good elasticity, hardness can be customized according to customer requirements (between 30 degrees and 50 degrees), and can withstand various solvents. .Using high-quality coupling for transmission, the bearing adopts KHV bearing, and the Dilips inverter controls the speed of the rubber roller. |
9 | Measurement wheel |
Diameter: ¢130 mm, length: 720mm, using 45# seamless steel pipe welded by CO², the surface is finely ground and dynamically balanced, the runout is less than 0.05mm, and the surface is electroplated and polished to achieve a bright effect. The direct plug-in connection transmission can truly be integrated with the drive motor. |
10 | Laser roller | diameter ¢150mm, length: 720mm, adopts 45# structure, and is welded by CO² with seamless steel pipe. The surface is finely ground and dynamically balanced. The runout is less than 0.05mm. After laser engraving, the surface is electroplated with hard chrome and polished to achieve the best results. And it adopts high-quality coupling roller drive, the bearing adopts KHV bearing, and Taiwan Delta frequency converter controls the basicspeed. |
11 | Conveyor roller | diameter ¢130mm, length: 620mm, made of high-quality Japanese rubber, wear-resistant, Good flexibility and resistance to various solvents. It adopts high-quality coupling roller drive, KHV bearing, and Taiwan Delta frequency converter to control the basic speed. |
12 | Scraper |
Made of aluminum alloy scraper holder and Swedish imported stainless steel scraper blade, wear-resistant and durable. |
13 | Power part: |

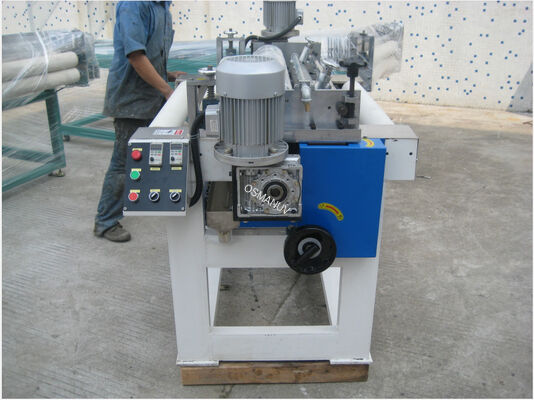

Each roller is driven by an independent hollow deceleration motor, 4 sets of Taiwan Delta frequency converters control speed, which can be adjusted for forward and reverse rotation. |
14 | Control system | 4 sets of hollow worm gear reducers and 4 sets of frequency converters are adopted, and each roller can be adjusted independently. |
15 | Conveying speed: | 5-20m/min. |
16 | Electrical appliances | OMRON relays, CHNT contactors, Taiwan Delta frequency converters, CKC brand delays, switches are produced by Japan's Izumi company, and all comply with CE standards. |
17 | Safety device | This machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control circuit fuse, etc. in line with international safety standards |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
