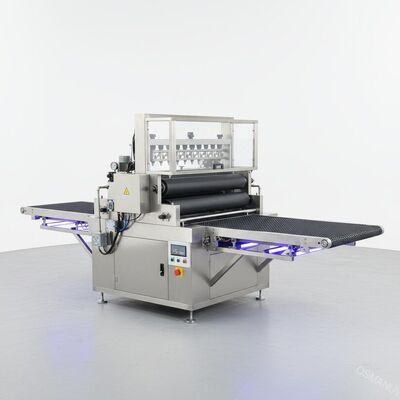

Double Roll 304ss 15m/Min Spray Coating Machine / Spot Uv Coater Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-GS-920 type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Double Roll Coating Machine | Color: | Computer White / Green / Blue |
|---|---|---|---|
| Effecive Width: | 920mm | Coating Roll: | Silicone Rollet |
| Power: | 10 KW | Weight: | 1500KG |
| Highlight: | Double roll Spray Coating Machine,15m/Min Spray Coating Machine,304ss spot uv coater machine |
||
Product Description
Double Roll 304ss 15m/Min Spray Coating Machine / Spot UV Coater Machine
Product Overview
ISO9001 certified 304 stainless steel spray coating machine with 15m/min operation speed for primer and topcoat applications.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Color Changing Machine |
| Model | OSM-GS-920 Type |
| Mechanical Size | 2000mm long × 1800mm wide × 1520mm high |
| Effective Working Size | Width: 920mm, Thickness: 2-80mm, Minimum Length: 300mm |
| Conveying Speed | 5-20m/min |
Construction & Materials
- Shell: 1.5mm cold-rolled plates, bent and welded with liquid paint surface treatment
- Frame: 100×50mm channel steel
- Supporting Wall: 20cm A3 steel plate
- Coating Roller: Ø205mm × 1020mm, high-quality Japanese polyurethane
- Measurement Wheel: Ø130mm × 1020mm, 45# seamless steel pipe
- Laser Roller: Ø150mm × 1020mm, 45# structure with seamless steel pipe
- Conveyor Roller: Ø130mm × 920mm, high-quality Japanese rubber
- Scraper: Aluminum alloy holder with Swedish imported stainless steel blade
Technical Features
- Dual lifting roller coating systems with mechanical and pneumatic control
- Independent hollow deceleration motor for each roller
- 4 sets of Taiwan Delta frequency converters for speed control
- KHV bearings and high-quality coupling transmission
- Surface runout less than 0.05mm for precision operation
- Hard chrome electroplating and polishing for optimal results
Control & Safety Systems
- Control System: 4 sets of hollow worm gear reducers with independent roller adjustment
- Electrical Components: OMRON relays, CHNT contactors, Taiwan Delta frequency converters
- Safety Features: Leakage circuit breaker, motor overload protection, emergency switch, control circuit fuse
- Compliance: CE standards and international safety standards

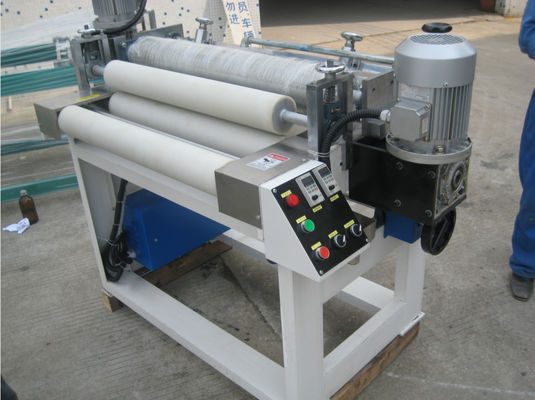

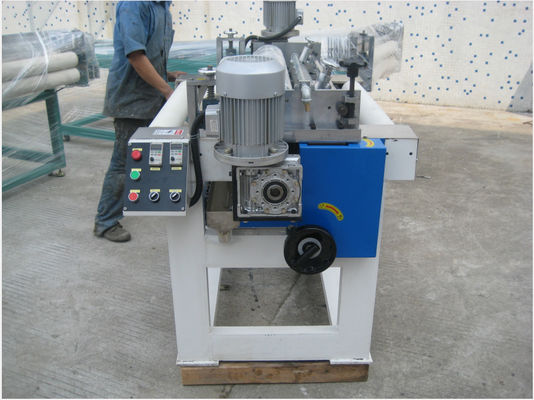

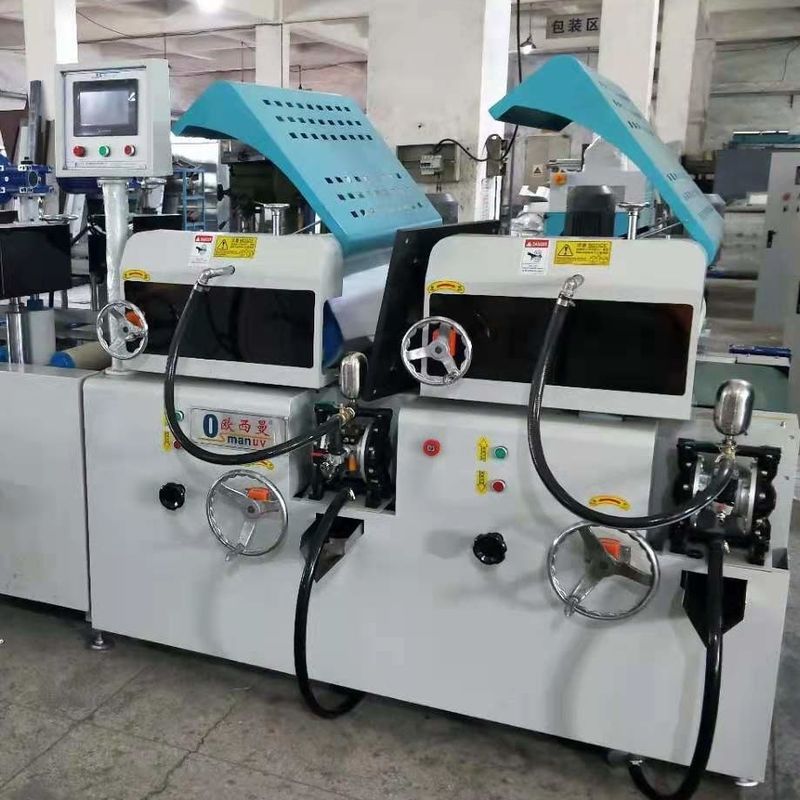

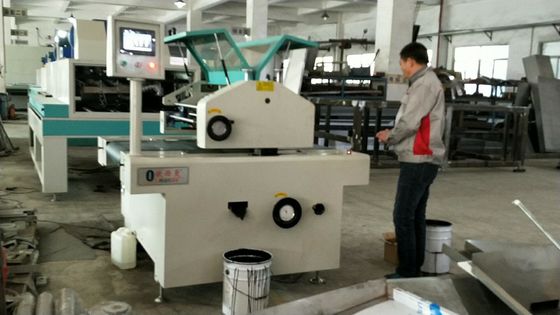

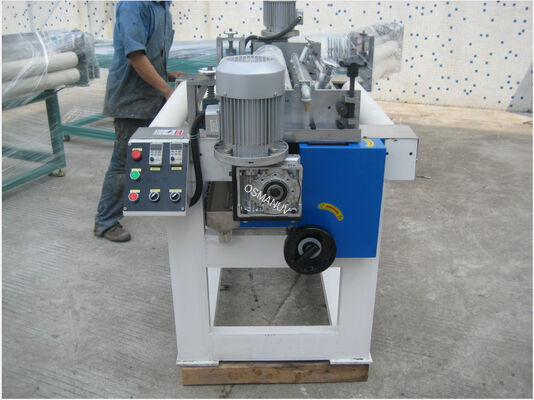

Product Images
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing with video documentation and welcome factory visits. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our products are manufactured according to GMP & ISO standards and have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
