220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-GTJ-1230I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Double Roll Coating Machine | Color: | Computer White / Green / Blue |
|---|---|---|---|
| Effecive Width: | 1320mm | Coating Roll: | Silicone Rollet |
| Power: | 10 KW | Weight: | 1500KG |
| Highlight: | 220V Roller Coating Equipment,2m/Min Roller Coating Equipment |
||
Product Description
220V 2m/Min Plastic Roller Coating Equipment With Good Plumpness
Product Overview
This advanced roller coating equipment delivers superior surface finishing with excellent plumpness and consistent color application for various materials.
- Versatile application for wood, plastic, and metal products
- Ensures smooth surface finish with excellent plumpness and no chromatic difference
- Independent transducer and reactor control for electrooptic and rubber rollers
- Imported PU doctor blade with anti-abrasive properties and solvent resistance
- Compatible with various paint types including PU, VU, NC with paint reclamation
- Precise coating control between 5-10g/m²
Technical Specifications
| Specification | Value |
|---|---|
| Effective working width | 1320 mm |
| Effective processing thickness | 2-50 mm |
| Minimum machining length | 300 mm |
| Transmission speed | 2-15 m/min |
| Cots roller diameter | ￠300 mm |
| Measuring wheel diameter | ￠180 mm |
| Diameter of anti-grain wheel | ￠100 mm |
| Pressure wheel diameter | ￠70 mm |
| Cots length | 1450 ±0.1 mm |
| Measuring wheel length | 1450 ±0.1 mm |
| Anti-grain wheel length | 1450 ±0.1 mm |
| Length of pressure wheel | 1220 mm |
| Machine inner width | 1650 mm |
| Machine length | 4000 mm |
| Machine height | Conveyor belt is 850±30mm above the ground |

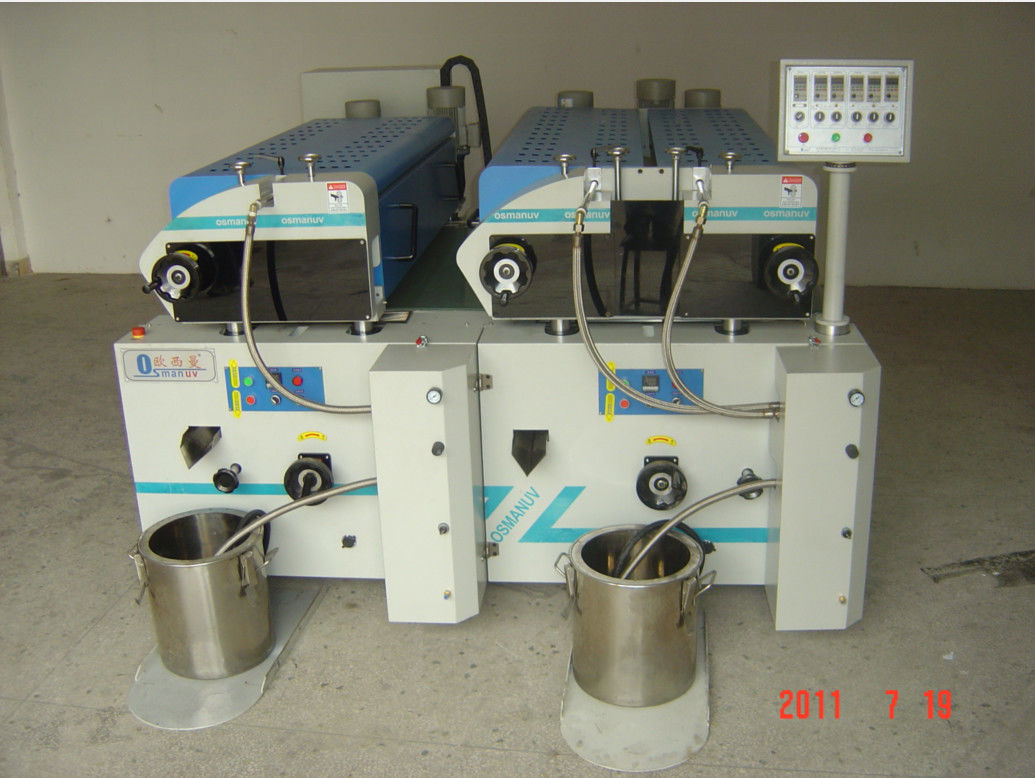

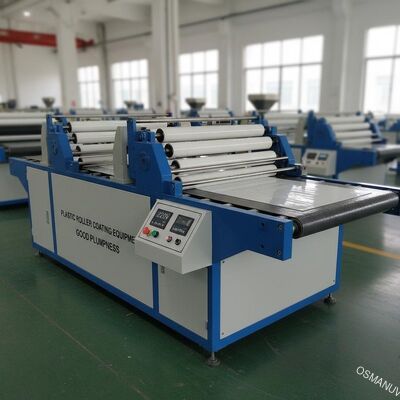

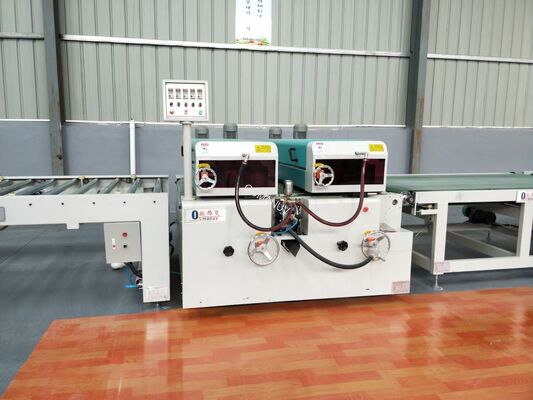

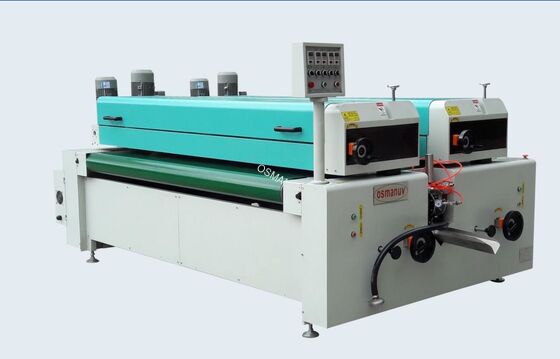

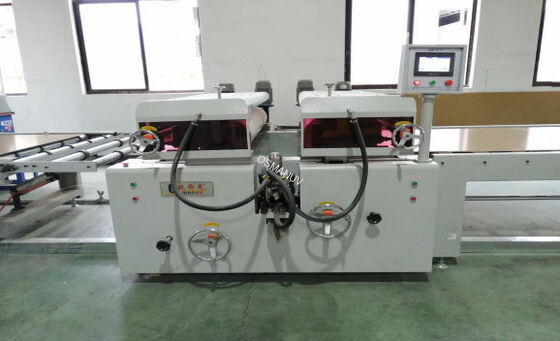

Product Images
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
