W1320mm 15m/Min Silicone Rollet Uv Coating Machine For Digital Print
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-GTJ-1320I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Double Roll Coating Machine | Color: | Computer White / Green / Blue |
|---|---|---|---|
| Effecive Width: | 1320mm | Coating Roll: | Silicone Rollet |
| Power: | 10 KW | Weight: | 1500KG |
| Highlight: | 15m/Min uv coating machine for digital print,W1320mm uv coating machine for digital print,15m/Min uv coating line |
||
Product Description

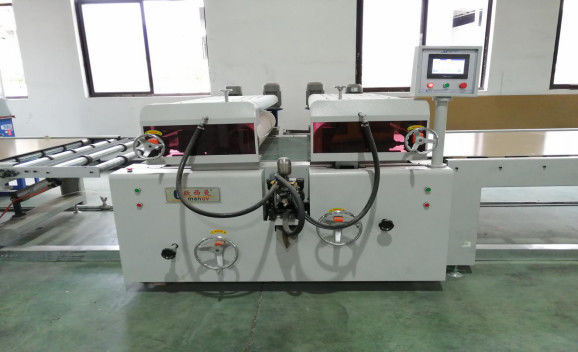

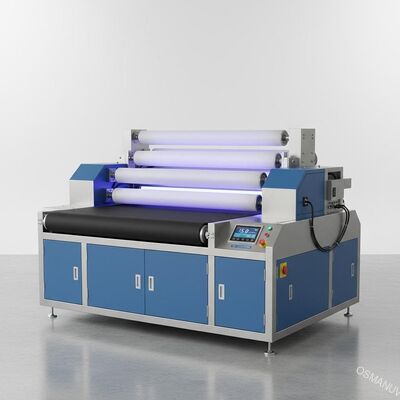

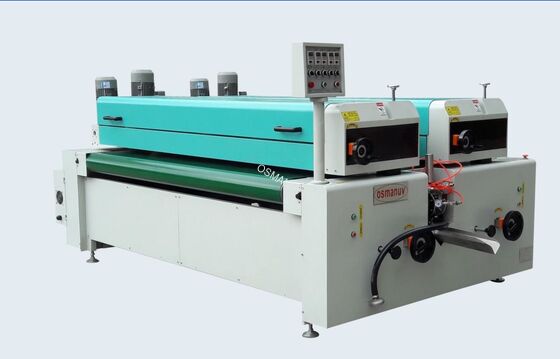

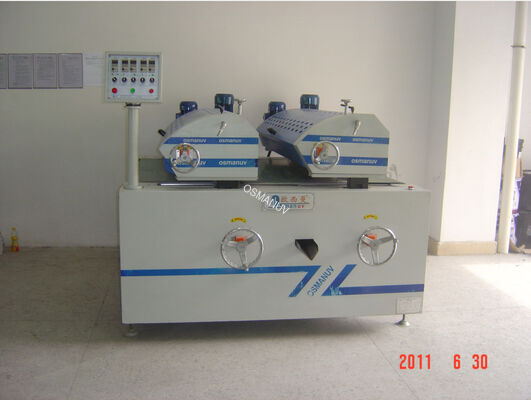

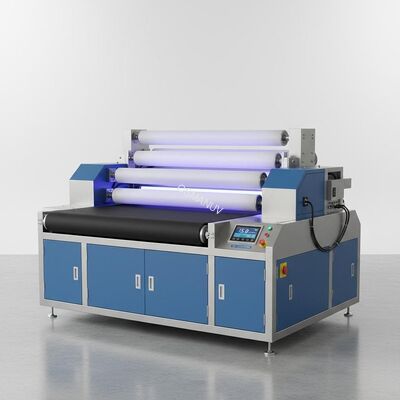

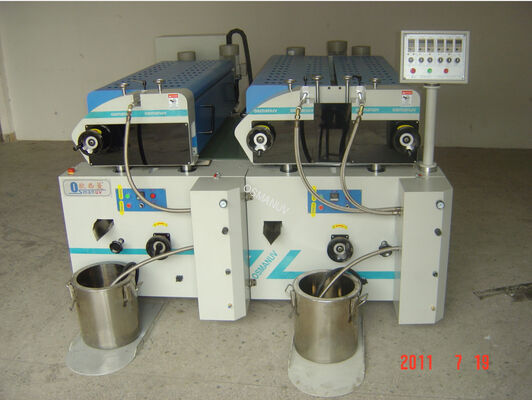

W1320mm 15m/Min Silicone Roller UV Coating Machine For Digital Print
Product Description
This UV coating machine is designed for digital print applications, capable of processing various materials including wood, plastic, and metal products.
| Versatile Material Compatibility | Processes wood, plastic, and metal products with smooth surface finish and excellent color consistency |
| Precision Control System | Independent transducer and reactor control for electrooptic and rubber rollers ensures high precision operation |
| Advanced Doctor Blade | Imported PU doctor blade provides superior abrasion resistance and solvent compatibility |
| Multi-Paint Compatibility | Handles various paint types including PU, VU, NC with zero-waste paint reclamation system |
| Precise Coating Control | Work piece coating thickness controlled between 5-10g/m² |
Technical Specifications
| Effective Working Width | 1320 mm |
| Effective Processing Thickness | 2-50 mm |
| Minimum Machining Length | 300 mm |
| Transmission Speed | 2-15 m/min |
| Coating Roller Diameter | ￠300 mm |
| Measuring Wheel Diameter | ￠180 mm |
| Anti-Grain Wheel Diameter | ￠100 mm |
| Pressure Wheel Diameter | ￠70 mm |
| Coating Roller Length | 1450 ±0.1 mm |
| Measuring Wheel Length | 1450 ±0.1 mm |
| Anti-Grain Wheel Length | 1450 ±0.1 mm |
| Pressure Wheel Length | 1220 mm |
| Machine Inner Width | 1650 mm |
| Machine Length | 4000 mm |
| Machine Height | Conveyor belt is 850±30 mm above the ground |
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
