50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness

50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness
50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness
50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness 50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness 50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness 50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness 50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness 50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness

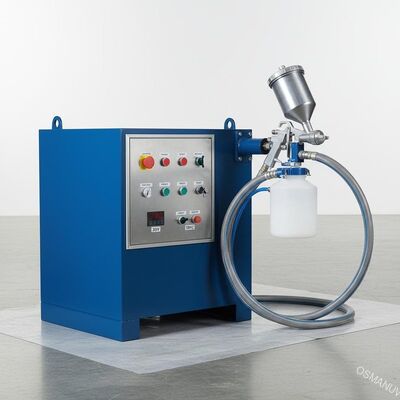

Large Image :  50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-GTJ-620I
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness

Description
Product Name: Double Roll Coating Machine Color: Computer White / Green / Blue
Effecive Width: 620mm Coating Roll: Silicone Rollet
Power: 10 KW Weight: 1500KG
Highlight:

50mm Spray Coating Machine

,

380V 50HZ Spray Coating Machine

,

50mm spray coater

50mm Thick 380V 50HZ Paint Spray Coating Machine With Good Plumpness
Product Overview

This advanced paint spray coating machine delivers exceptional surface finish with excellent plumpness, suitable for various materials including wood, plastic, and metal products.

Key Features
  • Produces smooth surfaces with excellent plumpness and no chromatic difference
  • Independent transducer and reactor control for electrooptic and rubber rollers ensuring precision
  • Imported PU doctor blade with anti-abrasive properties and resistance to all solvents
  • Compatible with various paint types including PU, VU, NC with zero wastage paint reclamation
  • Precise coating control between 5-10g/m²
Technical Specifications
Effective working width 620 mm
Effective processing thickness 2-50 mm
Minimum machining length 300 mm
Transmission speed 2-15 m/min
Cots roller diameter ￠300 mm
Measuring wheel diameter ￠180 mm
Diameter of anti-grain wheel ￠100 mm
Pressure wheel diameter ￠70 mm
Cots length 1450 ±0.1 mm
Measuring wheel length 1450 ±0.1 mm
Anti-grain wheel length 1450 ±0.1 mm
Length of pressure wheel 1220 mm
Machine inner width 1650 mm
Machine length 4000 mm
Machine height Conveyor belt is 850±30mm above the ground

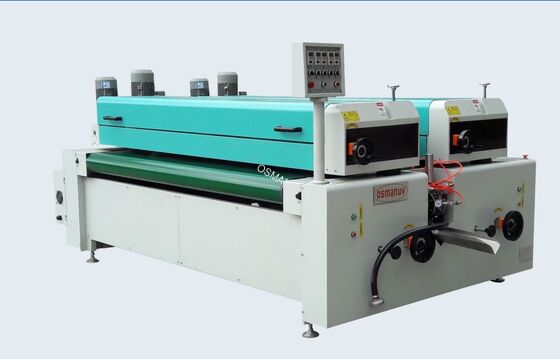

50mm Thick Paint Spray Coating Machine - Industrial coating equipment overview
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are welcome. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
