10KW 2m/Min Flat Offline Uv Roll Coating Machine With Conveyor Belt

Large Image : 10KW 2m/Min Flat Offline Uv Roll Coating Machine With Conveyor Belt

Product Details:

Place of Origin:	CHINA
Brand Name:	Osmanuv
Certification:	ISO9001 And CE
Model Number:	OSM-GTJ-920I

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Box
Delivery Time:	35-45 Working days
Payment Terms:	T/T,Western Union
Supply Ability:	According to customer's demand

Contact Now

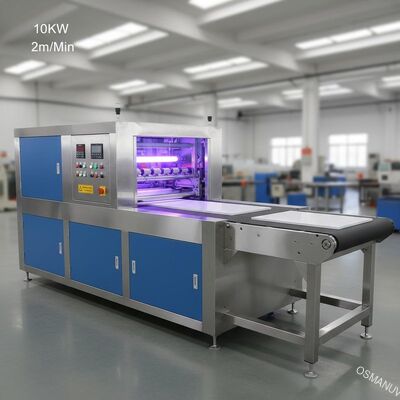

10KW 2m/Min Flat Offline Uv Roll Coating Machine With Conveyor Belt

Description

Product Name:	Double Roll Coating Machine	Color:	Computer White / Green / Blue
Effecive Width:	920mm	Coating Roll:	Silicone Rollet
Power:	10 KW	Weight:	1500KG
Highlight:	10KW roll coating machine , 2m/Min roll coating machine , 10KW offline uv coating machine

10KW 2m/Min Flat Offline UV Roll Coating Machine With Conveyor Belt

Product Overview

This advanced UV roll coating machine is designed for coating various materials including wood, plastic, and metal products. It ensures smooth surface finishes with excellent plumpness and no chromatic differences.

Key Features

Electrooptic roller and rubber roller independently controlled by transducer and reactor for precision operation
Imported PU doctor blade that is anti-abrasive and resistant to all solvents
Compatible with various paint types including PU, UV, NC, and more
Paint reclamation system eliminates wastage
Work piece coating control between 5-10g/m²

Technical Specifications

Effective working width	920 mm
Effective processing thickness	2-50 mm
Minimum machining length	300 mm
Transmission speed	2-15 m/min
Coating roller diameter	￠300 mm
Measuring wheel diameter	￠180 mm
Diameter of anti-grain wheel	￠100 mm
Pressure wheel diameter	￠70 mm
Coating roller length	1450 ±0.1 mm
Measuring wheel length	1450 ±0.1 mm
Anti-grain wheel length	1450 ±0.1 mm
Length of pressure wheel	1220 mm
Machine inner width	1650 mm
Machine length	4000 mm
Machine height	Conveyor belt is 850±30 mm above the ground

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.

How can I verify your machine quality?

We can test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.

What certifications do you have?

Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.

What is your Quality Warranty?

One year warranty with lifelong maintenance and technical support.
