Vacuum Spraying Production Line / Coating Line Machine ISO9001 400W

Vacuum Spraying Production Line / Coating Line Machine ISO9001 400W

Product Details:

Place of Origin: China
Brand Name: OSMANUV
Certification: ISO9001
Model Number: GX-ZD-100/PT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 45work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Color: Grass Green Production Capacity: 3T
Name: Vacuum Spraying Size: Length 2000mm*Width 1400mm*Height 2200mm
Warranty: One Year Power(w): 380VAC/50HZ
High Light:

ISO9001 Spraying Production Line

,

ISO9001 Coating Line Machine

,

400W Coating Line Machine

Product Description

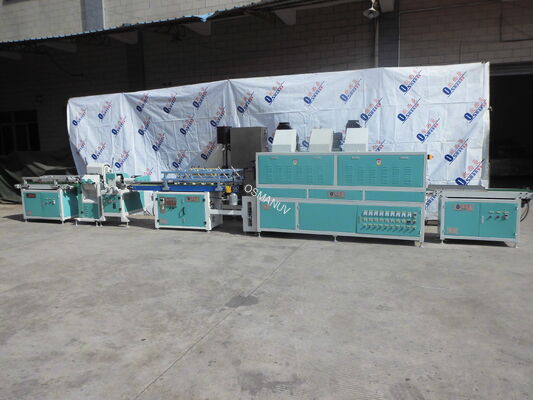

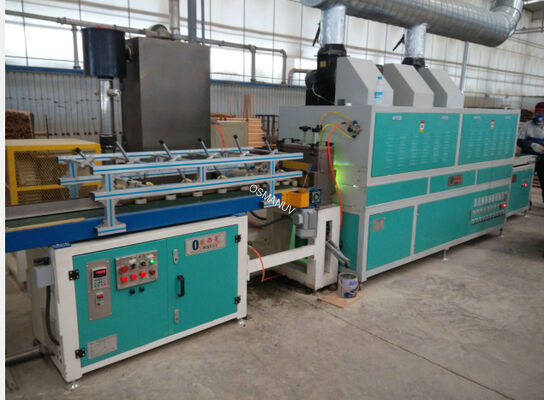

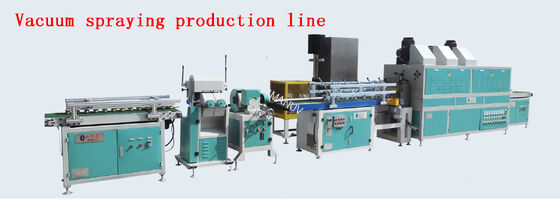

ISO9001 400W Vacuum Spraying Production Line / Coating Line Machine



Description:




▊3m roller conveyor
1 Product Name Roller Conveyor.
2 Model OSM-GL-400W type
3 Features Suitable for all kinds of panel furniture, calcium silicate board, solid wood composite floor, flat board crafts, bamboo and wood curtains, etc.Centering and conveying of workpieces in water operation.
4 Mechanical dimensions 3000mm long × 700mm wide × 850mm high. (Can be customized according to actual needs).
5 Power supply voltage 220V, 50HZ.
6 Material

The shell is made by bending and welding 1.5mm cold-rolled plates, and the surface is treated with electrostatic powder paint, and equipped with adjustable foot cups, which is sturdy and durable.

7 Conveying method ¢60mm driving roller conveying, width: 400mm, long service life, stable conveying.
8 Conveying direction: from left to right.
■Vacuum spraying machine (existing)
1 Product name Vacuum spraying machine
  2 Model: GX-ZD-400/PT
 3 Application: UV and water-based paint spraying treatment for furniture lines, photo frames, curtains, door cover lines, corner lines, and various line profiles with complex products.
4 Specifications: length 2000mm*width 1400mm*height 2200mm (according to the actual size).
5 Power supply 380VAC/50HZ
6 Power: total power 13KW
7 Machining diameter ≤60 mm
8 Minimum processing length: 400mm
9 Material The outer shell is made of cold-rolled plate, the thickness is 1.5mm, and the surface is treated with liquid paint, which is wear-resistant and corrosion-resistant. The inner wall of the vacuum part is made of 1.5mm304# stainless steel plate.
10 Painting part The atomization coating process is carried out in the vacuum box, and the coating is 100% recycled.
11 Electrical part use OMRON relay, CHNT contactor, Delta frequency converter, Wanxin decelerating motor, delay time adopts CKC brand, switch adopts Japanese Izumi company production, all comply with CE standards.
12 Safety devices: leakage circuit breakers, over-temperature protection, transformer motor overload protection, control circuit fuses... all comply with international safety standards.
13 Conveying speed 5-15m/min.
14 Conveying direction from left to right.
15 Working height 850±50mm.



■6m heating leveling machine



1 Product name 6m heating leveling machine.
2 Model OSM-IR-400
3 Specifications 6000mm long × 830mm wide × 1540mm high.
4 Material The outer shell of the heating zone is made of A3 board, and insulation cotton is added in the middle for heat preservation.
5 Lamp: adopts Taiwanese quartz heating tube with good heating effect.
6 Effective leveling width: 400mm.
7 Conveyor belt

stainless steel mesh belt is used for conveying.

8 Transmission system: The transmission motor adopts Taiwan Wanxin gear reducer.
9 Control system adopts Taiwan Delta frequency converter, the speed can be adjusted 5-20 meters per minute, and there is a speed digital display.
10 Control system:

use BKC thermostat to control the temperature required for work, temperature: normal temperature -100℃ adjustable.

11 Electrical part: BKC temperature controller, CHNT contactor, Taiwan Delta frequency converter, switch adopts Japanese Izumi switch, etc. All imported electrical appliances that meet international standards.
12 Safety system over-temperature preventer, motor overload protection, control circuit insurance, emergency stop switch, etc... All electrical appliances conform to the first-class products of international standards.



■Six lamps UV curing machine



1 Product name UV light curing machine.
2 Model OSM-UV-400Ⅲ.
3 Features This machine can cure UV coatings in a short time through UV energy, which is efficient, energy-saving and environmentally friendly. Mechanization can greatly improve production efficiency, and is not affected by its external conditions to product quality problems. It is widely used for drying and curing all kinds of woodware, aluminum plates, acrylic plates, calcium silicate plates, PVC plates, hardware accessories and other surfaces.
4 Mechanical dimensions: 2800 length×1080mm width×1920mm height. (According to actual size).
5

Effective processing size: effective width: 400mm, thickness: 2-80mm, length (shortest): 500mm.

6 Power supply voltage: 380V 50HZ, three-phase five-wire system.
7 Material: The outer shell is made of cold-rolled plate with a thickness of 1.5mm. The surface is treated with liquid paint, which is wear-resistant and corrosion-resistant. The UV section is insulated with double-layer steel plates, which can effectively reduce the cooling effect.
8 Lamp Use British PRIMARC 5.6KW Length: 6 560mm mercury lamps. The height and angle of the lamp tube in the UV furnace can be adjusted, which is suitable for ultraviolet light curing of various products.
9 Reflector It is made of aluminum and is integrally formed with imported alauod reflective lenses inside, which can increase the UV reflection efficiency by 38%.
10 Transmission system stainless steel mesh belt conveyor, width: 350mm, with high temperature resistance, UV resistance and other characteristics. Make the machine run more smoothly. It is controlled by Beiji reducer and Delta frequency converter, and the speed can be adjusted to 5-20 m/min.
11 Heat dissipation system forced air cooling, the case is an integrated design, sufficient heat dissipation and good effect.
12 Light source control system:

a. Each group of lamps can be controlled independently, and is equipped with strong and weak light, the second level of light intensity is 70%, 100% dimmable.


b. The lamp is equipped with an LCD usage time recorder, which records the service life of the lamp and can be reset to zero.

13 Electrical part OMRON relay, Wanxin gear reducer motor, Delta frequency converter, CHNT contactor, CKC brand for time delay, and Japanese Izumi company production for switch, all complying with CE standards.
14 Safety devices leakage circuit breakers, over-temperature protection, transformer motor overload protection, control circuit fuses... all comply with international safety standards.
15 Conveying method:

from left to right.

16 Working height: 850-900mm adjustable, (the height from the ground to the conveyor belt)









Vacuum Spraying Production Line / Coating Line Machine ISO9001 400W 0Vacuum Spraying Production Line / Coating Line Machine ISO9001 400W 1Vacuum Spraying Production Line / Coating Line Machine ISO9001 400W 2


FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
