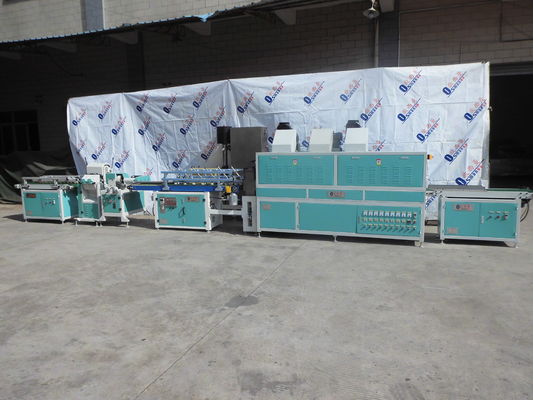

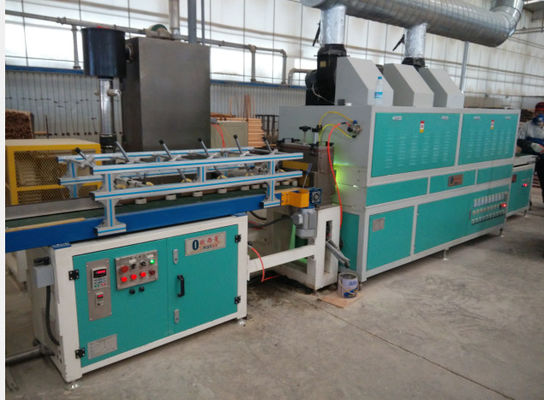

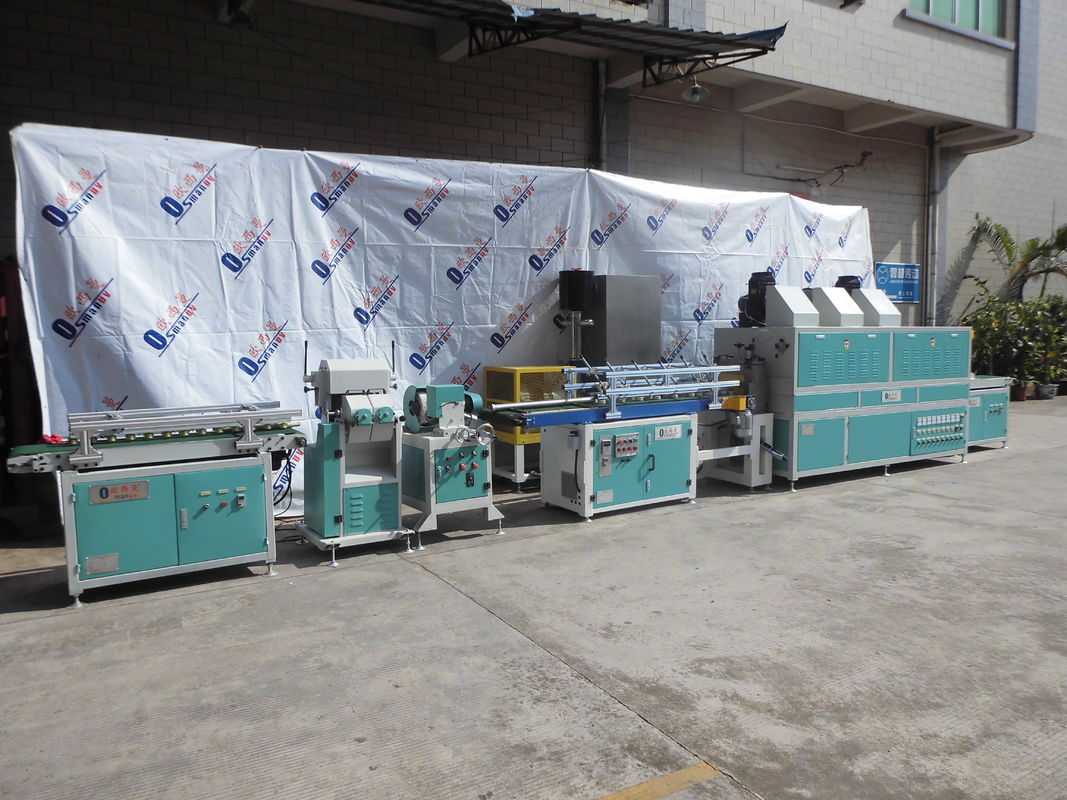

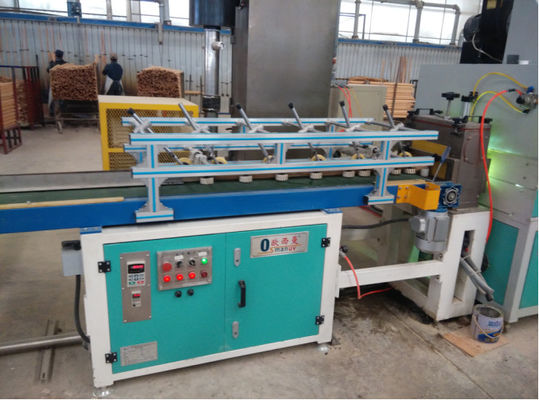

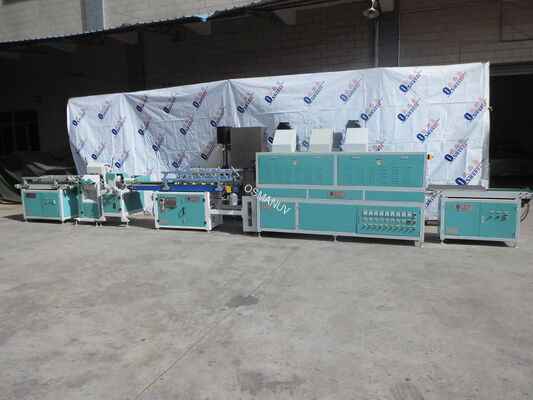

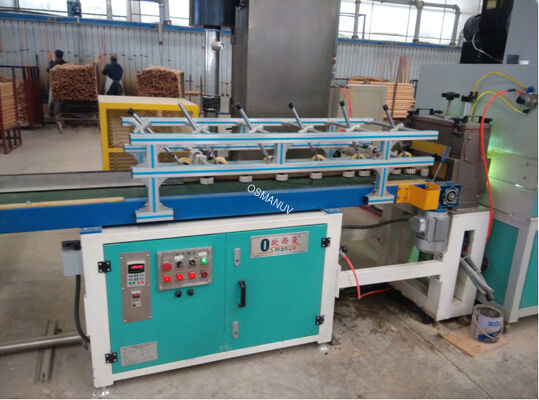

UV Painting Spray Coating Machine CHNT Contactor Suppliers
13KW Spray Coating Machine
,13KW uv painting machine
,5m/Min Spray Coa、ing Machine
| No. | Parameter | Specification |
|---|---|---|
| 1 | Product Name | Vacuum Spraying Machine |
| 2 | Model | GX-ZD-100/PT |
| 3 | Application | UV and water-based paint spraying treatment for furniture lines, photo frames, curtains, door cover lines, corner lines, and various line profiles with complex products |
| 4 | Specifications | Length 2000mm × Width 1400mm × Height 2200mm (according to actual size) |
| 5 | Power Supply | 380VAC/50HZ |
| 6 | Power | Total Power 13KW |
| 7 | Machining Diameter | ≤60 mm |
| 8 | Minimum Processing Length | 400mm |
| 9 | Material | Outer shell made of cold-rolled plate (1.5mm thickness) with liquid paint surface treatment for wear and corrosion resistance. Inner wall of vacuum part made of 1.5mm 304# stainless steel plate |
| 10 | Painting Part | Atomization coating process carried out in vacuum box with 100% coating recycling |
| 11 | Electrical Part | Uses OMRON relay, CHNT contactor, Delta frequency converter, Wanxin decelerating motor, CKC brand delay time, Japanese Izumi company switches - all comply with CE standards |
| 12 | Safety Devices | Leakage circuit breakers, over-temperature protection, transformer motor overload protection, control circuit fuses - all comply with international safety standards |
| 13 | Conveying Speed | 5-15m/min |
| 14 | Conveying Direction | From left to right |
| 15 | Working Height | 850±50mm |
-
