Uv Varnish Spray Coating Machine 180m/Min With CKC Delay
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-PT-1320P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Type: | Newsprint Paper,paper Making Machine,writing Paper | Processing Type: | Paper Slitting And Rewinding Machine,daily Life Use Paper,Pulp Molding Type |
|---|---|---|---|
| Voltage: | 220V50HZ/380V50HZ | Power(w): | 60KW |
| Warranty: | One Year | Working Speed: | 50-100m/min,180m/min |
| Highlight: | 60KW Spray Coating Machine,180m/Min Spray Coating Machine,60KW uv varnish coating machine |
||
Product Description
UV Varnish Spray Coating Machine 180m/Min With CKC Delay
60KW UV Varnish Spray Coating Machine
High-performance automatic spraying system designed for efficient UV varnish application at speeds up to 180m/min.
Key Features
- Japanese Mitsubishi PLC with man-machine interface
- Mitsubishi servo motor and inverter for mechanical stability
- American Graco pumps and large-caliber spray guns
- Taiwan high-speed slider module system
- Effective spraying width: 1300mm
Conveyor System
| Conveyor Belt | Acid and alkali resistant PU belt with paint recovery and cleaning devices |
| Conveying Speed | 1-5 m/min |
Painting System

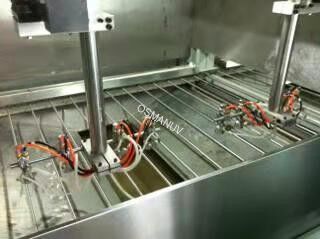

| Spray Guns | 4 American GRACO automatic spray guns (1.1mm caliber) |
| Oil Supply | Taiwan Polaroid pressure regulating system |
| Spray Gun Layout | Two spraying tracks with 2 guns each, controlled by OMRON infrared photoelectric induction |
| Maximum Stroke | 3400mm reciprocating |
Spray Booth Air Filtration
- High-efficiency air filter for dust removal
- Paper paint filter system for exhaust gas emission
Mechanical Configuration
| Observation | Front glass window for monitoring sprayer operation |
| Ventilation | Two high-efficiency fans for exhaust and fresh air intake |
| Housing Material | 1.5mm cold-rolled plates with 304# stainless steel mirror panel interior |
| Electrical Components | OMRON relay, CKC delay, Schneider contactor, Chint leakage circuit breaker |
| Safety Devices | Leakage circuit breakers, control circuit fuses, emergency switches |
Machine Control
| Interface | Weilun man-machine interface |
| Control System | Delta PLC control |
| Drive System | Mitsubishi servo motor for sliding rail drive |
Warranty
| Machine Warranty | One year for whole machine |
| Electrical Warranty | Half year for electrical components |
| Air Filter | Not covered by warranty - cleanable or replaceable |
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing with video documentation, factory visits, and our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
