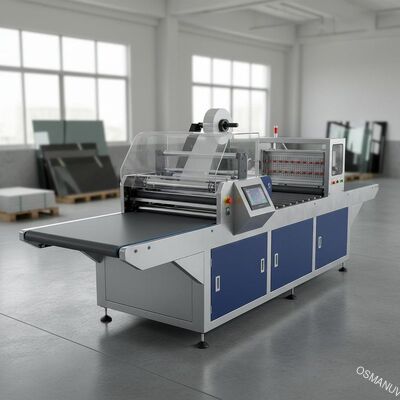

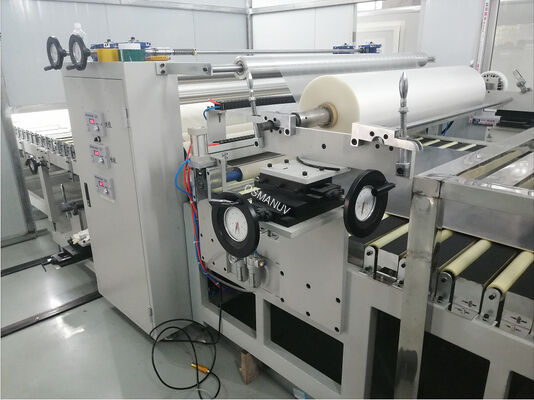

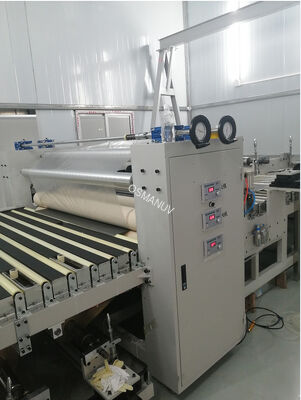

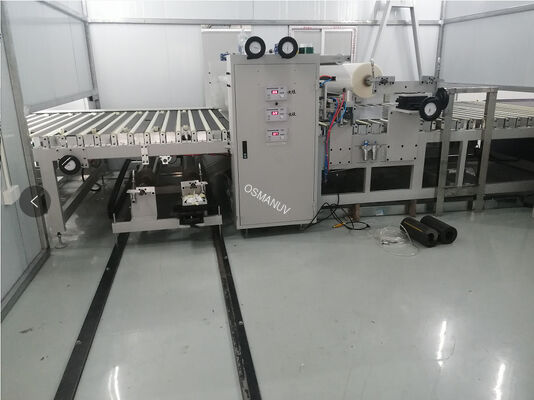

Laminating Machine with Automatic Film Cutting UV Coater Machine For glass,board,pvc board,display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | 1320-FMJ-Ⅰ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T,Western Union |
|
Detail Information |
|||
| Product Name: | Laminating Machine | Color: | White |
|---|---|---|---|
| Conveying Speed: | 1-20 M/min | Machine Size: | 3000mm×1550mm×1200mm |
| Machine Length: | 500 Mm | Effective Working Width: | 0-1320 Mm |
| Effective Conveying Thickness: | 3-80 Mm | Machine Direction: | From Left To Right |
| Highlight: | 3.5KW Face Mask Making Machine,L2196mm 3ply Face Mask Making Machine,L2196mm Medical Mask Production Machine |
||
Product Description

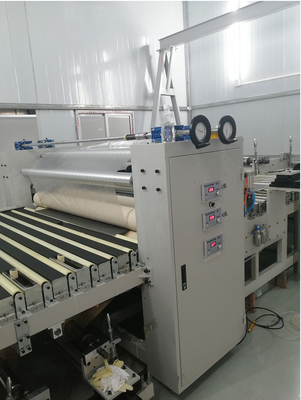

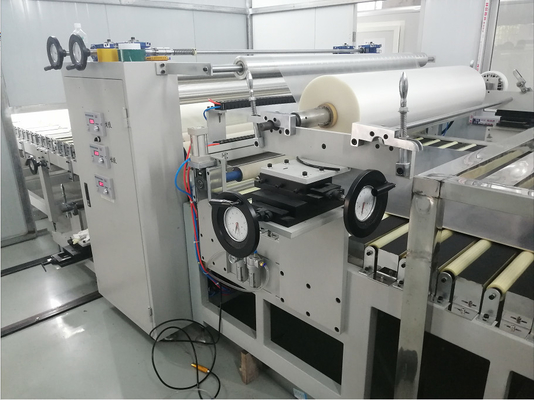

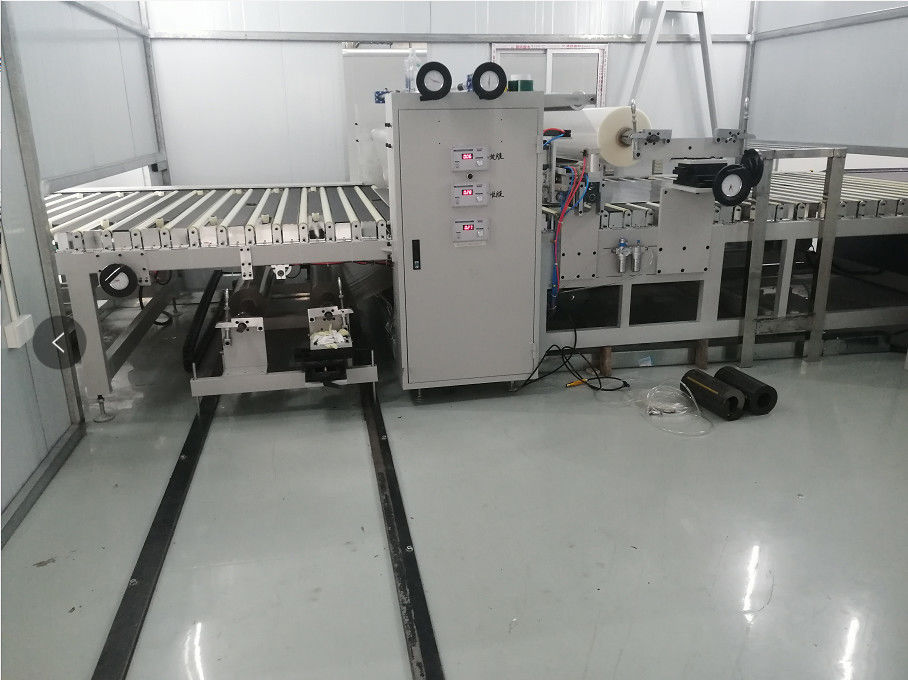

Laminating Machine with Automatic Film Cutting UV Coater Machine
This advanced laminating machine with automatic film cutting system is designed for glass, board, PVC board, and display screen applications. Featuring double-station film release for continuous operation without stopping.
Key Features
- Double-station film release for alternate use
- Continuous operation without production line stoppage
- Automatic film cutting system
Technical Specifications
| Specification | Value |
|---|---|
| Effective working width | 0-1320 mm |
| Effective conveying thickness | 3-80 mm |
| Minimum conveying length | 300 mm |
| Conveying speed | 1-20 m/min |
| Diameter of driving roller | ￠150 mm |
| Diameter of auxiliary drive roller | ￠150 mm |
| Driving roller length | 1320 mm |
| Length of auxiliary drive roller | 1320 mm |
| Machine length | 500 mm |
| Machine direction | From left to right |
| Machine height | Conveyor belt is 850±30mm above ground |
| Machine size | 3000mm×1550mm×1200mm |
Construction Details
The transmission wheel is manufactured from 45# seamless steel pipe welded by CO², undergoes quenching and tempering, with surface grinding and embossing. It features dynamic balancing with runout less than 0.03mm, hard chrome plating, and direct plug-in connection transmission for true integration with the drive motor. The system utilizes NSK bearings and Taiwan Delta frequency converter for precise rubber roller speed control, maintaining speeds of 2-20M/min.
We also provide UV Coater Machines
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We conduct sample trials on our machines and provide video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
