• 6KW 10M/Min Laser Engraving Machine / Coating Line Machine
  • 6KW 10M/Min Laser Engraving Machine / Coating Line Machine
6KW 10M/Min Laser Engraving Machine / Coating Line Machine

6KW 10M/Min Laser Engraving Machine / Coating Line Machine

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: OSM-AR-1320A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Ar Film Coating Machine Color: Computer White / Green
Size: L:4000 Mm X H:2450 Mm X W:1300mm Inside The Machine Width: 1650 Mm
Coating Weight: 2-15g/m² Total Power: 6KW
High Light:

6KW Laser Engraving Machine

,

10M/Min Laser Engraving Machine

,

6KW Coating Line Machine

Product Description

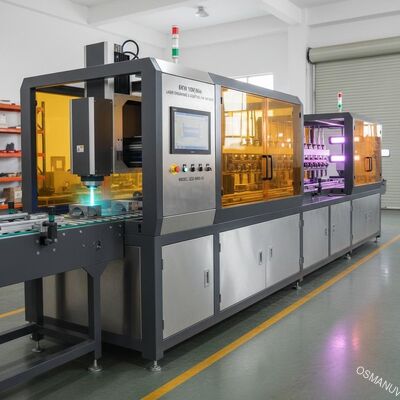

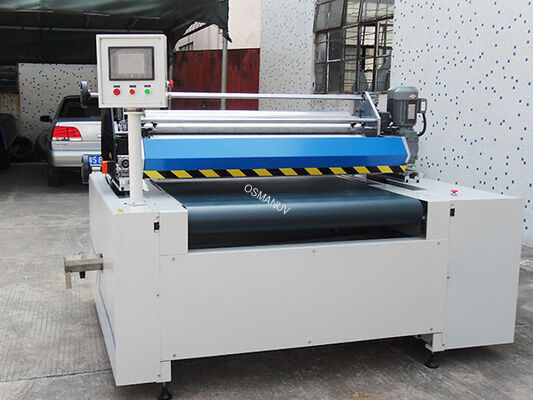

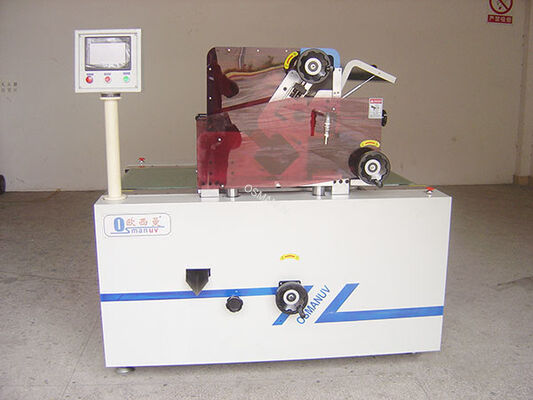

6KW 10M/Min Laser Engraving Machine / Coating Line Machine



Description:

1 This machine is suitable for rolling all kinds of primers and topcoats. The driving power is Mitsubishi servo motor.
2 Cots are made of Japanese high quality transparent polyurethane (PU adhesive), super wear-resistant, because of excellent elasticity, hardness can be customized according to customer requirements (45 degrees - 50 degrees) between, can resist industrial alcohol.The coupling device is driven by high-quality anti-vibration coupling, bearing is made of Japan (NSK) bearing, and the speed of cots is controlled by Taiwan Taida frequency converter, the speed is controlled within 2 ~ 10M/min.




Number of rollers:

 1

.including 1 mirror roller and 1 grinding roller.


 2

The metering wheel is made of seamless steel tube welded by CO². After tempering and tempering treatment, the surface is finely ground and the pulsation is less than 0.02mm for dynamic balance.The surface is carved into 60 mesh concave plate by high precision laser engraving machine.The metering wheel adopts the direct insert type connection transmission, which can be truly combined with the driving motor.
Bearing adopts Japan (NSK) bearing, Taiwan Delta frequency converter control cots speed, the speed is controlled in 2 ~ 15M/min.


 3

The anti-grain wheel adopts 45# seamless steel tube after CO² welding, after quenching and quenching treatment, the surface is fine grinding, dynamic balance, runout is less than 0.03mm, the surface is plated hard chrome and polished to achieve bright effect, the anti-grain wheel adopts direct insert type connecting drive, can truly achieve and drive motor combined into one.Bearing adopts Japan (NSK) bearing, Taiwan Delta frequency converter control cots speed, the speed is controlled in 2 ~ 15M/min.


 4

.The high precision linear sliding table is used between the coating head and the frame, so that the rigidity and precision between the coating head and the frame are guaranteed, and never deformation.An electronic eye is used between the coating head and the frame to control the thickness of the roller coated plate.The control precision is 0.1mm.


 5 The whole machine is equipped with thick plate protection emergency stop switch, in case of emergency stop, the coating head rises.
To reduce safety accidents.
 6 The control panel is controlled by PLC and man-machine interface.PLC man-machine interface field using Mitsubishi series, human machine interface program set for manual and automatic two, line speed control within 0.01M.



6KW 10M/Min Laser Engraving Machine / Coating Line Machine 0





FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
