500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min

500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min
500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min
500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min 500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min 500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min 500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min 500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min 500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min

Large Image :  500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-GT-1320-Ⅳ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min

Description
Features: It Is Suitable For Side Coating Of Various Woodware, Plastics, Metals, Etc. The Surface Of The Paint Processed By This Machine Is Smooth, Fullness, And No Color Difference Product Name: Side Coating Machine
Color: Computer White + Grass Green Size: 2000mm×2520mm Wide×1520mm High. (According To Actual Size)
Effective Working Size: A, Effective Width: 1320mm; B, Thickness: 3-180mm, Length (shortest): 500mm Conveying Speed:: 5-20m/min
Highlight:

20m/Min Roller Coating Equipment

,

500mm Roller Coating Equipment

500mm Thickness Adjustable Angle Roller Coating Equipment 20m/Min
Product Overview

20m/Min 500mm Thickness Adjustable Angle Roller Coating Equipment - A specialized side coating solution designed for industrial applications requiring precise edge coating.

Key Features
  • Specialized side coater designed for board factories, furniture factories, glass mirror factories, construction factories, and special-shaped materials factories
  • Produces uniform, full coating with replaceable paint film
  • Eliminates traditional manual spraying and prevents paint waste
  • Dual symmetrical coating rubber wheels with adjustable angles for precise coating application
  • Coating wheels made of imported silica gel for superior friction resistance, solvent resistance, toughness, and extended service life
  • All electrical components utilize internationally recognized brand names
Technical Specifications
Effective Coating Thickness: 1-100mm (customizable according to customer requirements)
Specification Details
Size 2000mm × 2520mm wide × 1520mm high (customizable according to actual requirements)
Coating Roller Diameter ￠250mm, length: 1470mm
Working Height 0 ~ 850mm (height between belt and ground)
Coating Speed 20m/Min

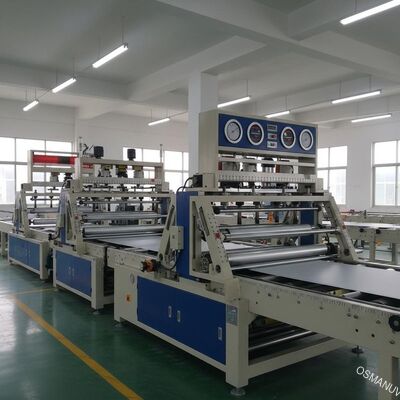

500mm Thickness Adjustable Angle Roller Coating Equipment operational view

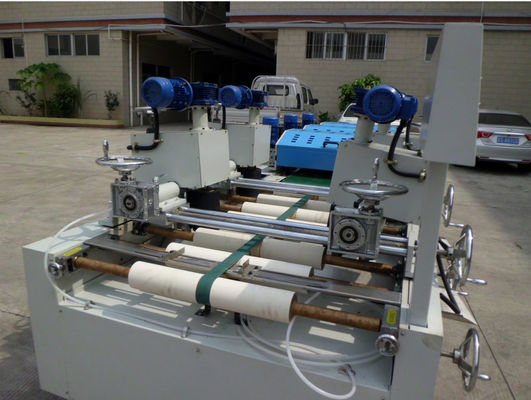

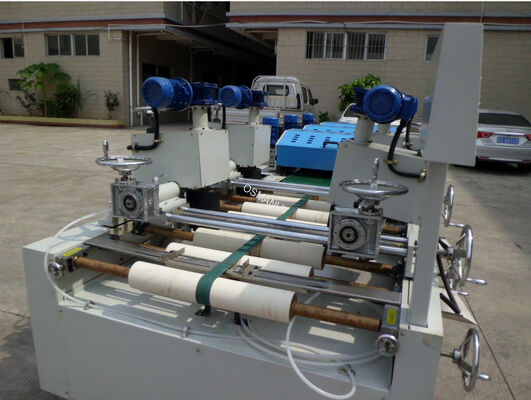

Close-up view of coating mechanism and adjustable rollers
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production complies with GMP & ISO standards, and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
