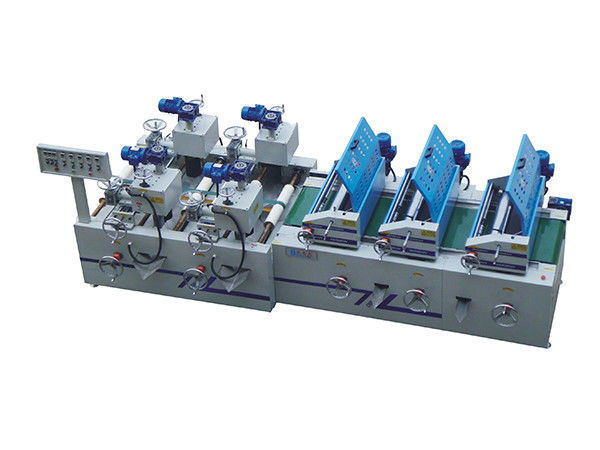

2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers

2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers
2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers
2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers 2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers 2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers 2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers

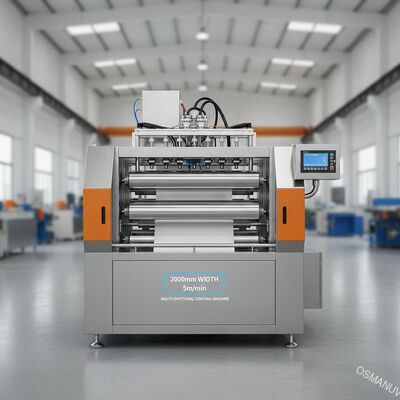

Large Image :  2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers

Product Details:
Place of Origin: CHINA
Brand Name: Osmanuv
Certification: ISO9001 And CE
Model Number: OSM-GT-1320-Ⅶ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 35-45 Working days
Payment Terms: T/T,Western Union
Supply Ability: According to customer's demand
Contact Now

2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers

Description
Product Name: Multifunctional Coating Machine Mechanical Dimensions: 1500mm Long × 1650mm Wide × 1660mm High. (According To Actual Size)
Color: Grass Green + Computer White Roller Coating System:: 3 Rollers (respectively Mirror Steel Roller, Silica Gel Roller, Mirror Steel Roller) Are Specially Designed, And The Running Direction Of Each Roller Can Be Positive And Reversible, And Each Roller Can Be Independently Controlled. , Both Front And Rear Ste
Belt:: Adopt German Sieglin PVC Anti-static Belt, Stable Conveying, Stable Performance And Long Service Life. Effective Working Size (effective Width): 1320
Highlight:

W2000mm multifunctional coating machine

,

5m/Min multifunctional coating machine

2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers
Technical Specifications
No. Parameter Specification
1 Mechanical Size 2000mm × 3200mm wide × 1520mm high (Subject to actual size)
2 Effective Working Size a. Effective width: 2000mm
b. Thickness: 3-180mm
c. Length (shortest): 500mm
3 Material The shell is made of 1.5mm steel plate bending and welding, surface treated with liquid paint, and supporting wall made of 20cm steel plate (A3 material)
4 Coating Part Four groups of roll coating system, each consisting of steel roller and silica gel wheel, each group can be lifted up and down separately
5 Side Cots Diameter: ￠150mm, length: 200mm, Japanese high-quality polyurethane production, wear-resistant, good elasticity, hardness customizable (30-50 degrees), resistant to various solvents using high-quality coupling transmission, bearing KHV bearing, speed controlled by frequency converter
6 Side Metering Wheel Diameter: ￠100mm, length: 200mm, using 45# seamless steel tube by CO² welding, surface fine grinding, dynamic balance, runout less than 0.05mm, surface hard chrome plated and polished for bright effect
7 Conveyor Roller Power: 1.5KW, diameter: ￠100mm, length: 1320mm. 45# seamless steel tube welded by CO², surface finely ground, dynamic balance, runout less than 0.05mm, surface hard chrome plated and polished for bright effect. Direct plug-in connection drive
8 Transmission Mode 100mm transmission roller transmission, width: 1320mm, long service life, smooth transmission
9 Transmission Speed 5-20m/min
10 Working Height 0-850mm (working face height from ground), roller height equipped with position display
11 Control System 5 sets of hollow worm gear reducer and 5 sets of frequency converter, each drum can be adjusted independently
Features
Suitable for side coating of various wood, plastic, metal, etc. The surface of paint treated by this machine is smooth, with good fullness and no color difference.

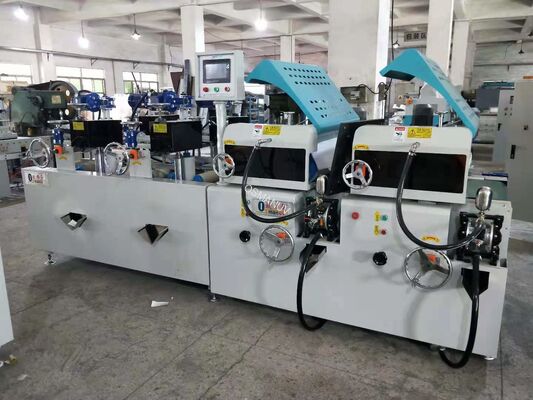

Multifunctional Coating Machine in operation showing coating application process
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will test your samples on our machines and provide a video of the testing. Factory visits are also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with GMP & ISO standards, and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
