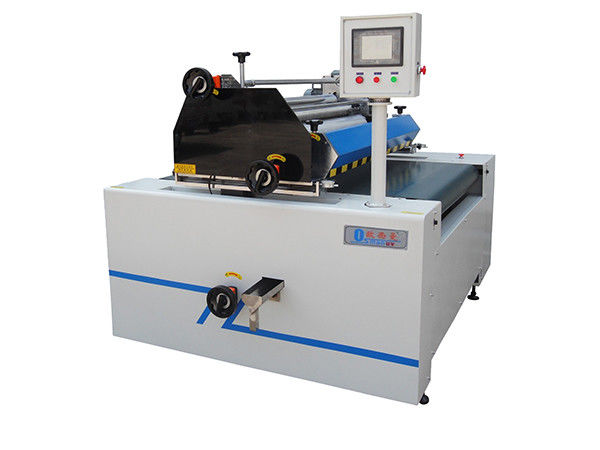

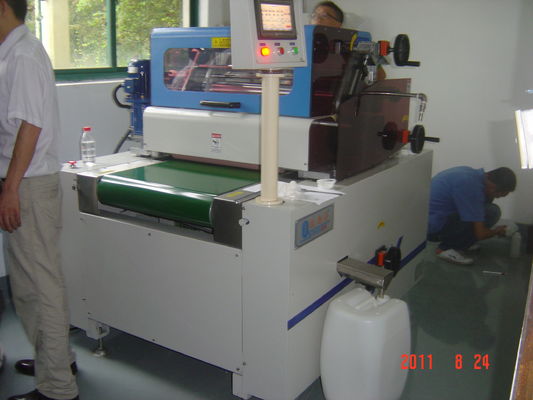

410 Volts 6KW Roller Coating Equipment Suitable For Glass Plane
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 And CE |
| Model Number: | OSM-GTJ-1320-I |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | Photovoltaic Glass AR Flim Coating Machine | Size: | 4000mm×2450mm×1300mm |
|---|---|---|---|
| Voltage: | 360-410 Volts, Three-phase Four-wire, 50 Hz | Feature: | This Machine Is Suitable For Roller Coating Of Various Primers And Topcoats. The Driving Power Is Mitsubishi Servo Motor. |
| Effective Working Width:: | 1320mm | Total Power: | 6KW |
| Highlight: | 410 Volts Roller Coating Equipment,6KW Roller Coating Equipment |
||
Product Description

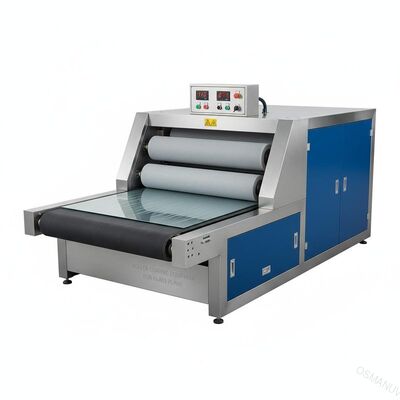

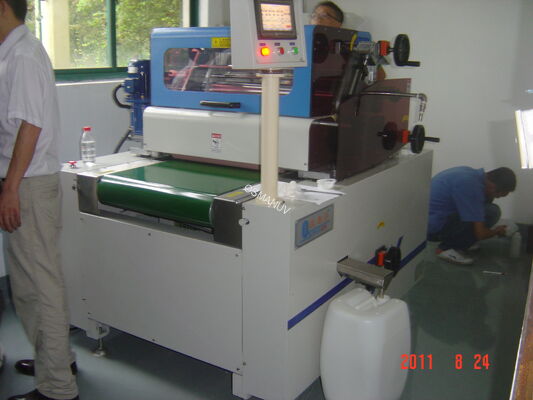

410 Volts 6KW Roller Coating Equipment Suitable For Glass Plane
Product Overview
This advanced roller coating equipment is specifically designed for applying various primers and topcoats on glass planes with precision and efficiency.
Key Features
- Suitable for rolling all types of primers and topcoats
- Powered by Mitsubishi servo motor for reliable performance
- Four sets of power separate speed control drive
- Seamless plane conveyor belt with 3mm thickness for long service life
- Stainless steel V-shaped return groove conforms to hydrodynamics
- High precision grating ruler for height measurement with error ≤ 0.1mm
Technical Specifications
| Specification | Value |
|---|---|
| Effective working width | 1320 mm |
| Effective processing thickness | 2-50 mm |
| Minimum machining length | 300 mm |
| Transmission speed | 2-15 m/min |
| Cots roller diameter | ￠300 mm |
| Measuring wheel diameter | ￠180 mm |
| Diameter of anti-grain wheel | ￠100 mm |
| Pressure wheel diameter | ￠70 mm |
| Cots length | 1450 ±0.1 mm |
| Measuring wheel length | 1450 ±0.1 mm |
| Length of pressure wheel | 1220 mm |
| Machine inner width | 1650 mm |
| Machine length | 4000 mm |
| Machine running direction | From right to left |
| Machine height | Conveyor belt is 850±30mm above the ground |
| Machine size | 4000mm × 2450mm × 1300mm |
| Coating quantity | 2-15 g/m² |
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards, and our products have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
