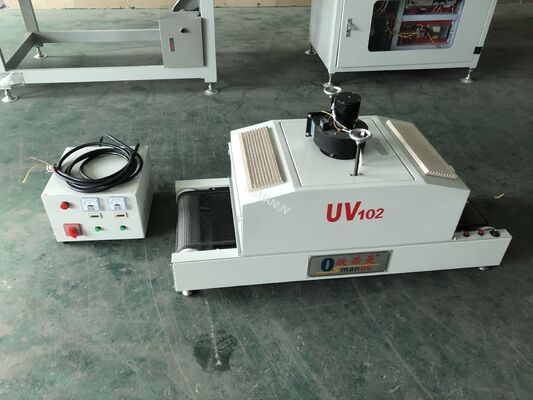

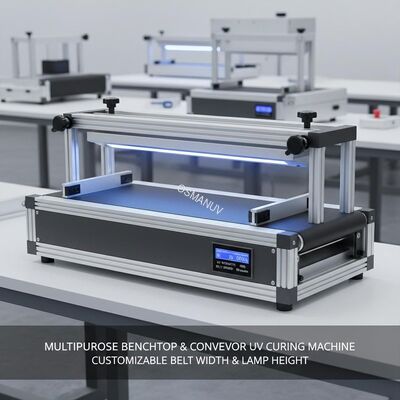

MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT

MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT
MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT
MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT

Large Image :  MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT

Product Details:
Place of Origin: CHINA
Brand Name: OSMANUV
Certification: ISO9001
Model Number: Specification
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: WOOD PACKAGING
Delivery Time: 30-45days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT

Description
Conveying Material: Teflon Mesh Belt Delivery Method: Chain Conveyor
Curing Depth: 5-20mm Shape: Disc-shaped
Operating Temperature: 0°C - 40°C Power Box Size: 310*155*130mm
Ambient Temperature: 0ºC-50ºC Chip Brand: Seoul/San An/LG
Highlight:

benchtop UV curing machine

,

customizable conveyor UV curing machine

,

UV LED curing machine with adjustable belt

MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE - CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT
This UV curing machine instantly dries and cures UV varnishes, inks, glues, and coatings on various substrates including paper, plastic, wood, glass, metal, and electronics. It uses high-intensity mercury UV lamps or energy-saving LED UV modules to achieve fast, tack-free curing without heat damage. Ideal for screen printing, digital printing, adhesive bonding, and optical coating lines. The system is fully customizable in lamp type, conveyor speed, curing zone length, and cooling method.
Production Line Composition
  • Infeed Conveyor (adjustable speed)
  • UV Lamp Housing (mercury or LED)
  • Curing Chamber with Reflector System
  • Cooling Unit (air or water)
  • Exhaust & Ozone Extraction System
  • Outfeed Conveyor
  • PLC HMI Control Panel
Technical Parameters
Parameter Standard Range Customizable Option
Conveyor Width 300mm / 650mm / 1000mm ✅ Up to 2000mm
UV Lamp Power 1kW - 24kW (mercury) / 40W - 400W/cm (LED) ✅ Mixed lamp types
Conveyor Speed 0.5 - 30 m/min ✅ Up to 80 m/min
Peak Wavelength 365nm (LED) / 250-450nm (mercury) ✅ 395nm, 405nm LED
Cooling Method Air cooling (standard) ✅ Water cooling
Curing Distance Adjustable 20 - 150 mm ✅ Motorized height adjustment
Power Supply 220V / 380V / 50-60Hz ✅ Custom voltage
Applications
  • Screen & pad printing - UV ink curing
  • Adhesive bonding (electronics, medical devices)
  • Optical film & lens coating
  • Wood & furniture UV varnish
  • 3D printing post-curing
  • PCB solder mask & conformal coating
  • Glass decoration & metal printing
Customization Options
We offer full customization including:
  • Conveyor width, length, and belt material (Teflon, mesh, magnetic)
  • Mercury or LED UV lamps with selectable wavelengths (365/385/395/405nm)
  • Single or multiple lamp zones for staged curing
  • Height-adjustable lamp housing for different product thickness
  • Nitrogen inerting system for oxygen-sensitive curing
  • Split conveyor for integration into existing production lines
  • Custom machine color, control software, and safety shielding
Key Features
  • Instant on/off - no warm-up time (LED version)
  • High peak irradiance up to 20 W/cm²
  • Low heat emission protects heat-sensitive materials
  • Digital power control from 10% to 100%
  • Ozone-free LED option for clean indoor use
  • Over-temperature & lamp failure protection
  • Modular design for easy maintenance
Support and Services
  • Free sample curing test with report
  • Remote video support & on-site commissioning
  • 18 months warranty (LED lamps: 20,000h)
  • Spare parts available locally or via 48h air shipment
  • Training manual & operational video library
Packing and Shipping
  • Packing: Anti-rust film + shockproof foam + sealed plywood case
  • Shipping: FOB Shanghai / Guangzhou / Ningbo
  • Lead time: 15-30 working days (depends on customization)
  • Shipping methods: Sea, air, rail (Europe/Asia)
Frequently Asked Questions
Q1: Can you customize the curing width for a 150mm product?
A: Yes. We fully customize conveyor width from 100mm to 2000mm, including lamp length matching.
Q2: Which is better for plastic film - LED or mercury?
A: LED UV is better because it emits almost no infrared heat, avoiding film deformation. Both types are customizable.
Q3: Can this machine cure dark or black UV ink?
A: Yes, but high-power mercury lamps or specific 395nm LED with high irradiance are recommended. We can customize lamp configuration accordingly.
