High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings

High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings
High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings
High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings

Large Image :  High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings

Product Details:
Place of Origin: China
Brand Name: OSMANUV
Certification: ISO9001
Model Number: OSM-FM-1320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 30~45 Days
Payment Terms: T/T
Supply Ability: Negotiation
Contact Now

High-Speed Laminating and Cutting All-in-One Machine for Panel Processing - Unmatched Efficiency & Labor Savings

Description
Hardness: Soft Automatic Gra: Automatic
Productname: Film Laminating Machine Min Paper Size: 360*320mm
Laminating Width: 1600mm Effective Width: 1320mm
Conveying Speed: 1-20m/min Material: Stainless Steel
Highlight:

high-speed laminating machine for panels

,

all-in-one laminating cutting machine

,

film laminating machine with labor savings

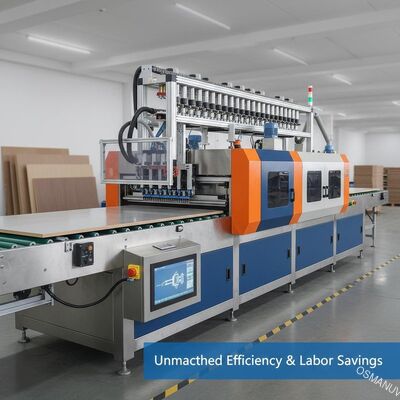

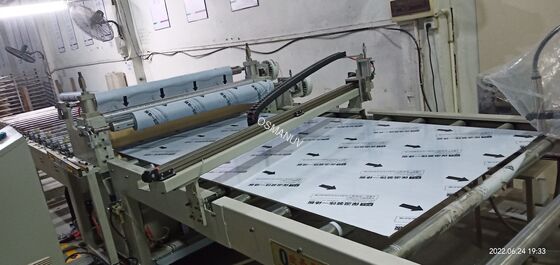

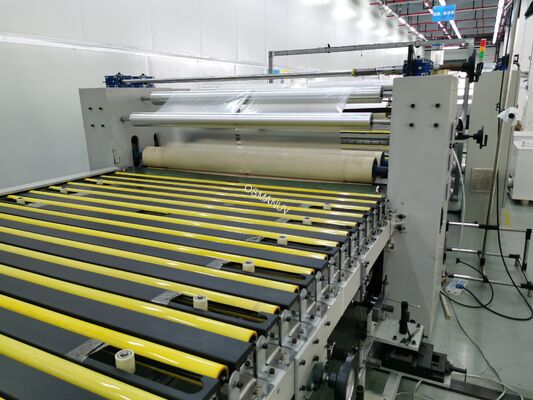

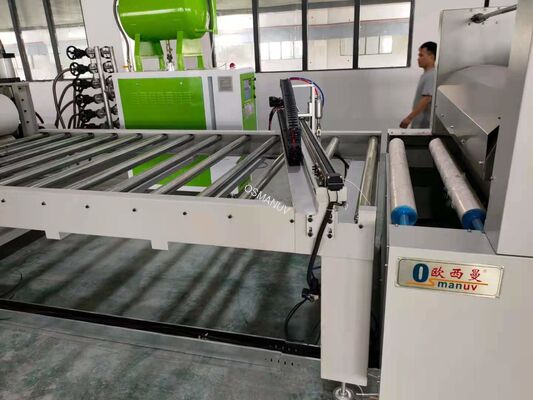

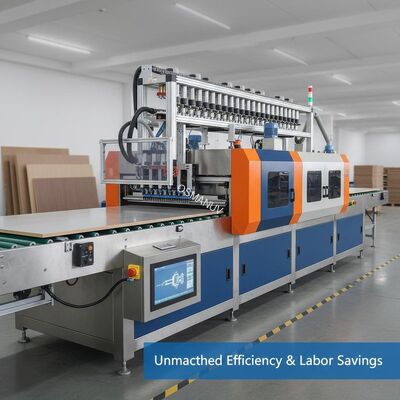

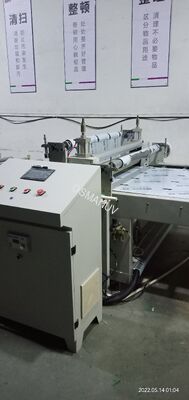

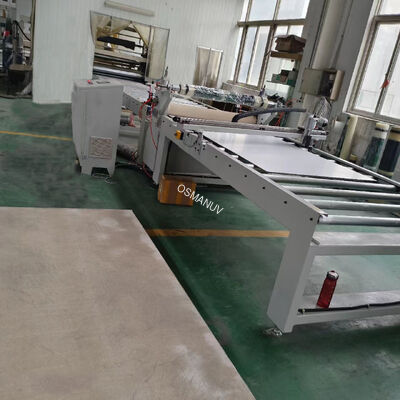

High-Speed Laminating and Cutting All-in-One Machine for Panel Processing
This revolutionary solution for panel processing integrates precise film lamination and CNC cutting in a single, continuous operation. Designed to maximize productivity, it automatically applies decorative films onto substrate panels and immediately processes them into finished parts. This seamless flow eliminates intermediate handling, dramatically reduces labor costs and floor space, and ensures perfect registration between the laminated surface and the cut contour.
Technical Parameters
Parameter Details/Range
Model Series LC-Fusion-HS Series (Customizable)
Max. Panel Size (LxW) 1300 x 2500 mm, 1500 x 3000 mm (Customizable)
Laminating Precision ±0.5 mm
Cutting Precision ±0.1 mm
Cutting Tools High-Frequency Router, Oscillating Knife, Drag Knife, (Laser Optional)
Processing Speed Up to 80 m/min (lamination); Contour cutting speed adjustable
Control System Industrial PC with Dedicated CAD/CAM Software
Power Supply 380V/415V, 3-Phase, 50/60Hz
Production Line Composition
Panel Loading/Auto Feeder → Laminating and Cutting All-in-One Machine → Protective Film Application (Optional) → Offloading/Sorting Station
Applications
Ideal for high-volume production of laminated components for furniture (door fronts, cabinet panels), interior decoration (wall panels, ceiling tiles), point-of-sale displays, and decorative partitions.
Customization
We offer highly customizable configurations including machine bed size, choice of cutting technology (router vs. knife), integration of specific film unwinding/tensioning systems, and creation of custom software toolkits for your most common part profiles.
Key Features
  • True All-in-One Process: Laminates and cuts in one pass, eliminating bottlenecks
  • High-Speed Operation: Dramatically increases output compared to separate machines
  • Perfect Registration: Ensures cut lines perfectly align with printed film patterns
  • Material Versatility: Handles a wide range of films and panel substrates
  • User-Friendly Software: Converts designs into machine-ready programs effortlessly
Support and Services
  • Comprehensive on-site installation and process calibration
  • Extensive operator and programmer training
  • Dedicated technical support hotline and remote diagnostics
  • Preventive maintenance plans and guaranteed spare parts availability
Packing and Shipping
Machine is disassembled into major modules for safe transport. All components are securely crated in weatherproof wooden boxes. Full documentation including manuals, electrical diagrams, and packing lists provided.
Frequently Asked Questions
What are the main advantages over separate laminating and cutting machines?
It saves significant space, reduces labor by 60-70%, minimizes handling damage, and guarantees perfect alignment between print and cut, leading to less waste and higher quality.
Can it handle different film types and adhesives?
Yes. The machine is customizable with specific heating rollers, pressure systems, and feeders for hot-melt, pressure-sensitive, or low-temperature films.
Is the software difficult to learn?
Our software is designed for intuitive operation. We provide thorough training, and it can import standard DXF, DWG, and AI files commonly used in the industry.
