High-Speed Film Laminating Machine with Automatic Cutting for Decorative Wood Grain Applications
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-FM-1320 |
| Document: | film Lamintaing.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 40 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Machine Operation Direction: | Left To Right | Machine Height: | 850±30 Mm (from Ground To Conveyor Belt) |
|---|---|---|---|
| Overall Dimensions: | 6300mm × 1550mm × 1200mm | Minimum Conveying Length: | 300mm |
| Product Name: | High Efficiency Film Laminating Machine | Condition: | New |
| Warranty: | 1 Year | ||
| Highlight: | automatic cutting film laminating machine,high-speed wood grain laminator,decorative film laminating machine |
||
Product Description

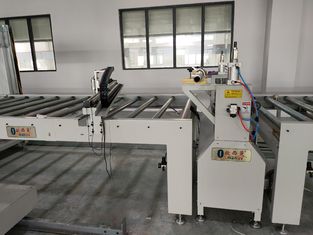

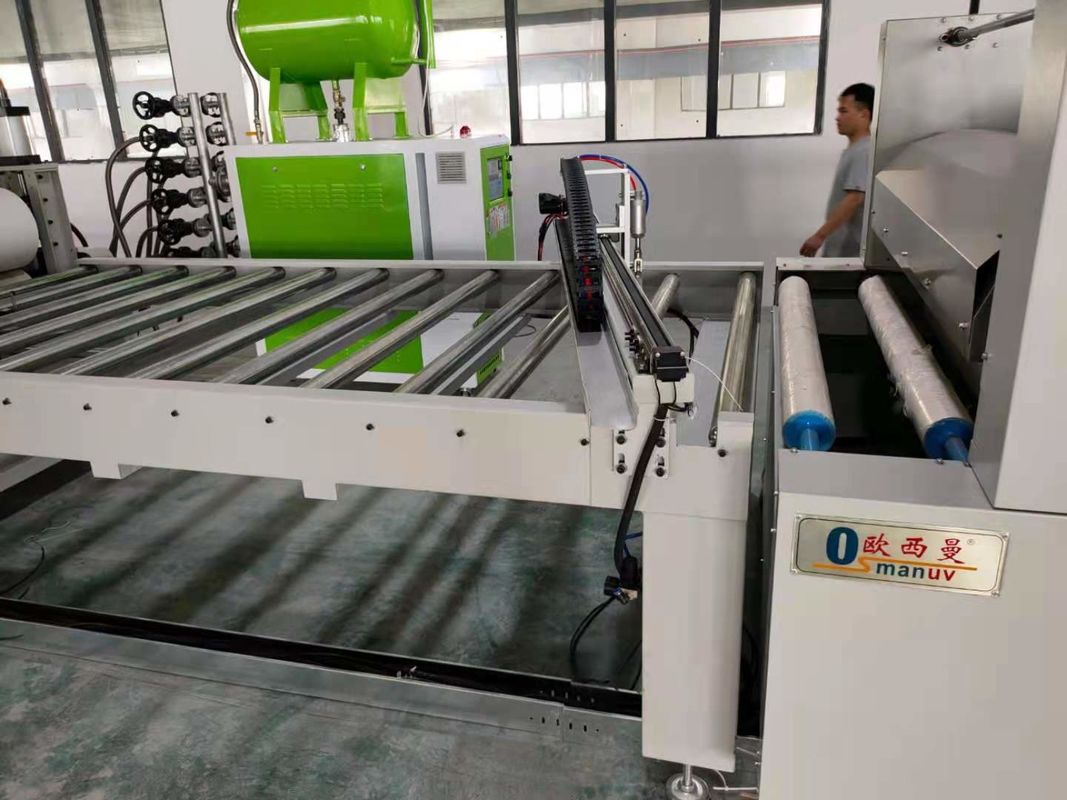

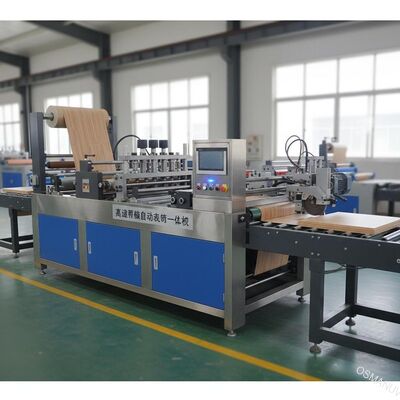

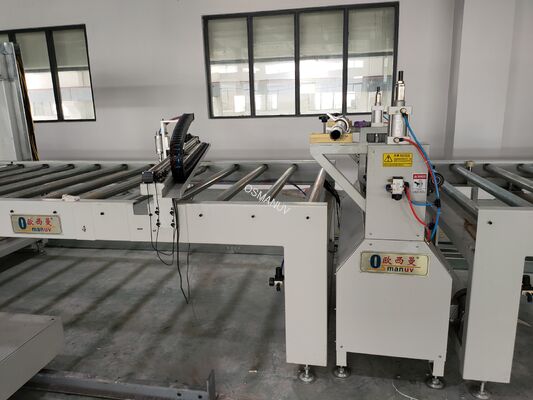

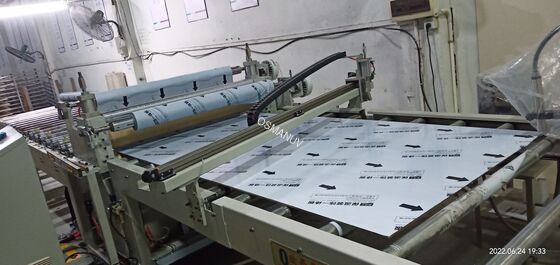

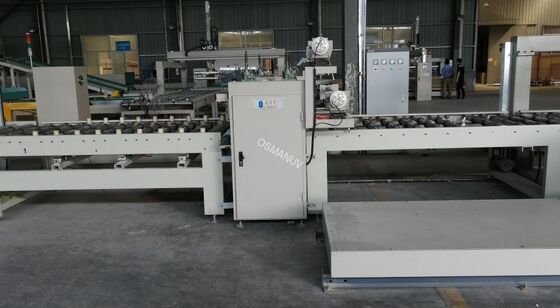

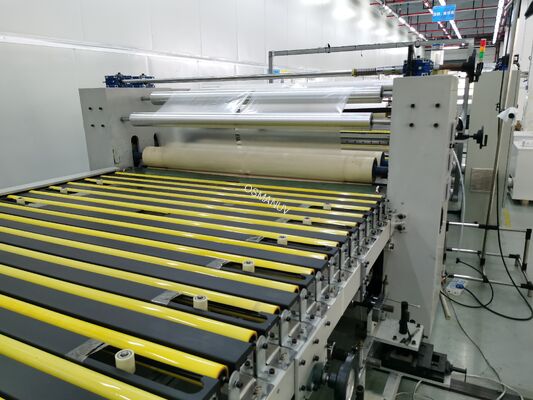

High-Speed Film Laminating Machine with Automatic Cutting for Decorative Wood Grain Applications
Product Overview
This high-speed film laminating machine with automatic cutting function is specialized for applying wood grain films to metal composite panels. It delivers exceptional aesthetic appeal and durability for architectural and industrial applications.
Technical Specifications
| Parameter Category | Specification |
|---|---|
| Effective Working Width | 0-1320mm |
| Conveyable Material Thickness | 3-80mm |
| Conveying Speed | 1-20m/min |
| Drive Roller Diameter | Ø150 mm |
| Auxiliary Drive Roller Diameter | Ø150 mm |
| Drive Roller Length | 1320mm |
| Auxiliary Drive Roller Length | 1320mm |
| Machine Length | 500 mm |
Applications
- Metal composite panels for architectural cladding
- High-end appliance surfaces
- Luxury furniture and fixtures
Key Features
- Precision Cutting: Automatic cutting with CNC system
- Bubble-Free Laminating: Vacuum technology ensures perfect adhesion
- Smart Control: Real-time monitoring with data analytics
Customization Options
- Metal Types: Customizable with options for aluminum, stainless steel
- Film Patterns: Wood grain, metallic, color films
- Automation: Optional robotic integration
Support & Services
- On-site installation and calibration
- 24-month warranty on cutting systems
Packaging & Shipping
- Climate-controlled packaging with GPS tracking
- Worldwide logistics support
Frequently Asked Questions
Q: Can the machine handle large-sized panels?
A: Yes, the machine can be customized with extensions for panels up to 3000 mm.
