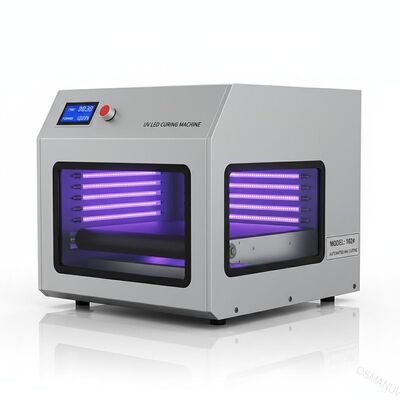

Laboratory Type Fast Drying Automated 102# UV LED Curing Machine Ink Curing
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-BLT-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | stock |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | In stock |
|
Detail Information |
|||
| Highlight: | Automated UV LED Curing Machine,Fast Drying UV LED Curing Machine,Laboratory Type UV LED Curing Machine |
||
|---|---|---|---|
Product Description

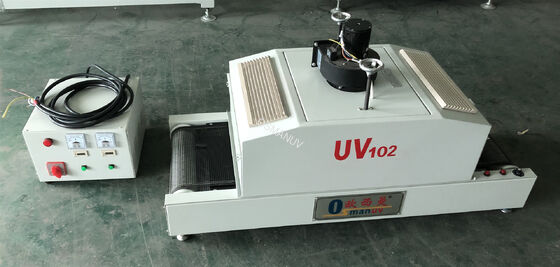

Laboratory Type Fast Drying Automated 102# UV LED Curing Machine Ink Curing
|
Serial number 序号 |
Name 名称 |
Parameter 参数 |
| 1 |
Product name 品名 |
103 type curing equipment with LED (Effective width: 300mm) 103型固化设备(有效宽度:300mm) |
| 2 |
Model 型号 |
OSM－LEDUV－103T |
| 3 |
Power supply 电源 |
220VAC/50HZ. |
| 4 |
Total power 总功率 |
2.15KW |
| 5 |
Specifications 规格 |
1220mm long × 470mm wide × 460mm high.(Subject to actual size) 1220mm长×470mm宽×460mm高(以实际尺寸为准) |
| 6 |
LED lamp LED灯 |
Three sets of LED lights, with the wavelength of 320nm and 365 nm and 395 nm respectively, are installed on the top of the UV furnace, downward irradiation, height and Angle can be adjusted. 采用3组 LED灯,波长分别为320nm,365nm,395nm,安装在UV炉顶部,向下照射,高度,角度均可调节. |
| 7 |
UV lampshade UV灯罩 |
It uses unique aluminum reflective material (German alanod reflective sheet) to reflect ultraviolet light, which is durable and greatly improves the utilization rate of ultraviolet light (can be increased by more than 38%). 采用独特铝型反光材料(德国alanod反光片)反射紫外光,经久耐用大大提高紫外光的使用率(可提高38%以上) |
| 8 |
Conveyor net width 输送网宽 |
300mm |
| 9 |
Inlet and outlet height 出入料口高度 |
130mm |
| 10 |
The adjustable height of the lampshade 灯罩可调节高度 |
80mm |
| 11 |
Conveyor speed 传送速度 |
1~10 meters/minute, stepless speed regulation. 1～10米/分钟 ,无级调速. |
| 12 |
Conveyor belt 输送带 |
It uses Teflon mesh belt as the transmission power, which is resistant to high temperature, ultraviolet rays and stable transportation. 采用铁氟龙网带作为传送动力,耐高温耐紫外线且输送平稳 |
| 13 |
Casing material 机壳材料 |
1.5 cold-rolled plate is bent and welded, and the shell is spray-baked, wear-resistant and corrosion-resistant. 1.5冷轧板折弯焊接而成,外壳喷烤处理,耐磨,耐腐蚀 |
| 14 |
Cooling system 冷却系统 |
Forced air cooling. 水冷 |
| 15 |
Electrical parts 电器部分 |
CKC delay, OMRON relay, Yangming switch, CHNT contactor, leakage circuit breaker and other famous brand electrical appliances that meet international safety standards. CKC延时,OMRON继电器,扬名开关,CHNT接触器,漏电断路器等符合国际安全标准之名牌电器 |
| 16 |
Control panel 控制面板 |
LED lamp ammeter, power indicator light, power switch, LED lamp switch, time accumulator. LED灯电流表,电源指示灯,电源开关,LED灯开关,时间累时器 |
| 17 |
Safety devices 安全装置 |
Leakage circuit breaker, control line fuse, etc., in line with international safety standards. 漏电断路器,控制线路保险丝等,符合国际安全标准 保修:整机壹年,电器部分半年,LED灯保用10000—15000小时 |
