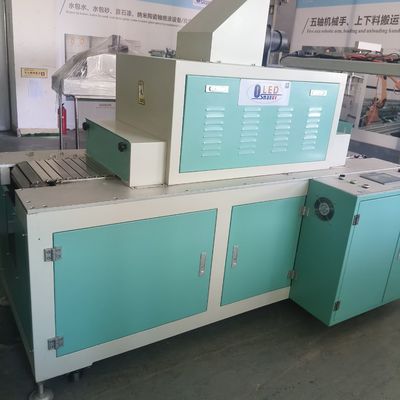

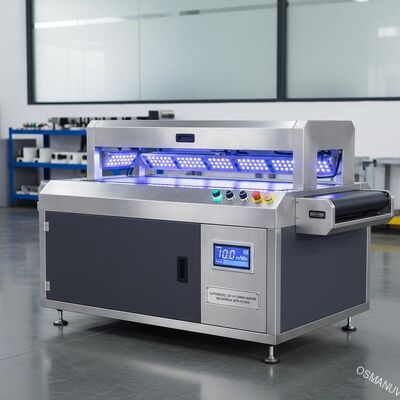

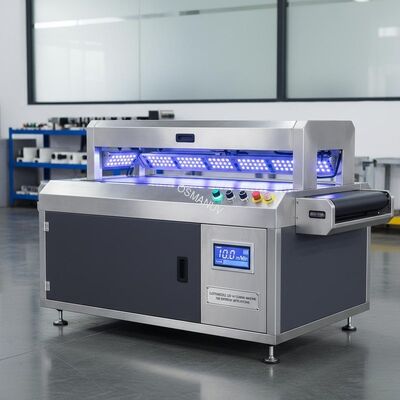

10m/Min Customizable LED UV Curing Machine For Different Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-LED-350C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 35-45 Working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | According to customer's demand |
|
Detail Information |
|||
| Product Name: | LED Tester (high Speed) | Power Supply: | 220V 50HZ |
|---|---|---|---|
| Specifications: | Ength: 1800mm× Width: 800mm× High: 1430mm.(According To The Customer's Requirements) | Tray Size: | 300×330 Mm |
| Color: | Computer White / Green | Conveying Speed: | 10-200m/min |
| Chip Brand: | LG | LED Light: | Install 2 LED Lights, 365nm, 385nm, 395nm Optional 2 |
| Highlight: | 10m/Min LED UV Curing Machine,UV Led Spot Curing System |
||
Product Description
10m/Min LED UV Curing Machine UV Led Spot Curing System Green And White
Description:
| LED curing machine |
| 1 | Product name: | LED tester (high speed). |
| 2 | Model: | OSM-LED-350L. |
| 3 |
Specifications: |
length: 1800mm× width: 800mm× high: 1430mm (According to the customer's requirements) |
| 4 | LED light: | install 2 LED lights, 365nm, 385nm, 395nm optional 2. |
| 5 | Width of LED light source | 350mm. |
| 6 | Tray size: | 300*330 mm. |
| 7 | Conveying speed | 10-200 m/min. |
| 8 | LED light power adjustment: | 10%-100%. |
| 9 | Light source height adjustment | 1-120 mm. |
| 10 | Light source cooling: | water cooling method is adopted. |
| 11 | Power supply | 220v 50Hz |
| 12 | Whole machine structure | aluminum alloy frame, cold-rolled plate with plastic spray treatment |
| 13 | Color: | grass green + computer white. |
| 14 | Warranty period: | The whole machine is guaranteed for one year, and the electrical part is guaranteed for half a year. |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
