Pvc Film Laminating Machine 1-20 M/Min Conveying Speed 500 Mm

Pvc Film Laminating Machine 1-20 M/Min Conveying Speed 500 Mm

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: 920-FMJ-Ⅰ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 20 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Laminating Machine Color: White
Conveying Speed: 1-20 M/min Machine Size: 3000mm×1550mm×1200mm
Machine Length: 500 Mm Effective Working Width: 0-920 Mm
Effective Conveying Thickness: 3-80 Mm Machine Direction: From Left To Right
High Light:

Pvc Film Laminating Machine


500 mm Film Laminating Machine


pvc film lamination machine

Product Description

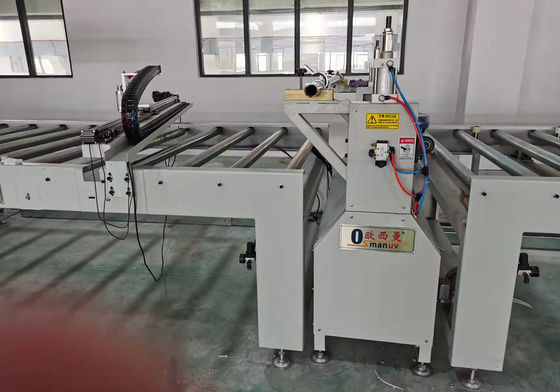

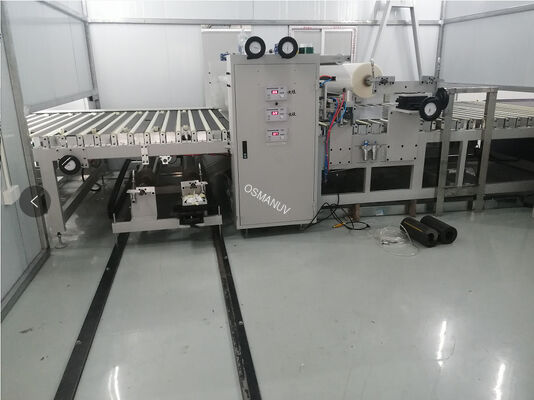

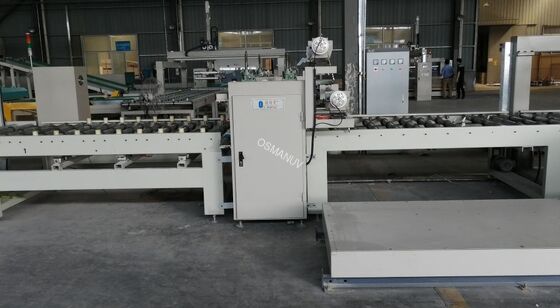

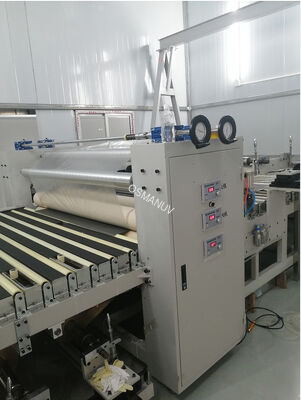

Laminating Machine with Automatic Film Cutting UV Coater Machine For glass,board,pvc board,display screen




 Double-station film release, alternate use, complete the function of continuous operation of the production line without stopping; automatic film cutting system.




Effective working width 0-920 mm
Effective conveying thickness 3-80 mm
Minimum conveying length 300 mm
Conveying speed 1-20 m/min
Diameter of driving roller ¢150 mm
Diameter of auxiliary drive roller ¢150 mm
Driving roller length 920 mm
Length of auxiliary drive roller 920 mm
Machine length 500 mm
Machine direction from left to right
Machine height The conveyor belt is 850±30mm above the ground
Machine size 3000mm×1150mm×1200mm
















The transmission wheel is made of 45# seamless steel pipe welded by CO², after quenching and tempering, the surface is ground and embossed. It is dynamically balanced, the runout is less than 0.03mm, the surface is plated with hard chrome, and the transmission wheel adopts a direct plug-in connection transmission, which can truly be integrated with the drive motor. The bearing adopts NSK bearing, and Taiwan Delta frequency converter controls the speed of the rubber roller, and the speed is controlled at 2-20M/min.

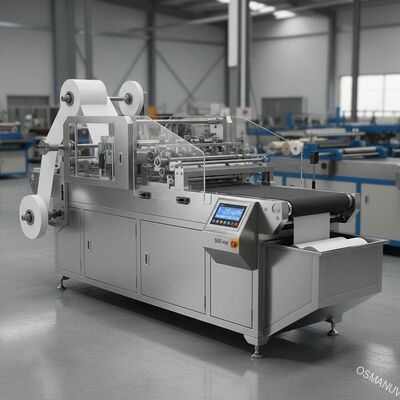

Pvc Film Laminating Machine 1-20 M/Min Conveying Speed 500 Mm 0




Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.

Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.

Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.

Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
