Energy Saving Thermal Film Laminating Machine 500 Mm  ISO9001

Energy Saving Thermal Film Laminating Machine 500 Mm ISO9001

Product Details:

Place of Origin: China
Brand Name: Osmanuv
Certification: ISO9001
Model Number: 1320-FMJ-Ⅰ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 30 work days
Payment Terms: T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: Laminating Machine Color: White
Conveying Speed: 1-20 M/min Machine Size: 3000mm×1550mm×1200mm
Machine Length: 500 Mm Effective Working Width: 0-1320 Mm
Effective Conveying Thickness: 3-80 Mm Machine Direction: From Left To Right
Feature: Energy Saving
High Light:

Energy saving thermal film laminating machine


500 Mm thermal film laminating machine


pcb dry film laminator

Product Description

Laminating Machine with Automatic Film Cutting UV Coater Machine For glass,board,pvc board,display screen


It is suitable for laminating (over-filming) of color printing, packaging paper, soft sheet, soft plywood, etc. to make the surface bright, colorful and waterproof.


1.Film Laminating Machine Features:


 Double-station film release, alternate use, complete the function of continuous operation of the production line without stopping; automatic film cutting system.


2.Film Laminating Machine Description:


Effective working width 0-1320 mm
Effective conveying thickness 3-80 mm
Minimum conveying length 300 mm
Conveying speed 1-20 m/min
Diameter of driving roller ¢150 mm
Diameter of auxiliary drive roller ¢150 mm
Driving roller length 1320 mm
Length of auxiliary drive roller 1320 mm
Machine length 500 mm
Machine direction from left to right
Machine height The conveyor belt is 850±30mm above the ground
Machine size 3000mm×1550mm×1200mm
















  • The transmission wheel is made of 45# seamless steel pipe welded by CO², after quenching and tempering, the surface is ground and embossed. It is dynamically balanced, the runout is less than 0.03mm, the surface is plated with hard chrome, and the transmission wheel adopts a direct plug-in connection transmission, which can truly be integrated with the drive motor. The bearing adopts NSK bearing, and Taiwan Delta frequency converter controls the speed of the rubber roller, and the speed is controlled at 2-20M/min.

3.Film Laminating Machine Deatils:

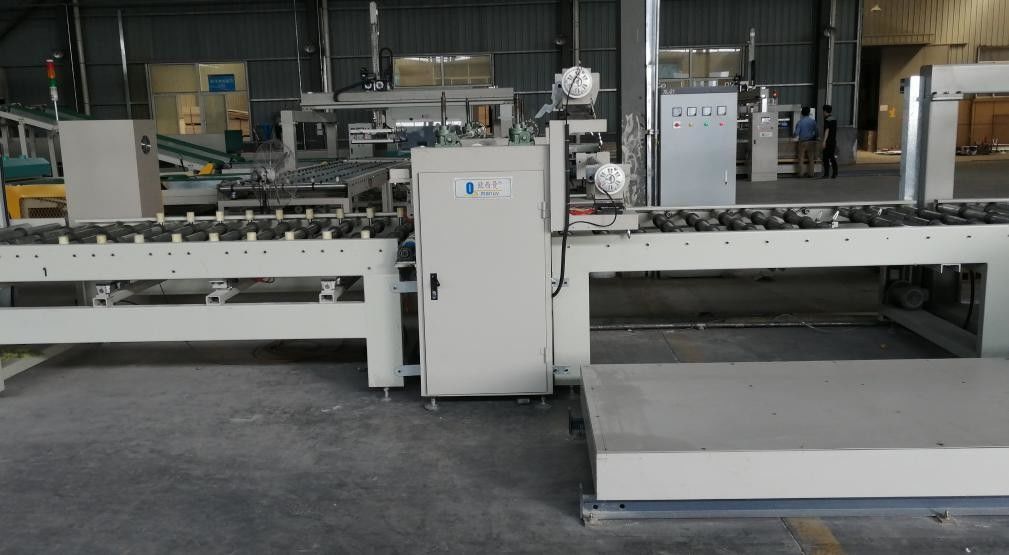

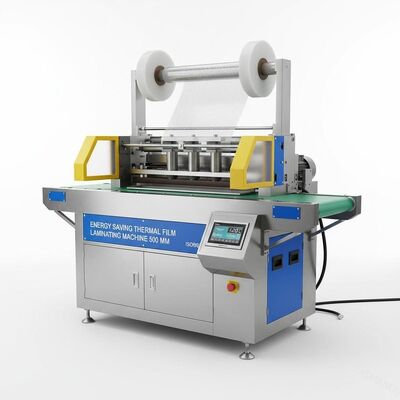

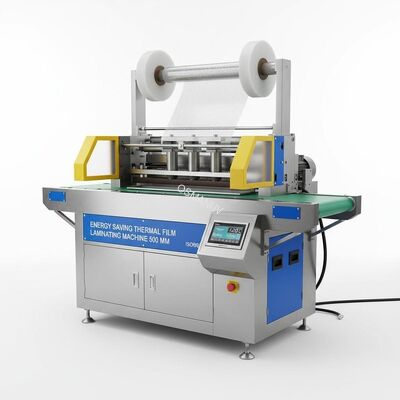

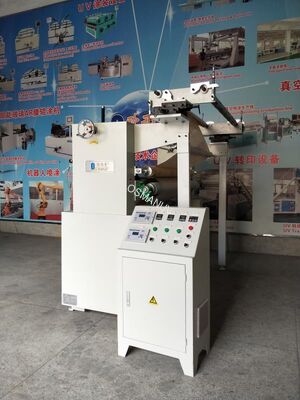

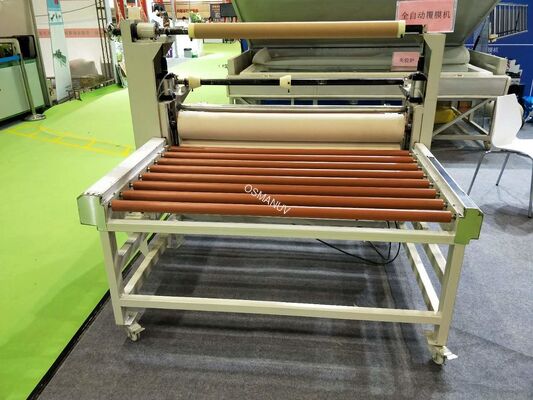

Energy Saving Thermal Film Laminating Machine 500 Mm  ISO9001 0

Energy Saving Thermal Film Laminating Machine 500 Mm  ISO9001 1

Energy Saving Thermal Film Laminating Machine 500 Mm  ISO9001 2




Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.

Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.

Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.

Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.


5.​.About us:


Dongguan Osmanuv Mechanical Equipment Co., Ltd. is a design, research, development, manufacturing as one of the UV equipment, UV equipment and coating, infrared IR equipment, professional production enterprises, automation equipment, environmental equipment, the implementation of the whole plant export.


At present, the company produces the product variety is complete, has been widely used in external wall insulation integration, inner wall decorative plate plastic spraying, bamboo and wood coating, screen printing, PCB, LCD, LED, electronic components, shoe materials, glass products, adhesive, fiber, vacuum plating UV, water transfer printing and many other fields of industry, and has been praised by customers.


Since its start has been the spirit of "high-tech, high investment, high-quality, high-management" of the modern strategy for your business to provide the best, the best service is our aim and the supreme glory, let us cooperate to carry to create more high-quality products, which all sectors of society to create a better future!


Company has passed ISO9001: 2015 quality management system certification.
