Automatic Cutting Film Laminating Machine For Glass, Pvc Board , Display Screen

Automatic Cutting Film Laminating Machine For Glass, Pvc Board , Display Screen
Automatic Cutting Film Laminating Machine For Glass, PVC Board, Display Screen Product Overview This laminating machine with automatic film cutting UV coater is designed for laminating (over-filming) of color printing, packaging paper, soft sheet, soft plywood, and similar materials. The machine ...
Place of Origin:China
Brand Name:Osmanuv
Certification:ISO9001
Model Number:1320-FMJ-Ⅰ
Minimum Order Quantity:1 set
Price:Negotiable
Product Custom Attributes
Highlight

Display Screen Film Laminating Machine

,

Pvc Board Film Laminating Machine

,

glass Laminating Machine

Product Name:
Laminating Machine
Color:
White
Conveying Speed:
1-20 M/min
Machine Size:
3000mm×1550mm×1200mm
Machine Length:
500 Mm
Effective Working Width:
0-1320 Mm
Effective Conveying Thickness:
3-80 Mm
Machine Direction:
From Left To Right
Product Description
Automatic Cutting Film Laminating Machine For Glass, PVC Board, Display Screen
Product Overview

This laminating machine with automatic film cutting UV coater is designed for laminating (over-filming) of color printing, packaging paper, soft sheet, soft plywood, and similar materials. The machine enhances surface appearance with bright, colorful finishes while providing waterproof protection.

Key Features
  • Double-station film release system for alternate use
  • Enables continuous operation without stopping the production line
  • Automatic film cutting system for efficient workflow
Technical Specifications
Specification Value
Effective working width 0-1320 mm
Effective conveying thickness 3-80 mm
Minimum conveying length 300 mm
Conveying speed 1-20 m/min
Diameter of driving roller ￠150 mm
Diameter of auxiliary drive roller ￠150 mm
Driving roller length 1320 mm
Length of auxiliary drive roller 1320 mm
Machine length 500 mm
Machine direction from left to right
Machine height The conveyor belt is 850±30mm above the ground
Machine size 3000mm×1550mm×1200mm
Premium Construction Details

The transmission wheel is manufactured from 45# seamless steel pipe welded by CO², undergoes quenching and tempering processes, and features ground and embossed surfaces. It is dynamically balanced with runout less than 0.03mm and surface-plated with hard chrome. The transmission wheel utilizes direct plug-in connection transmission for seamless integration with the drive motor. The bearing system employs NSK bearings, while speed control is managed by Taiwan Delta frequency converter, maintaining precise speed control at 2-20M/min.

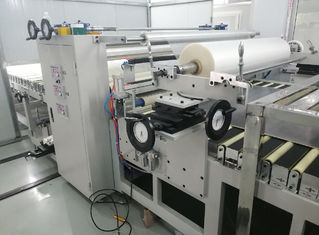

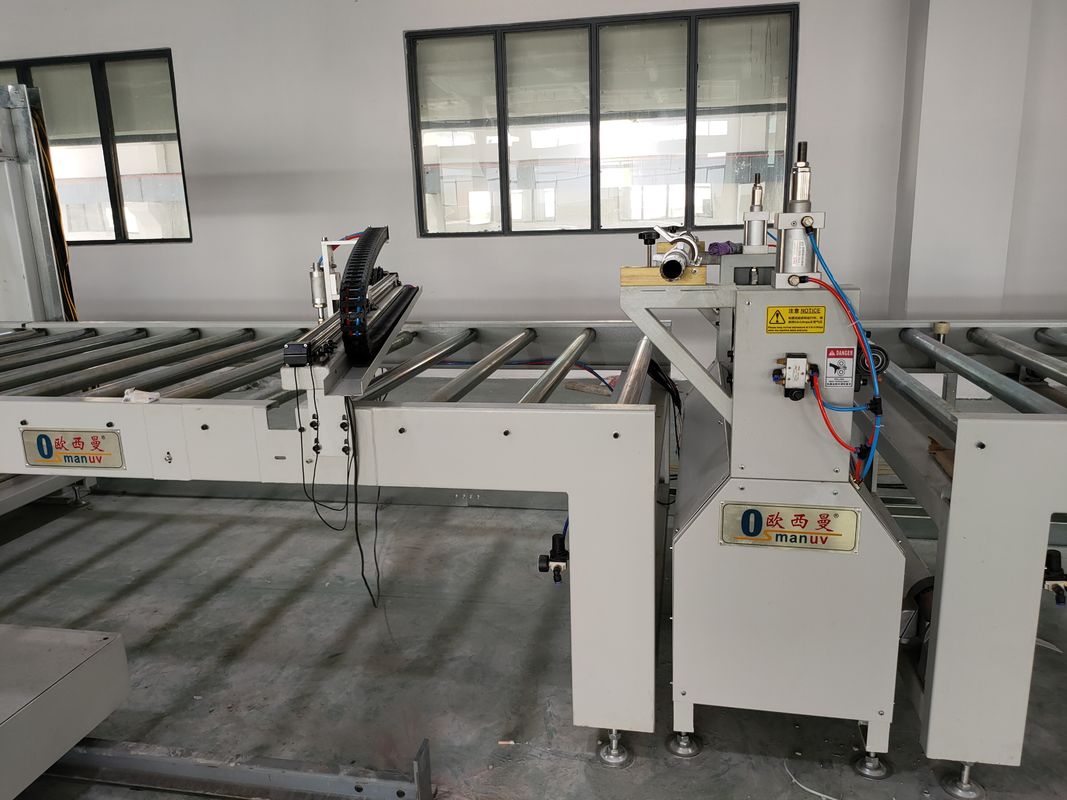

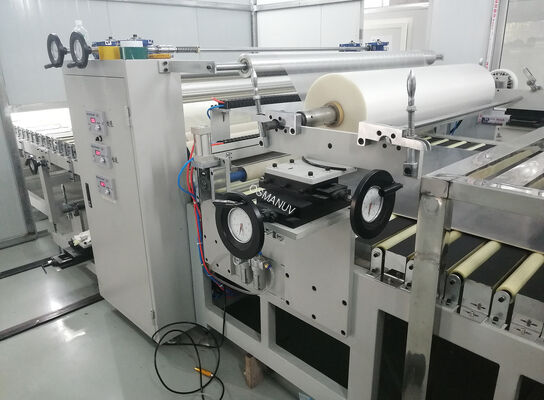

Automatic Cutting Film Laminating Machine operational view Technical diagram of UV coating machine components
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We conduct sample trials on our machines and provide video documentation for review. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production fully complies with GMP & ISO standards, and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
