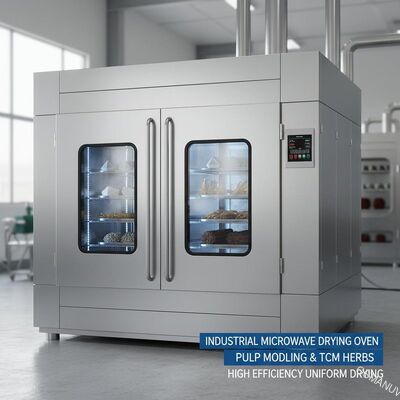

Industrial Microwave Drying Oven for Pulp Molding & TCM Herbs - High Efficiency Uniform Drying
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-WBHG-1320 |
| Document: | microwave drying equipment.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Rated Input Power: | Microwave ≤35kVA | Production Speed: | 15-25m/min |
|---|---|---|---|
| Conveying Drive System: | Servo Motor | See: | Silver |
| Running Direction: | From Left To Right | Heading: | Microwave Drying Machine |
| Chamber Material: | Stainless Steel | Long: | Adjuetable |
Product Description
Industrial Microwave Drying Oven for Pulp Molding & TCM Herbs - High Efficiency Uniform Drying
Content:
Composition of production line:
This industrial drying system comprises a conveyor belt feeder, a multi-magnetron microwave drying cavity with a resonant cavity design, a hot air circulation and moisture exhaust unit, a cooling section, and a PLC-based centralized control cabinet. The modular conveyor length and cavity power are fully customizable.
Product description:
This continuous microwave drying oven is engineered for rapid, uniform, and energy-efficient removal of moisture from three-dimensional pulp molded products (e.g., tableware, packaging) and various batches of Chinese medicinal herbs. It ensures superior product quality by heating from the inside out.
Technical Parameters:
| Parameter | Specification | Notes |
|---|---|---|
| Model Power | 30kW, 60kW, 100kW | Customizable power output |
| Drying Temperature Range | 40°C - 120°C | Precisely controllable |
| Belt Width | 600mm, 800mm, 1000mm | Customizable width available |
| Conveyor Speed | 0.5 - 5 m/min (Stepless) | Adjustable via frequency drive |
| Drying Efficiency | 30-50% higher than conventional | Energy saving up to 50% |
| Control System | PLC + Touch Screen | With recipe memory function |
| Cavity Material | 304 Stainless Steel | Anti-corrosion, easy clean |
Application:
Ideal for large-scale drying of pulp molding products (food trays, egg boxes) and bulk drying of sliced, granular, or root-based Traditional Chinese Medicine (TCM) herbs, replacing traditional sun-drying or fuel-powered ovens.
Customization:
We offer extensive customization including special belt materials (mesh, PTFE), multi-zone temperature control, integrated weighing system for moisture loss, and explosion-proof design for specific solvents.
Feature:
-
Uniform microwave field distribution prevents hotspots.
-
PLC control with multi-stage temperature programming.
-
Energy-saving design with magnetron phase-shift power control.
-
Integrated exhaust and condensation system for efficient dehumidification.
Support and Services:
We provide installation guidance, comprehensive operator training, 24/7 remote technical support, and a reliable supply of genuine spare parts (e.g., magnetrons, belts).
Packing and shipping:
The oven is shipped in heavy-duty wooden crates after disassembly into main modules. Internal components are securely fastened and moisture-proofed. We handle FOB, CIF, or door-to-door logistics.
FAQ:
-
Q: Is microwave leakage a concern?
A: No. The oven meets international safety standards (IEC) with multiple interlock systems and leakage levels far below safety limits. -
Q: Can it dry both pulp and herbs on the same line?
A: Yes, but process parameters (speed, power) need adjustment. Our PLC can store customized recipes for quick changeover. -
Q: What is the lead time for a customized unit?
A: Typically 40-60 days after finalizing the customized specifications.
