UV Paint Spraying Coating Machine for Laminate Panel Finishing: Instant Cure Production Line for MDF Board
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-PT-1320 |
| Document: | automatic spray coating mac...ne.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 40 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Floor Space: | 118 Square Meters | Power(w): | 95KW |
|---|---|---|---|
| Condition: | New | Warranty: | 1 Year |
| Dimension(l*w*h): | 40000*2950*2300mm | Single Class Capacity: | 1.5 Piece/min |
Product Description
UV Paint Spraying Coating Machine for Laminate Panel Finishing: Instant Cure Production Line for MDF Board
-
Composition of Production Line:

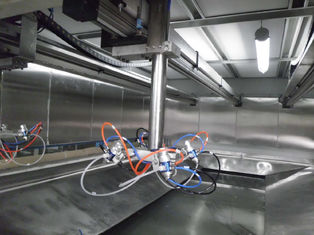

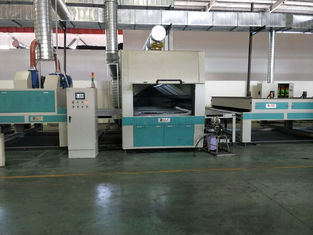

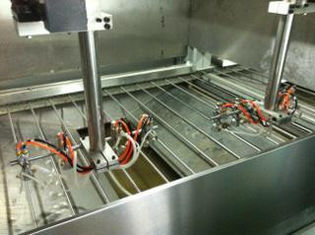

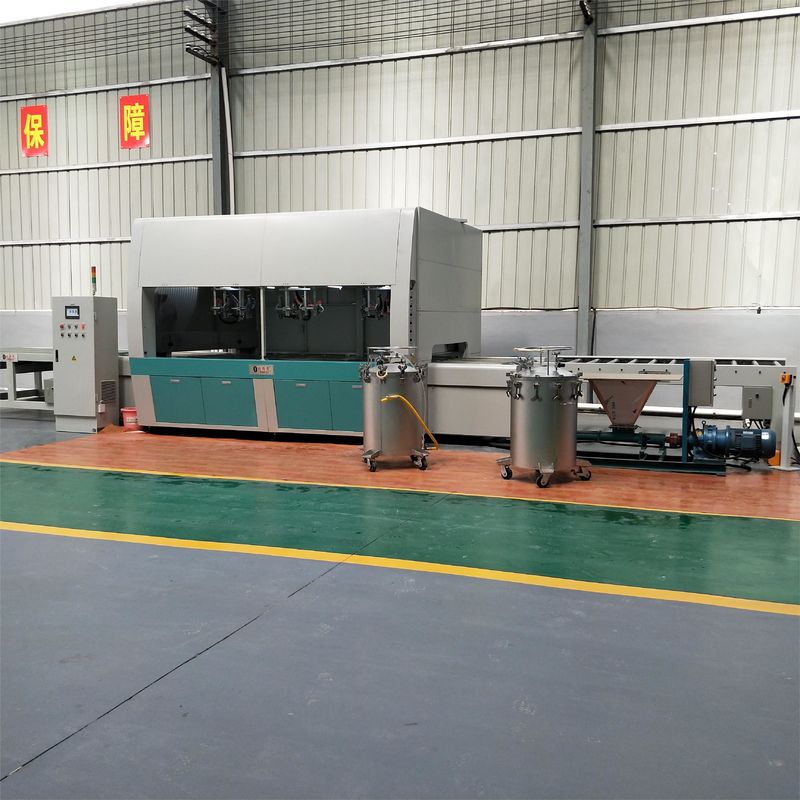

The line includes an automatic feeder, airless spray guns for UV primer/sealer, flatting machine, UV topcoat spray station, UV curing oven, and unloading system. -
Product Description:
This advanced UV spray coating line is engineered for ultra-high productivity and a superior hardened finish. It combines the efficiency of airless spray application with the instant curing power of UV light. This technology allows for immediate handling and stacking after curing, drastically reducing floor space and achieving a durable, scratch-resistant surface perfect for high-traffic furniture and flooring. -
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-PT-1320 |
| Suitable Substrate | MDF, HDF, Pre-laminated Panels |
| Max. Panel Width | 2800 mm (Customizable) |
| Number of Stations | Primer & Topcoat (Standard, Customizable) |
| UV Curing Power | 1200 mJ/cm² (Standard, Customizable) |
| Line Speed | 1-15 m/min |
| Control System | PLC with integrated energy management |
-
Application:
Office furniture, kitchen cabinets, laminate flooring, and any product requiring a ultra-durable, high-gloss finish. -
Customization:
We offer customization of the UV lamp array (power and length), the number of spray stations, and the integration of a flatting machine for a perfectly smooth base coat. -
Feature:
-
Instant Curing eliminates drying tunnels, saving space.
-
Superior Hardness and Scratch Resistance.
-
High-Speed Production capability.
-
Environmentally Friendly with 100% solids coatings (no VOCs).
-
-
Support and Services:
Specialized support from UV coating experts, assistance with coating material selection, and optimized curing parameter setup. -
Packing and Shipping:
UV lamps are packed separately with special cushioning. The line is shipped in modular sections for easy installation. -
FAQ:
Q: Are there any safety concerns with UV curing?
A: The UV curing oven is fully enclosed with interlock safety systems that automatically shut off the UV lamps when opened, ensuring complete operator safety. Proper PPE is recommended for maintenance.
