High-Output Dual-Station Spin Coater for Water/Oil Barrier Coating of Pulp Molded Tableware
Product Details:
| Place of Origin: | China |
| Brand Name: | OSAMUV |
| Certification: | ISO9001 |
| Model Number: | OSM-XT-400T |
| Document: | CE-Two station spin caoting...ne.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Coating Cost: | Low Cost | Product Size: | Diameter 350-420mm |
|---|---|---|---|
| Coating Safety: | High Safety | Coating Method: | Spray Coating / Roller Coating |
| Package: | Wooden Case | Coating Area: | Pulp Molded Product Inside |
| Applicable Industries: | Manufacturing Plant | Coating Material: | Water-based Coatings |
| Highlight: | dual-station spin coater for pulp molding,high-output spin coater for barrier coating,pulp molded tableware coating machine |
||
Product Description

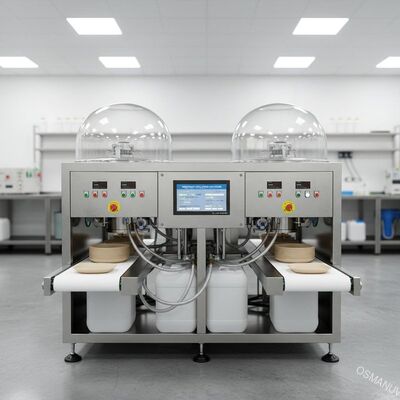

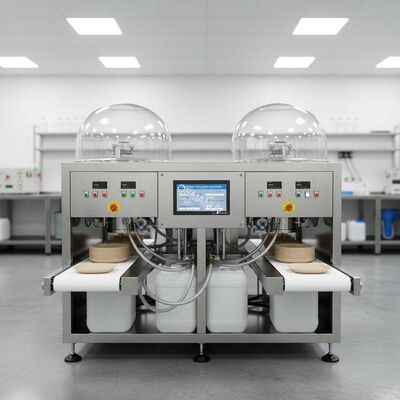

High-Output Dual-Station Spin Coater for Water/Oil Barrier Coating of Pulp Molded Tableware
Production Line Overview
This semi-automated, compact line is centered around the dual-station coater for efficient batch processing:
- Manual/Robotic Loading Station: Operators or robotic arm place pulp products onto rotating chucks

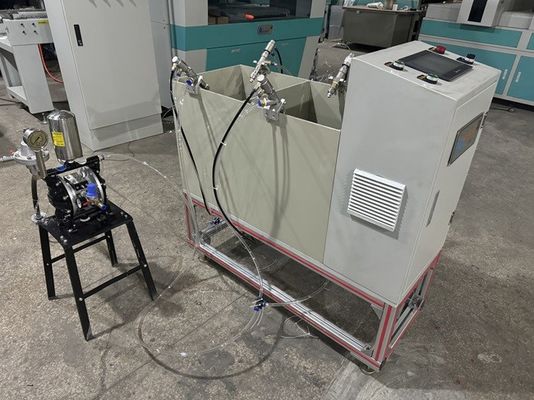

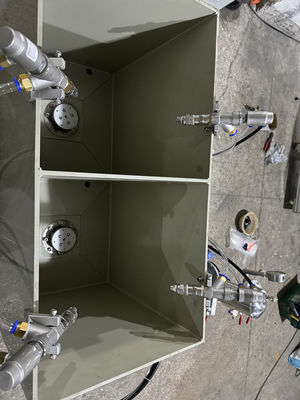

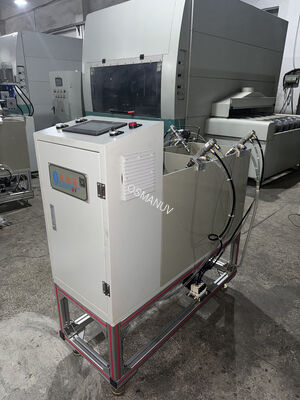

- Dual-Station Spin Coating Unit: Core assembly with two independent high-speed rotary chucks and precision dosing systems
- Integrated Drying Rack or Conveyor (Optional): Timed conveyor or rotating rack for drying/curing area transfer

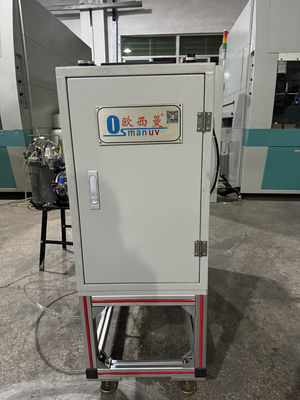

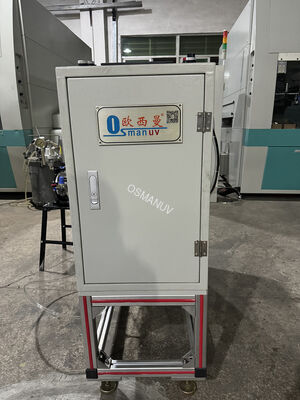

- Control Cabinet with HMI: Centralized control panel for operating both stations and managing parameters
Product Description
Our Dual-Station Spin Coater is engineered for high-efficiency application of internal barrier coatings on pulp molded tableware. Two independently controlled workstations allow continuous operation - one station can be loaded/unloaded while the other actively coats, dramatically reducing idle time and maximizing output. Precision servo-controlled spinning and dosing ensure uniform, pinhole-free film application with exceptional material utilization and repeatability.
Technical Specifications
| Category | Parameter | Specification / Description |
|---|---|---|
| Core Capacity | Number of Work Stations | 2 Independent Stations |
| Production Capacity (Theoretical) | Customizable, typically 15-30 cycles/station/hour | |
| Mechanical Specs | Chuck Size (Max. Product Dia.) | Customizable (Standard: Ø300mm) |
| Rotation Speed Range | 100 - 3,000 RPM (programmable per station) | |
| Machine Footprint (L*W) | Customizable (Approx. 2500mm x 1800mm) | |
| Coating & Control | Dosing System | Independent servo-driven pumps per station |
| Coating Weight Control | Programmable, customizable pump volume and spin parameters | |
| Electrical & Utility | Power Supply | 220V / 380V, 50/60Hz (Customizable) |
Applications
- Internal Barrier Coating: For pulp-molded plates, bowls, food trays, and clamshell containers
- Coating Types: Waterproof/oil-proof coatings including Polyethylene (PE), Polylactic Acid (PLA), and PFAS-free aqueous dispersions
- Industry: Manufacturers of disposable eco-friendly foodservice packaging and supermarket fresh food containers
Customization Options
- Chuck Design & Tooling: Custom machined chucks and fixtures for specific product shapes
- Dosing & Spin Profiles: Fully customizable rotation speed, acceleration, and dwell time profiles
- Integration Options: Customized for automated loading robots or specific drying conveyor systems
- Safety & Enclosure: Optional safety interlock enclosures with extraction vents
Key Features
- Dual-Station Efficiency: Eliminates waiting time, significantly boosting output per operator
- Independent Control: Each station operates independently for different product recipes
- Precision & Consistency: Servo-controlled motion ensures repeatable coating thickness
- Material Efficiency: Spin coating offers >90% material transfer efficiency
- User-Friendly Operation: Intuitive touchscreen interface for easy recipe management
Support and Services
- Process Consulting: Parameter setting and coating compatibility assessment
- Installation & Training: On-site installation, calibration, and comprehensive operator training
- After-Sales Support: 12-month warranty, lifetime technical consultation, and spare parts availability
Frequently Asked Questions
Q1: What is the main advantage of a dual-station over two single-station machines?
A: A dual-station machine shares one control system, one frame, and often one operator, resulting in lower total investment, smaller footprint, and higher operational efficiency due to reduced waiting time between cycles.
Q2: How uniform is the coating on deep and complex shapes like bowls?
A: For complex 3D shapes, we offer customizable multi-axis tilt or orbital spin chucks (as an option) to ensure the coating liquid reaches all internal surfaces evenly. Standard chucks are best for shallower shapes like plates and trays.
Q3: How quickly can we change over between different products?
A: Changeover is rapid. The operator simply calls a different pre-saved recipe on the HMI and changes the physical chuck fixtures. With quick-release chucks, this can be done in minutes.
Q4: Can this machine apply coatings to the external surface as well?
A: The standard configuration is for internal coating. For external coating, a different chuck design and drip-collection system would be required, which can be discussed as a customization.
Q5: Do you provide samples coated with our own products?
A: Yes. We offer a sample coating service. You can send us your pulp products and target coating material, and we will run trials and provide a process report and coated samples for your evaluation.
