Fully-Automated Spin Coating Line for Molded Pulp Product Interiors | For Efficient Water/Oil-Resistant Coating on Food Containers & Trays
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-XT-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Substrate: | Fiber Cement Board | Lamp Type: | Carbon Fiber Type |
|---|---|---|---|
| Spray Room: | 304 Stainless Steel | Applicable Industries: | Manufacturing Plant |
| Automatic Grade: | Automatic,Semi-Automatic,yes | Dimension: | As Customer Requirement |
| Packing: | Standard Wooden Case | Machine Type: | Coating Machine |
| Highlight: | fully-automated spin coating line,molded pulp product coating machine,water-resistant food container coating system |
||
Product Description

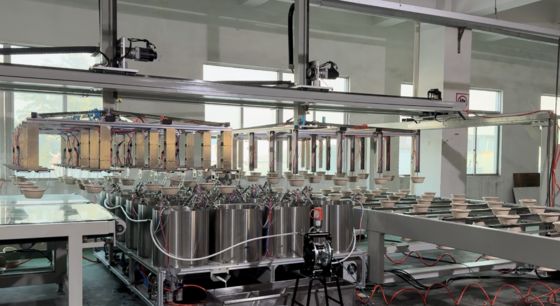

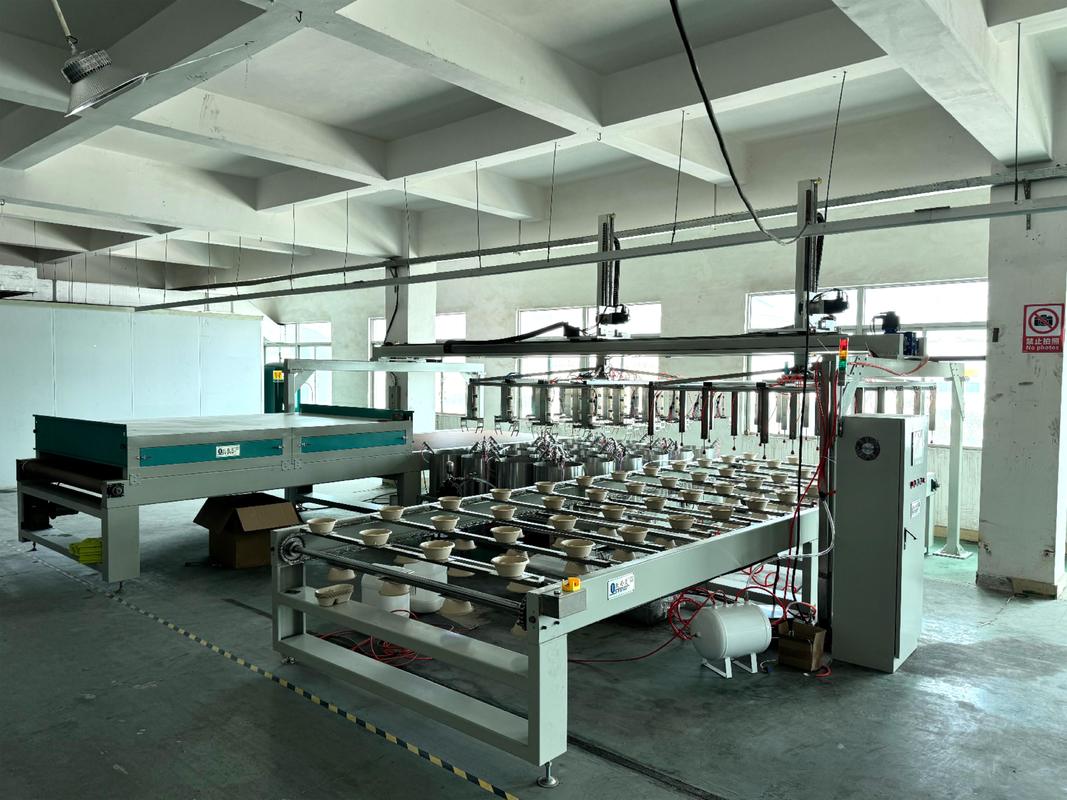

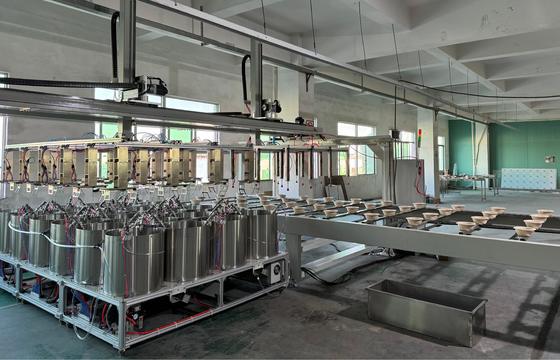

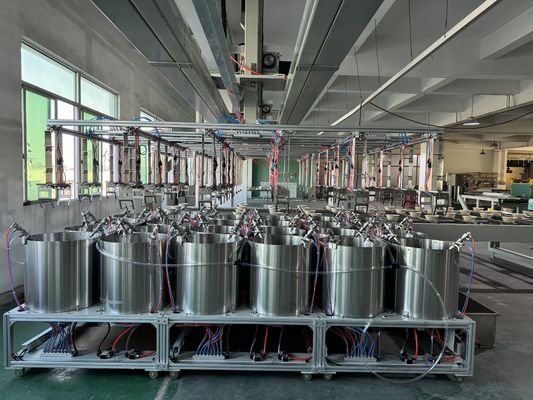

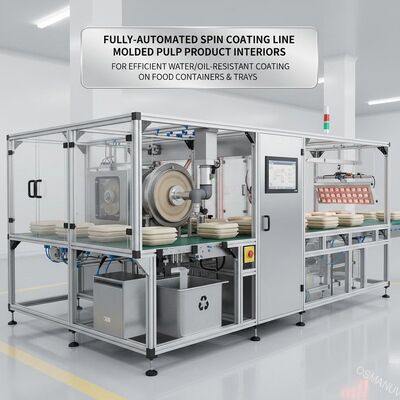

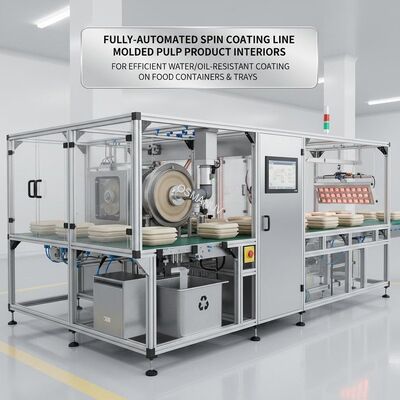

This fully-automated spin coating line comprises several integrated stations: an automatic feeding & orientation unit, an infrared/thermal pre-conditioning zone (optional for moisture control), the core multi-station spin coating turntable, a transfer conveyor, a vertical drying/curing tunnel (IR or UV), and a stacking/unloading unit. PLC controls synchronize the entire process.
This automated spin coating production line is specifically engineered for applying uniform, high-performance functional coatings (e.g., water-resistant, oil-resistant, barrier coatings) to the internal surfaces of molded pulp products like food containers, trays, and packaging. It ensures consistent film thickness, maximizes material utilization, and achieves high throughput for mass production, significantly enhancing product performance and quality consistency.
| Parameter Category | Specification |
|---|---|
| Model | SCL-PM-1300A (Standard) |
| Production Capacity | Up to 15-25 cycles per minute (depending on product size and drying time) |
| Applicable Product Size (L × W × H) | Max. 400mm × 300mm × 150mm [Customizable] |
| Coating Method | Precision multi-head dispensing or spray followed by high-speed spinning |
| Spin Speed Range | 100 - 3000 RPM (programmable per station) |
| Drying/Curing Method | Infrared drying or UV curing tunnel [Customizable] |
| Control System | Industrial PLC with Touchscreen HMI, storing multiple recipes |
| Overall Line Dimensions (approx.) | 15000mm (L) × 3000mm (W) × 2200mm (H) [Customizable] |
| Total Installed Power | Approx. 60-100 kW (varies with configuration) |
| Power Supply | 380V / 50Hz / 3Phase |

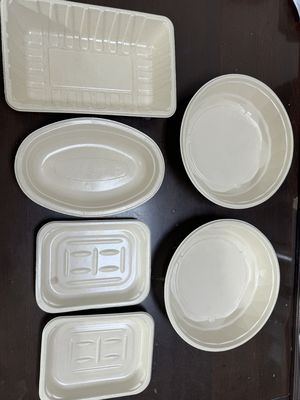

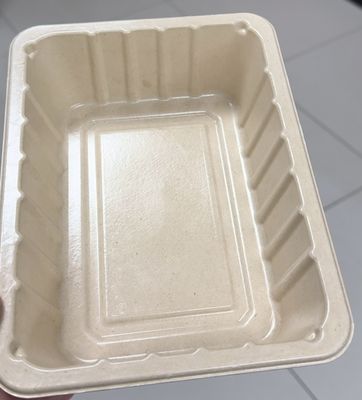

Designed for applying functional interior coatings to a wide range of molded pulp products:
- Food service ware (plates, bowls, clamshells)
- Egg trays and cartons
- Fruit and electronic packaging trays
- Any pulp product requiring internal moisture or grease resistance
We offer highly customizable solutions to match your specific products and output goals. Key customizable elements include:
- Number and layout of spin stations
- Fixture design for your unique mold shapes
- Coating application system (for specific viscosity)
- Integration with specific drying/curing technologies
- Line speed and automation level
- Uniform Interior Coating: Ensures consistent, pinhole-free film coverage on complex 3D interior surfaces, crucial for barrier performance
- High Efficiency & Low Waste: Automated, enclosed process minimizes coating material waste (overspray) compared to manual spraying, reducing VOC and cost
- Exceptional Consistency: Eliminates human variability, ensuring every product meets the same high-quality standard
- Seamless Integration: Designed to connect with upstream molding and downstream packaging lines for a continuous workflow
- Data-Driven Process: Recipe control and data logging enable precise process repeatability and traceability
- On-site installation supervision, commissioning, and comprehensive operator training
- One-year warranty on the entire system, with extended support plans available
- Lifetime access to technical documentation and remote support
- Partnership for providing process optimization and spare parts
The line is modularized. Key modules are disassembled and securely packed in heavy-duty, weatherproof wooden crates. All crates are clearly marked for easy identification and assembly. Shipping terms (FOB, CIF, etc.) are negotiable. Lead time is typically 14-16 weeks after final design confirmation.
