Customizable Coating Prototyper | For Internal Surface Spraying and Performance Evaluation of Pulp Molding Products

Customizable Coating Prototyper | For Internal Surface Spraying and Performance Evaluation of Pulp Molding Products
Customizable Coating Prototyper | For Internal Surface Spraying and Performance Evaluation of Pulp Molding Products Product Overview This single station spin coating machine serves as a key R&D and pilot-stage unit, simulating the coating process in a compact, standalone workstation. It enables ...
Place of Origin:China
Brand Name:OSMANUV
Certification:CE/ISO9001
Model Number:OSM-XT-450T
Minimum Order Quantity:1 Set
Price:Negotiation
Product Custom Attributes
Highlight

customizable pulp molding coater

,

internal surface spraying machine

,

pulp molding performance evaluator

Model:
OSM-XT-450T
Electric Box:
Independent Electric Box
Heating Source:
Electric IR Heating
Paint Useage Pertage:
100%
Power Supply Voltage:
380V, 50HZ, Three-phase Five-wire System
Burner:
Original Riello Burner; 2 Sets
Coating Automation:
High Automation
Rotating Speed:
Adjustable,1150 Rpm(max Speed)
Product Description
Customizable Coating Prototyper | For Internal Surface Spraying and Performance Evaluation of Pulp Molding Products
Product Overview

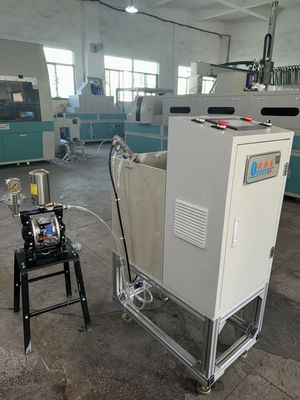

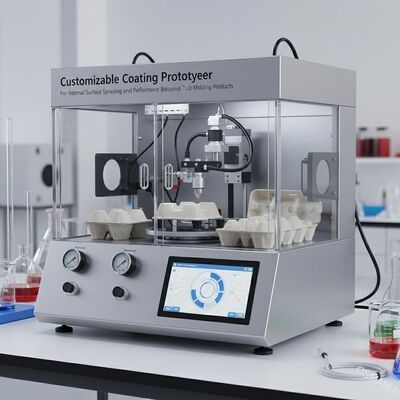

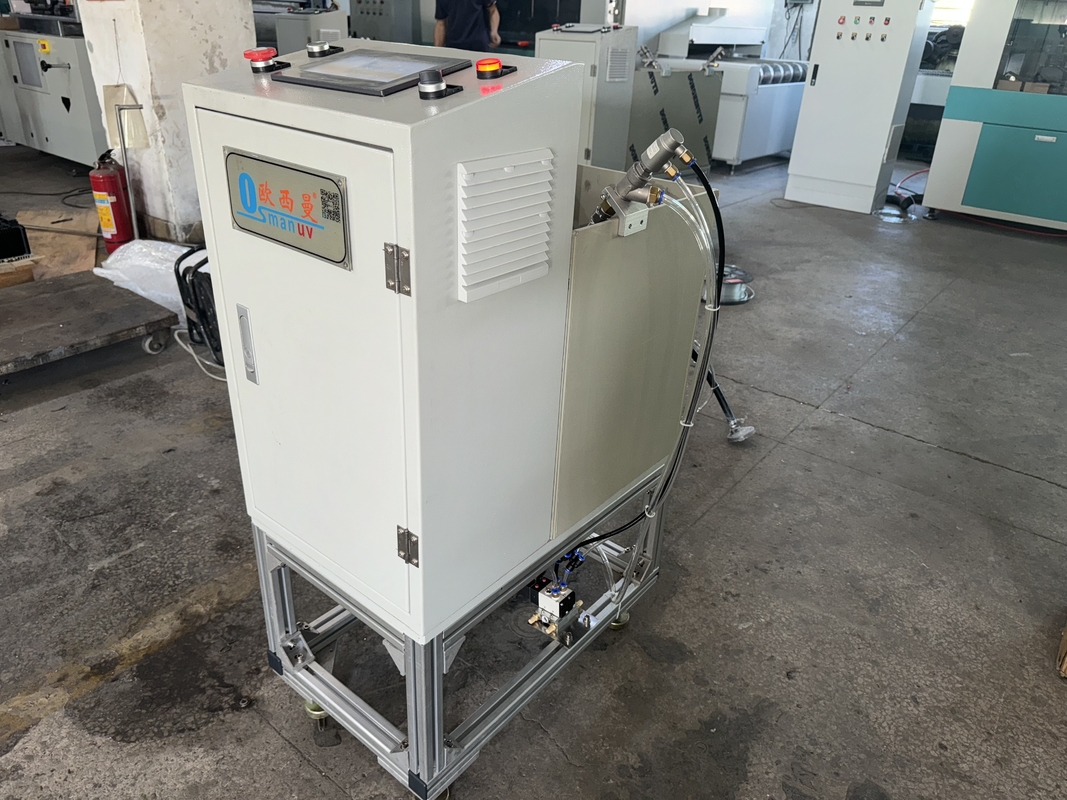

This single station spin coating machine serves as a key R&D and pilot-stage unit, simulating the coating process in a compact, standalone workstation. It enables formula testing and parameter optimization before full-scale production implementation.

Technical Specifications
Parameter Category Specification
Sample Stage Customizable vacuum chuck or fixture for pulp molds (Normal Size: up to 300mm dia. or square). Size is customizable.
Spin Speed Range 100 - 8000 RPM, programmable

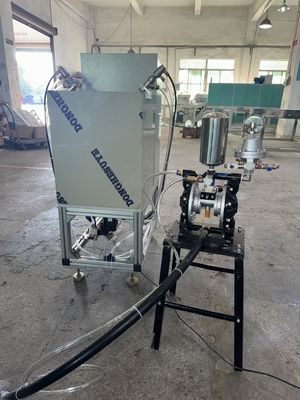

Coating Method Precise syringe dispensing or automated spray nozzle
Control System Digital touchscreen with programmable recipes (speed, time, acceleration)
Safety Integrated splash guard, emergency stop
Power Supply 110V/220V, 50/60Hz
Dimensions (approx.) 600mm (L) x 500mm (W) x 400mm (H)
Applications

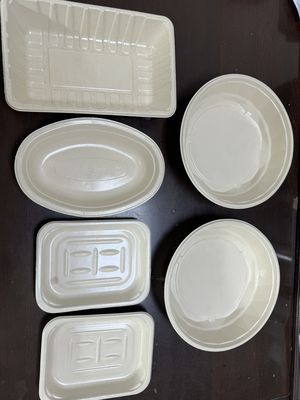

Ideal for R&D centers, quality control labs, and pulp molding plants to test coating formulas for:

  • Food-grade barrier coatings (oil, water resistance)
  • Internal smoothness enhancement
  • Water repellency coatings
  • Color or functional coating adhesion
Customization Options

We offer extensive customization options to match your specific R&D needs, including:

  • Custom sample holders for unique pulp mold shapes
  • Integration of specific dispensing or spray systems for your coating material
  • Tailored software programming for your process sequences
Key Features & Advantages
  • Precision & Repeatability: Ensures consistent, uniform coating layers for reliable comparative testing
  • Formula Screening: Rapidly test and compare different coating materials on small samples, saving cost
  • User-Friendly: Intuitive interface allows for quick setup and operation by lab technicians
  • Compact Design: Saves valuable bench space in laboratory settings
  • Customizable Solutions: Adaptable to a wide range of pulp mold geometries and coating viscosities
Support & Services
  • Comprehensive installation and operational training via video guide
  • One-year warranty on parts and labor
  • Lifetime technical support and access to application notes
Shipping & Delivery

The machine is securely packed in a plywood crate with foam cushioning to ensure safe transit. Shipping terms (EXW, FOB, CIF, etc.) can be negotiated based on customer location. Lead time is typically 4-6 weeks after order confirmation.

Frequently Asked Questions
Q: Can it handle irregularly shaped pulp molds?
A: Yes. The customizable fixture/chuck is designed specifically to hold your unique product shapes securely during spinning.
Q: What coating viscosities can be tested?
A: It can handle a wide range, from thin solutions to thicker pastes. The dispensing system or spray head can be customized for optimal results with your material.
Q: Is training provided?
A: Yes, detailed operational video guides are provided, and online training sessions can be arranged.
