Precision High-Efficiency Single-Station Pulp Molding Spin Coater - Integrated Lining Solution

Precision High-Efficiency Single-Station Pulp Molding Spin Coater - Integrated Lining Solution
Precision High-Efficiency Single-Station Pulp Molding Spin Coater - Integrated Lining Solution This single-station spin coating machine is designed for high-speed, consistent application of internal barrier coatings (e.g., water or oil-resistant) on pulp molded products. It focuses on seamless ...
Place of Origin:China
Brand Name:OSMANUV
Certification:ISO9001
Model Number:OSM-XT-1320
Minimum Order Quantity:1 Set
Price:Negotiation
Product Custom Attributes
Highlight

single-station pulp molding coater

,

high-efficiency spin coater machine

,

pulp molding integrated lining solution

Doctor Wheel:
Chrome
Application:
Commodity
Coating Thickness:
Uniform Thickness
Type:
Coating Pilot Machine
Coating Precision:
High Precision
Coating Speed:
Adjustable
Electric Box:
Independent Electric Box
Feature:
Efficient
Product Description
Precision High-Efficiency Single-Station Pulp Molding Spin Coater - Integrated Lining Solution

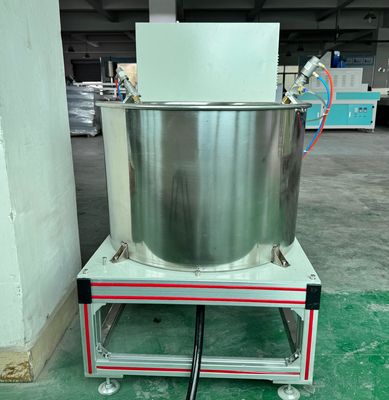

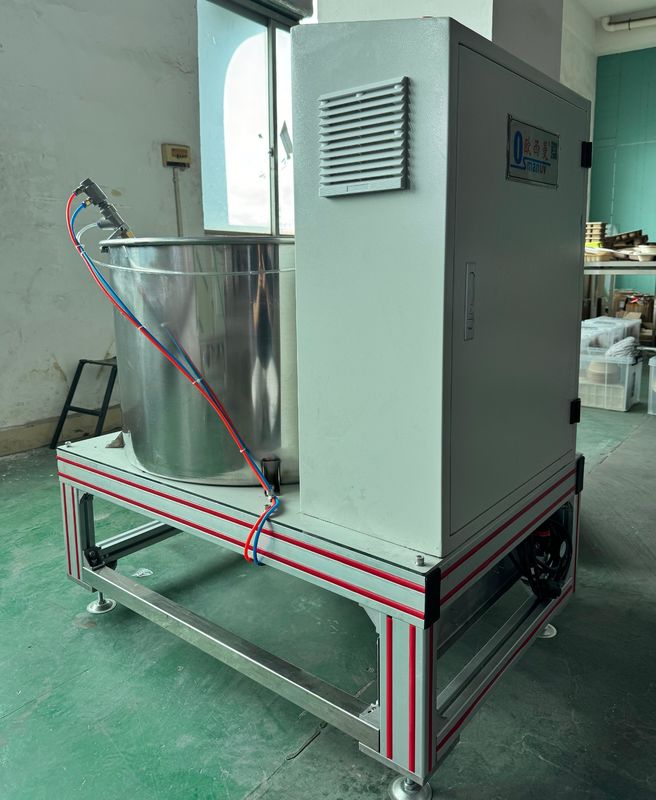

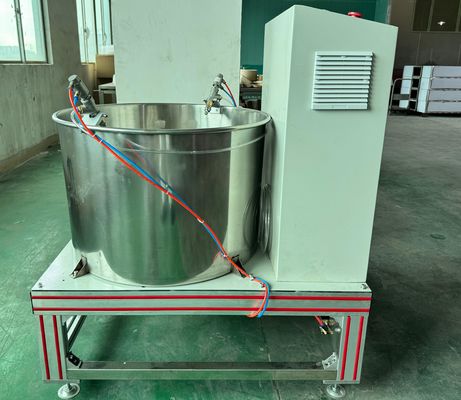

This single-station spin coating machine is designed for high-speed, consistent application of internal barrier coatings (e.g., water or oil-resistant) on pulp molded products. It focuses on seamless integration into existing production lines, maximizing throughput with minimal footprint and rapid cycle times for volume production.
Production Line Integration

Acts as a dedicated coating station within a full line:

  • Pulp Molding Machine
  • Hot Pressing & Drying Unit
  • This Single-Station High-Speed Spin Coater
  • High-Efficiency Curing Tunnel
  • Automated Trimming & Inspection System
  • Automated Stacking and Packaging Unit
Technical Specifications
Parameter Category Specification Details / Customizable Options
Station Type Single-Station, High-Speed Rotary Designed for quick integration into conveyor lines
Cycle Time < 15 seconds (typical) Optimizable for line synchronization; customizable timing programs
Holding Fixture Quick-Change Mandrel Customizable mandrel design for specific product interior geometry
Coating Volume 100-2000ml per cycle Precision dosing pump; volume is fully adjustable and customizable
Spin Speed Range 200 - 3500 RPM High-torque motor for rapid acceleration/deceleration
Control System Industrial PLC & Large HMI Stores hundreds of recipes; Ethernet connectivity for line integration
Power Requirements 380V/50Hz/3Phase (Standard) Can be customized to 480V/60Hz or other specifications
Pneumatic Supply 0.6 - 0.8 MPa
Dimensions (LxWxH) 1400 x 1300 x 1600 mm Layout can be optimized for your specific line configuration
Construction Stainless Steel 304 & Anodized Aluminium
Applications

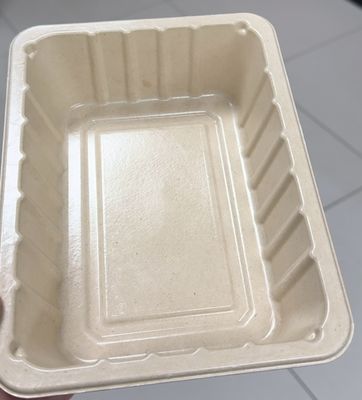

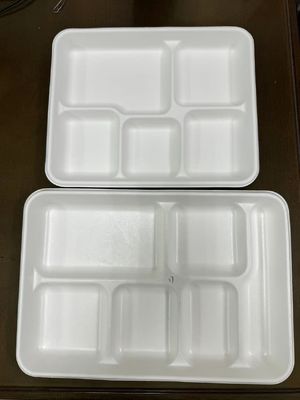

  • High-volume production of coated food containers (clamshells, takeaway boxes, plates)
  • Disposable tableware requiring uniform internal moisture barrier
  • Standardized industrial pulp packaging components
Key Features
  • Rapid-Cycle Design: Engineered for high-production environments
  • Line Integration Ready: Standardized I/O for easy connection to upstream/downstream automation
  • Precision Dosing: Minimizes coating waste, reduces operational cost
  • Quick-Change Tooling: Fixtures can be swapped in under 2 minutes
  • Data Logging: Optional connectivity for production monitoring (OEE, output counts)
Customization Options
  • Tailored integration design for your specific conveyor height and control system
  • Custom quick-change fixture kits for multiple product families
  • Specialized pump and fluid path materials for aggressive coating chemistries
  • Custom color and branding of the machine enclosure
Support and Services
  • Line Integration Planning Support
  • On-Site Installation & Synchronization with your production line
  • Comprehensive Training for Maintenance & Tooling Changeover
  • Priority Spare Parts Service Plan (Optional)
  • Remote Diagnostic Support
Packing and Shipping
  • Standard export wooden crate, weather-protected
  • Clear internal packaging for easy parts identification upon arrival
  • Custom packing and labeling per customer request
  • Shipping terms: FOB, CIF, or DDP negotiable
Frequently Asked Questions
Q1: What is the maximum output per hour this machine can achieve in a line?
Output depends on product size and curing time. With a typical 15-second cycle, it can process ~240 pieces/hour. The system is customizable to achieve higher speeds with specific parameters.
Q2: How is it connected to a drying tunnel?
It features standardized exit conveyors or transfer mechanisms. The interface is customizable to match the inlet of your specific curing/drying system for smooth hand-off.
Q3: Are the control protocols compatible with our factory SCADA?
Yes. It supports standard communication protocols (e.g., Modbus TCP). The data points for integration can be customized during the order process.
