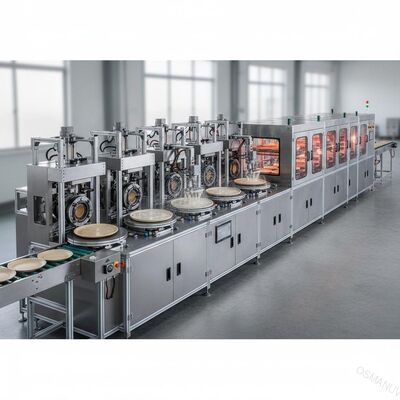

12-Station Pulp Molding Spin Coating Line for Bagasse Tableware Coating and Drying Integrated Production System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-XT-1020T |
| Document: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | WOOD PACKAGING |
| Delivery Time: | 50 days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Product Name: | 12-station Spin Coating Line | Dimensions(l*w*h): | 3500*1020*1080mm, Can Be Customized |
|---|---|---|---|
| Voltage: | 220V,220V/50HZ,AC 100V-240V,50/60HZ,1.6A Maximum | Driven Type: | Electric,Manual |
| Automatic Grade: | Automatic,Semi-Automatic | Condition: | New |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,No Overseas Service Provided,Online Support,Field Maintenance And Repair Service |
Product Description
12-Station Pulp Molding Spin Coating Line for Bagasse Tableware Coating and Drying Integrated Production System
Composition of the Production Line
-
Automatic loading conveyor
-
12-station rotary indexing table
-
Precision spin coating units
-
Infrared pre-drying zone
-
Hot air circulation drying tunnel
-
Cooling section
Product Description
12-station integrated spin coating line is specifically designed for coating and drying pulp molded products made from bagasse and other plant fibers. The system combines precision spin coating technology with efficient thermal drying to achieve uniform coating distribution and rapid curing, making it ideal for high-volume production of eco-friendly tableware and food packaging.
Technical Parameters
| Parameter Category | Specification |
|---|---|
| Model | OSM-XT-1020T |
| Suitable Materials | Bagasse, Wheat Straw, Plant Fibers |
| Number of Stations | 12 stations |
| Coating Method | Precision Spin Coating |
| Drying System | IR heating |
| Maximum Product Size | Ø500× H100 mm |
| Production Capacity | 600-800 pcs/hour |
| Power Supply | 380V/3Phase/50Hz |
Application
Coating and drying of pulp molded tableware, food containers, and packaging products made from bagasse and agricultural waste materials.
Customization
-
Customizable station configuration
-
Customizable drying temperature range
-
Customizable coating thickness control
Feature
-
Integrated coating and drying process
-
High production efficiency
-
Uniform coating distribution
-
Energy-saving drying system
Support and Services
-
Installation and commissioning
-
Operator training program
-
Technical support hotline
-
Preventive maintenance plans
Packing and Shipping
-
Weatherproof wooden crates
-
Shock-absorbent packaging
-
Professional export packaging standards
FAQ
Q: What is the production capacity per hour?
A: The line can produce 600-800 pieces per hour depending on product size and coating requirements.
