Spin Coating Line for Eco-Friendly Tableware | Precision Internal Coating Solution
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | ISO9001 |
| Model Number: | OSM-XT-2400T |
| Document: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Machine Model: | ZP-1300# | Substrate: | Fiber Cement Board |
|---|---|---|---|
| Embellishment: | Spot UV , Texture , Sandy Effect | Maximum Speed: | 5000p/hour |
| Cooling Way: | Air Cooling | Coating Qty: | 10~16g/sqm |
| Light Source: | UV Light | Conveyor Belt Material: | Teflon |
| Highlight: | eco-friendly tableware spin coating line,precision internal coating solution,pulp molding coating machine |
||
Product Description

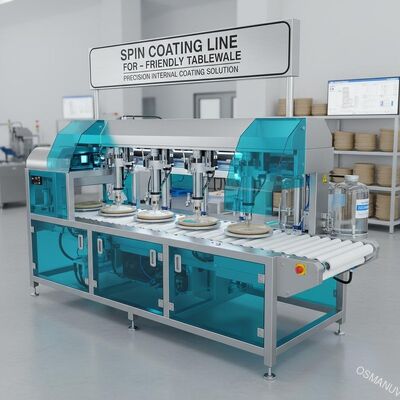

Spin Coating Line for Eco-Friendly Tableware | Precision Internal Coating Solution
1. Composition of Production Line

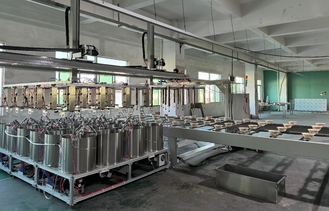

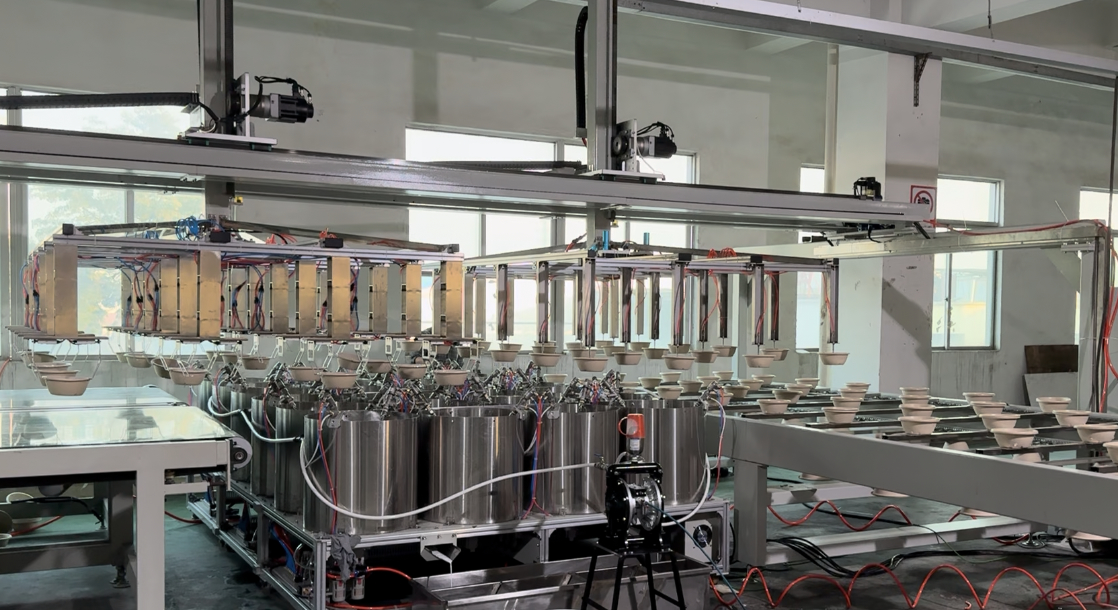

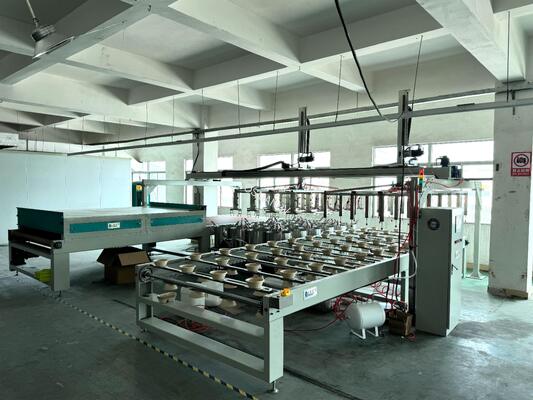

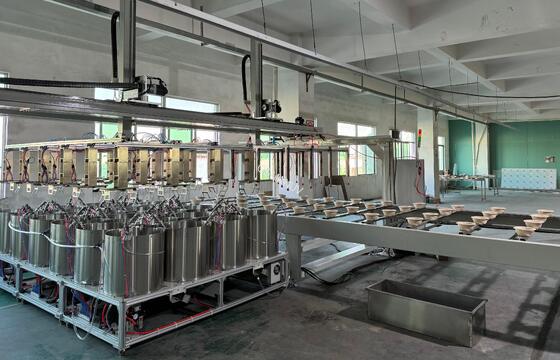

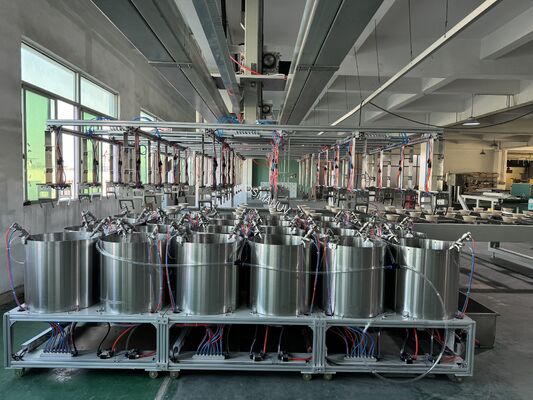

This automated line includes: an automatic feeding system, precision spin coater, transition conveyor, multi-stage drying tunnel (IR + hot air), cooling section, and off-loading robotic arm.
2. Product Description
Our precision spin coating line is specifically engineered for applying uniform water-based barrier or release coatings to the interior of green tableware (e.g., molded pulp, bagasse, PLA). It ensures a consistent, pinhole-free film thickness, enhancing product performance for liquid and oil resistance.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | SC-GT100 (Standard Model, Customizable) |
| Coating Type | Aqueous-based coatings (Barrier, Release) |
| Substrate | Molded Pulp, Bagasse, PLA, Paper |
| Coating Uniformity | ±2% film thickness deviation |
| Production Capacity | Up to 30 cycles per minute (Customizable) |
| Control System | PLC + Touch Screen HMI with recipe storage |
| Power Supply | 380V / 50Hz (3 Phase) or Customizable |
4. Application

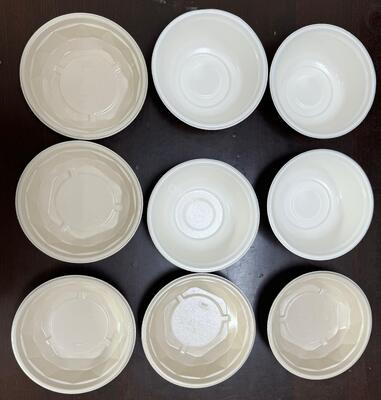

Ideal for applying moisture and oil barriers to plates, bowls, and food containers made from sustainable materials.
5. Customization
We offer fully customizable solutions. The spin coater chuck size, drying tunnel length, and automation level can be tailored to your specific plate dimensions and output targets.
6. Feature
-
High-precision servo-driven spin coater for unmatched film consistency.
-
Patented fixturing to minimize coating splatter and waste.
-
Energy-efficient multi-zone drying for optimal film formation.
-
Minimal coating material consumption due to precise application.
7. Support and Services
We provide installation & commissioning, operational training, and a 12-month warranty. 24/7 technical support is available.
8. Packing and Shipping
The machine is packed in a weather-proof wooden case for safe sea or air freight. All parts are clearly marked for easy reassembly.
9. FAQ
-
Q: What is the minimum film thickness achievable?
-
A: The system can reliably achieve thin films down to 5-10 microns, depending on the coating viscosity.
-
-
Q: Can it handle different plate sizes on the same line?
-
A: Yes, with quick-change tooling and stored PLC recipes, changeover between sizes is fast and simple.
-
