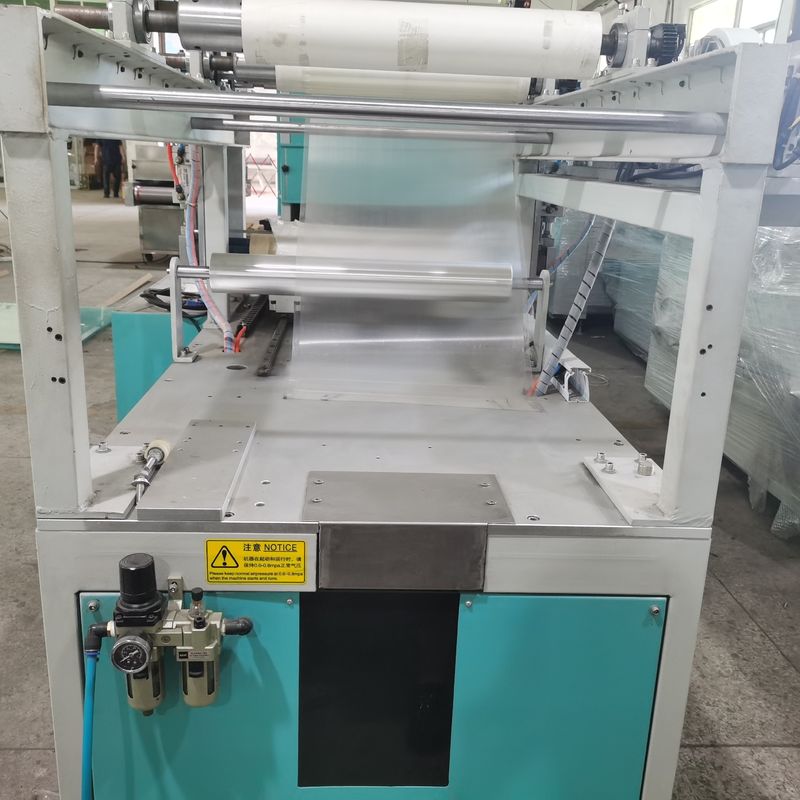

High-Speed Automatic Laminating Line for Furniture Panels - Precision Coating Solution
Product Details:
| Place of Origin: | China |
| Brand Name: | Osmanuv |
| Certification: | CE |
| Model Number: | OSM-FM-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Packing: | Standard Wooden Case | Dosing Roller: | 164mm*1450mm |
|---|---|---|---|
| Die Head: | Adjustable | Core Components: | Engine, Motor |
| Belt Qty: | 1/2/3 | Conveyor Belt: | Teflon Mesh Belt |
| Warranty: | 1 Year | Coating Method: | Scrap Coating |
| Highlight: | automatic laminating line for furniture,high-speed film laminating machine,precision coating laminating solution |
||
Product Description
High-Speed Automatic Laminating Line for Furniture Panels - Precision Coating Solution
Keywords: furniture panel laminating line, automatic coating machine, film laminating equipment, customizable coating system
Composition of Production Line:
Automatic feeding system, precision glue applicator, film unwinding station, hot press laminating unit, UV curing system, cooling section, trimming unit, stacking robot.
Product Description:
This fully automatic laminating line applies protective and decorative films to furniture panels (MDF, particleboard, plywood) with high precision and efficiency, ensuring perfect adhesion and surface quality.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Max. Panel Width | 1300-2500 mm (customizable) |
| Line Speed | 10-30 m/min (adjustable) |
| Glue Application | 50-300 g/m² (customizable) |
| Heating Power | 60-200 kW (configurable) |
| Control System | Siemens PLC + 15" HMI |
| Power Supply | 380V/50Hz/3Phase (customizable) |
| Accuracy | ±0.5 mm |
Application:
Decorative film lamination for furniture panels, door skins, wall panels, and interior decoration materials.
Customization:
Fully customizable panel width, glue type, heating system, and automation level to meet specific production requirements.
Feature:
-
Automatic thickness detection and adjustment
-
Energy-saving heat recovery system
-
Quick-change film rolls design
-
IoT-enabled production monitoring
Support and Services:
Installation supervision, operator training, 24/7 technical support, annual maintenance contracts.
Packing and Shipping:
Export-standard wooden crates, weather-proof packaging, professional logistics coordination.
FAQ:
Q: Can the line handle different panel thicknesses?
A: Yes, the system is customizable for various thicknesses from 2mm to 30mm.
