Single Station Automatic Precision Spin Coating Equipment For Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | CE |
| Model Number: | OSM-XT-700T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden package |
| Delivery Time: | Stock |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||

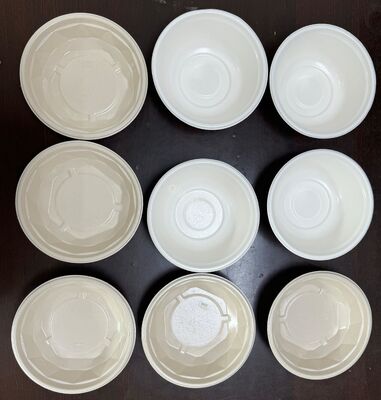

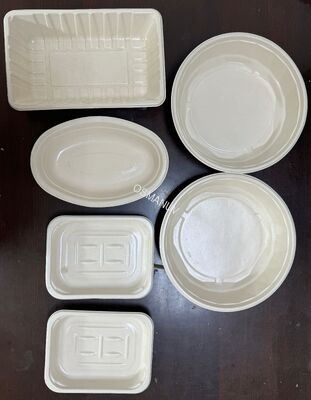

| Material: | Pulp | Production Efficiency: | 48 Bowls Or Plates / Min |
|---|---|---|---|
| Model: | OSM-XT-2400t | Max Coating Diameter: | 600mm |

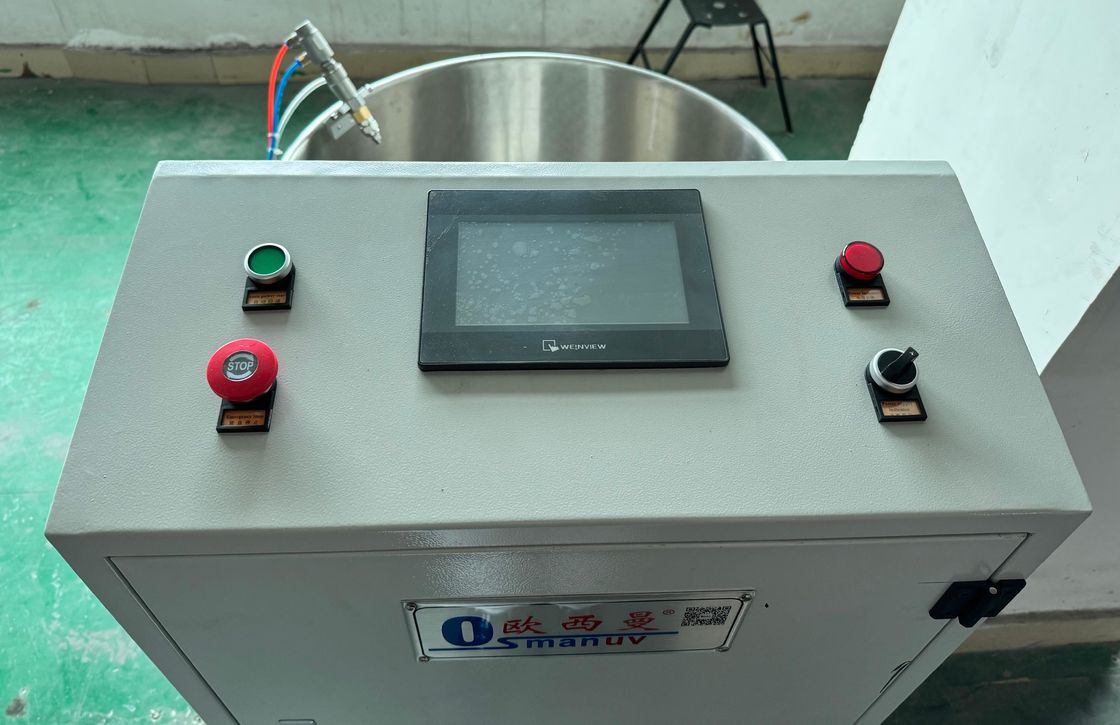

| Control Interface: | A 7-inch Nylon Touch Screen | Coating Reliability: | High Reliability |
| Power Consumption: | 15kW | Machine Size: | 5000mm*2000mm*2000mm |
| Coating Durability: | High Durability | Power: | 38kW |
| Slitting Thickness: | 2g/pcs~8g/pcs | Color: | Customized |
| Coating Thickness: | Uniform Thickness | Voltage: | 380V/50HZ |
| Automatic Grade: | Semi-Automatic | ||
| Highlight: | Single Station Spin Coating Equipment,Precision Automatic Spin Coating Equipment,Precision Industrial Spin Coating Equipment |
||
Product Description
Single-Station Automatic Spin Coating Machine OSM-XT-700T Precision Coating for Industrial Applications
Product Description

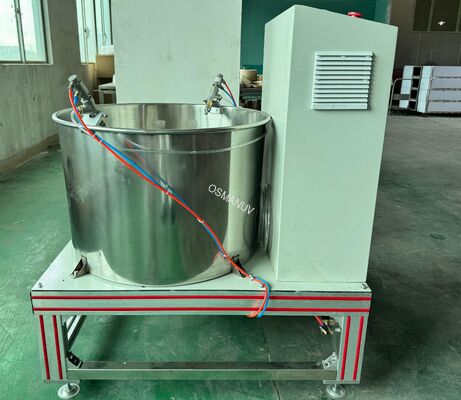

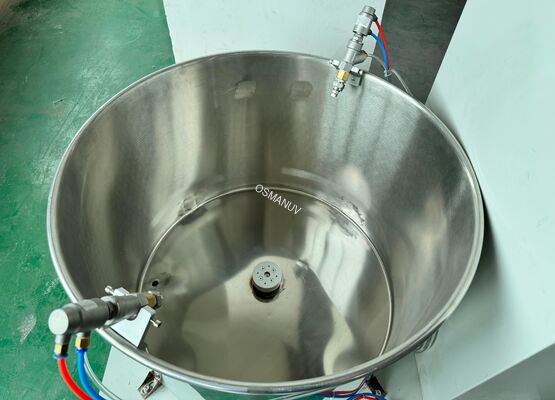

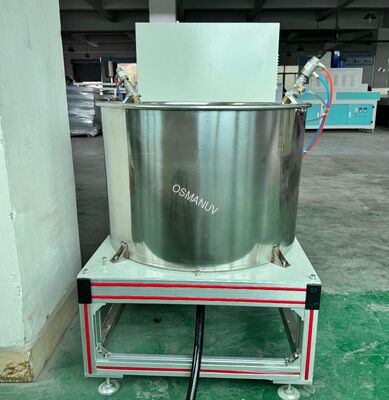

The OSM-XT-700T Single-Station Automatic Spin Coater is designed for high-precision coating applications, ensuring uniform film deposition on cylindrical objects with a 700mm inner diameter. Featuring a stainless steel spray chamber, servo-driven rotation system, and Taiwanese precision nozzles, this machine guarantees efficiency, durability, and consistent performance in demanding industrial environments.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-XT-700T |
| Dimensions (L×W×H) | 700×1130×1200 mm |
| Chamber Diameter | 700 mm |
| Spray Nozzle | Taiwan Zhiyuan Precision Nozzle |
| Rotation System | Servo Motor-Driven |
| Pump System | Pneumatic Diaphragm Pump with Oil-Gas Stabilization |
| Electrical Components | CINT Contactors, Mitsubishi/Siemens Motors, Japanese IZUMI Switches |
| Safety Features | Overheat Protection, Motor Overload Protection, Emergency Stop |
| Power Supply | 220V 60Hz, 500W |
| Air Supply | 6 kg/cm² (Customer-Provided) |
| Weight | Net: 100 kg / Gross: 123 kg |
Application
-
Automotive Parts: Uniform coating for cylindrical components.
-
Industrial Pipes: Protective and decorative coatings.
-
Electronics: Conductive/resistive film application.
Customization
-
Adjustable rotation speed & spray pattern.
-
Custom nozzle configurations for different viscosities.
-
Optional PLC integration for automated process control.
Feature Highlights
✔ Precision Coating – Servo motor ensures stable rotation for uniform film thickness.
✔ Durable Construction – Stainless steel chamber resists corrosion.
✔ Energy-Efficient – Low power consumption (500W).
✔ Safety Compliant – Meets international electrical standards (CE/UL).
Support and Services
-
1-year warranty on mechanical parts.
-
Remote troubleshooting & on-site training available.
-
24/7 customer support via 400-666-2388.
Packing and Shipping
-
Wooden crate packaging (FOB Dongguan).
-
Anti-rust treatment for long-distance transport.
FAQ
-
Q: What is the max viscosity supported?
A: Up to 5000 cP (custom nozzles available for higher viscosities). -
Q: Can it coat non-cylindrical objects?
A: No, this model is optimized for 700mm-diameter cylinders. -
Q: Is the spray chamber easy to clean?
A: Yes, it includes a water-based cleaning system (customer-provided water source). -
Q: What’s the lead time for customization?
A: 4–6 weeks after technical confirmation. -
Q: Does it support multi-layer coating?
A: Yes, via programmable settings (optional PLC upgrade).
