Versatile Doctor Blade Coating Machine for Composite Panels - XPS, Gypsum, Cement Board
Product Details:
| Place of Origin: | China |
| Brand Name: | OSMANUV |
| Certification: | ISO9001 |
| Model Number: | OSM-GT-1320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 30~45 Days |
| Payment Terms: | T/T |
| Supply Ability: | Negotiation |
|
Detail Information |
|||
| Conveying Speed: | 1-10m/min | Coating Thickness: | 3-200mm |
|---|---|---|---|
| Voltage: | 380V/50HZ, Can Be Adjustable | Single Class Capacity: | 1.5 Piece/min |
| Coatingthicknessrange: | 5-200 Microns | Effective Leveling Width: | 1320mm |
| Packaging Material: | Wood | Colour: | Computer White + Grass Green |
Product Description

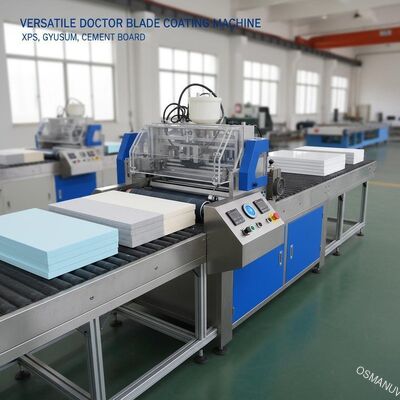

Versatile Doctor Blade Coating Machine for Composite Panels - XPS, Gypsum, Cement Board
Content:

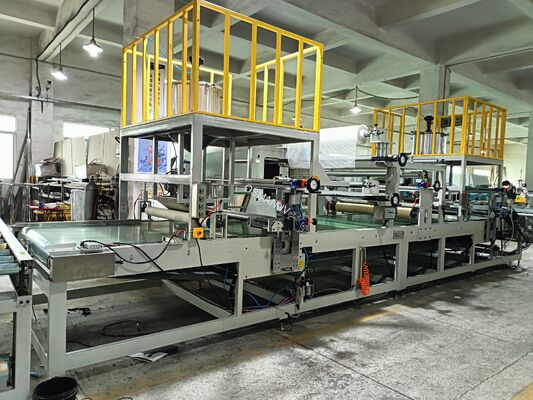

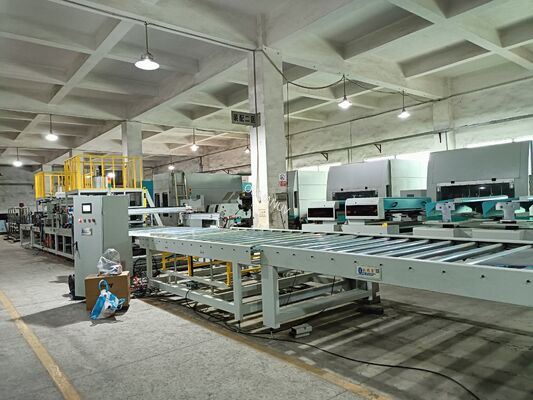

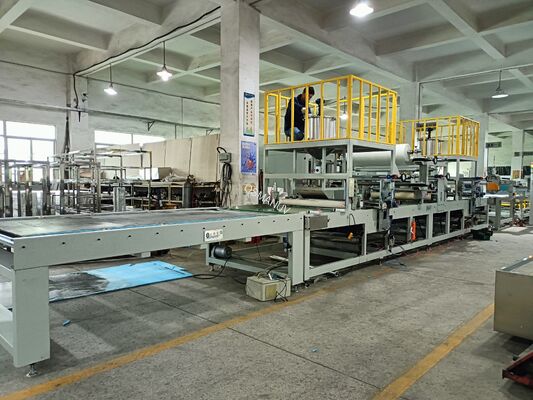

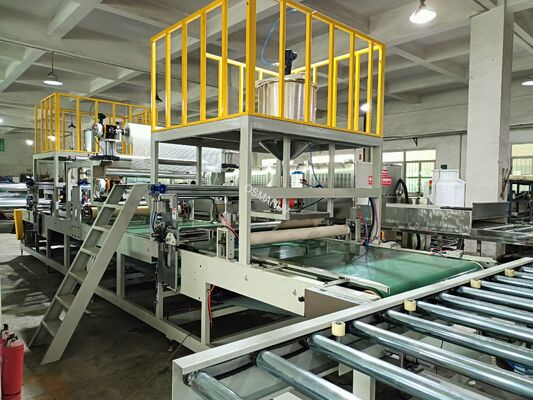

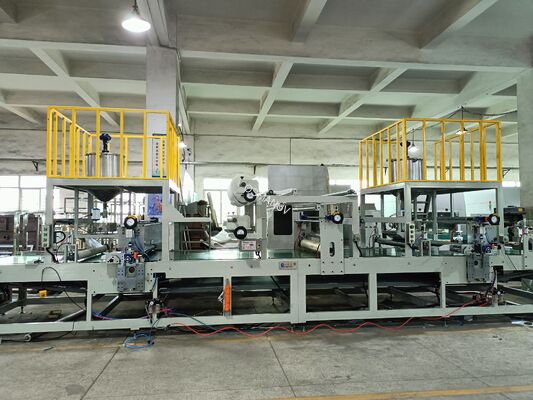

Composition of Production Line:

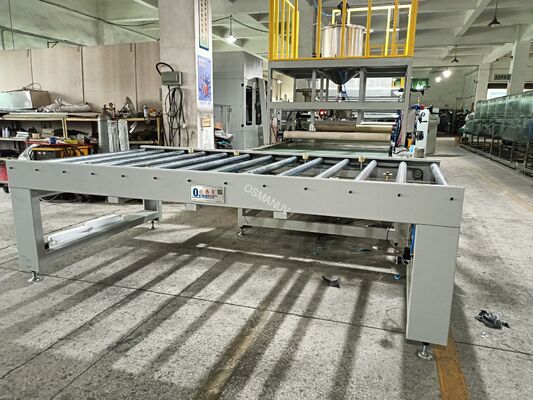

A flexible coating solution featuring a board infeed conveyor, a precision doctor blade coating station with automatic gap adjustment, a short-wave IR pre-gel zone, a multi-stage drying tunnel, and a turnover/stacking unit. The line’s versatility is a result of its highly customizable core components.
Product Description:
This versatile doctor blade coating machine delivers a perfectly smooth and controlled film application on a variety of rigid panels, including XPS/EPS, gypsum, and fiber cement boards. Its precision is key for applying thin, high-performance functional coatings and primers.
Technical Parameters:
| Parameter | Specification | Notes |
|---|---|---|
| Max. Substrate Thickness | Up to 100mm | With adjustable support bed |
| Coating Wet Film Thickness | 100 - 2000 microns | Micrometer precision adjustment |
| Line Speed | 1 - 15 meters/min | Optimized for high-viscosity coatings |
| Blade Material | Carbide, Polyurethane, Steel | Customizable per coating abrasiveness |
| Drying Heat Source | Electric, Gas, Steam | Choice is customizable |
| Control Interface | User-friendly Touch Screen PLC | Multi-language support |
| Machine Footprint | Compact, linear design | Layout can be customized |
Application:
Suitable for manufacturers producing a range of composite construction panels requiring a uniform base coat, such as insulated render carrier boards, exterior insulation finishing system (EIFS) boards, and coated interior panels.
Customization:
Core customization options include the coating width, blade type and hardness, substrate support mechanism, and the integration of a reverse-roll applicator before the blade for filling textured surfaces.
Feature:
-
Exceptional film thickness control and surface finish quality.
-
Robust construction for heavy-duty, continuous operation.
-
Easy-clean design with quick blade release.
-
Low operating cost and minimal maintenance requirements.
Support and Services:
We offer process consultancy, spare parts kits, video call troubleshooting support, and regular software updates for the control system.
Packing and Shipping:
Export-standard seaworthy packing. All electronic components are moisture-sealed. Detailed assembly diagrams are included with each shipment for easier on-site erection.
FAQ:
-
Q: Can this machine apply highly filled cementitious slurries?
A: Absolutely. The doctor blade system is ideal for high-viscosity materials. We recommend specific blade materials and angles as part of the customization process. -
Q: How easy is it to changeover between different board widths?
A: For frequent changeovers, we offer a customized system with automated side guide adjustment to minimize downtime. -
Q: What after-sales service is provided?
A: We provide a 12-month comprehensive warranty and lifetime technical support via email and phone.
